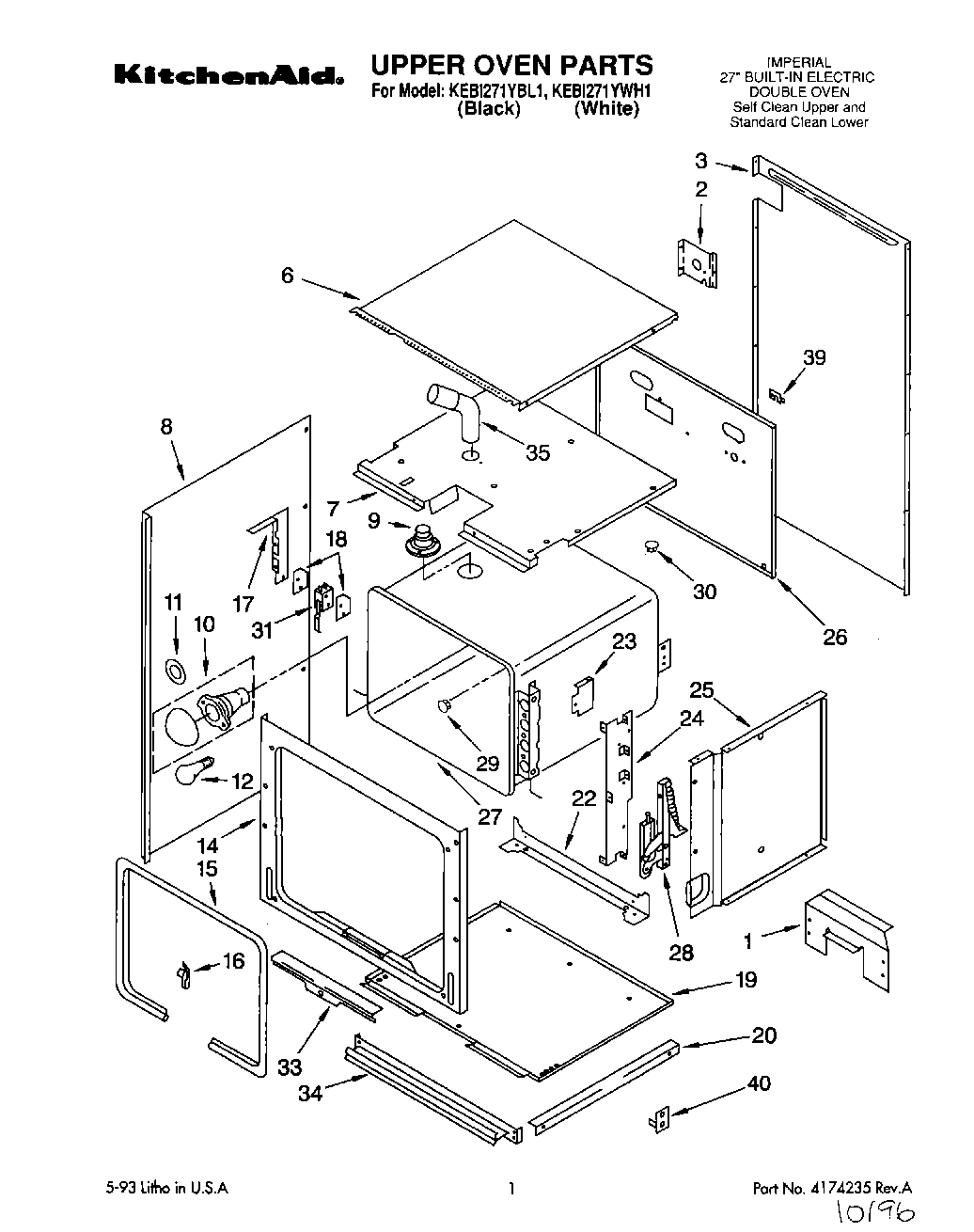

KEBI271YBL1 01 – UPPER OVEN, OPTIONAL

KEBI271YBL1 01 – UPPER OVEN, OPTIONAL

Written by

in

KEBI271YBL1 01 – UPPER OVEN, OPTIONAL

Products

Position	Product
1	WPL 3183752
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Screw (6)
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
26	Screw
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Screw (5)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Middle Trim (Black Model)
35	Tube, Vent
39	Cover, Cap Tube
39	Screw
40	WPL 350806
40	1
40	Wire (14 Ga. 200 c Brown)
40	18 Ga. 80~c Rating (Red)
40	Wire (14 Ga. 150 c Green)
40	Wire (12 Ga. 150 c Black)
40	Wire (14 Ga. 150 c Yellow)
40	Wire (14 Ga. 150 c Orange)
40	WPL 591014
40	WPL 832985
40	WPL 3171507
40	350930 Whirlpool White Spray Paint
40	Screw
40	350956 Whirlpool Spray Assembly
40	72017 Whirlpool Appliance Touch-Up Paint White
40	799344 Whirlpool Refrigerator Paint
40	WP72107 Whirlpool Touchup
40	Leveler (Thinner)
40	Almond (Uncut)
40	Golden Harvest (Uncut)
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Wire (14 Ga. 150 c Brown)
40	Wire (14 Ga. 150 c Blue)
40	WPL 72112
40	350942 Whirlpool Spray Paint
40	WPL 799832
40	Wire, 25` Roll (Black 14 Ga.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25“ Roll (White 14 GA.)
40	285006 Whirlpool Spray
40	72032 Whirlpool Touch Up Paint Black
40	Platinum (Uncut)
40	Enamal, Toast (1 Qt. Uncut)
40	Paint, Spray (13 Oz.) (Platinum)
40	Insert, Middle Vent Trim
40	WP261869 Whirlpool Microwave Paint
40	242831 Whirlpool Oven Wire
40	72113 Whirlpool Touch-Up Paint
40	Insulation, Back
40	Golden Harvest
40	Insulation, Oven
40	Toast
40	WP482338 Whirlpool Refrigerator Adhesive
