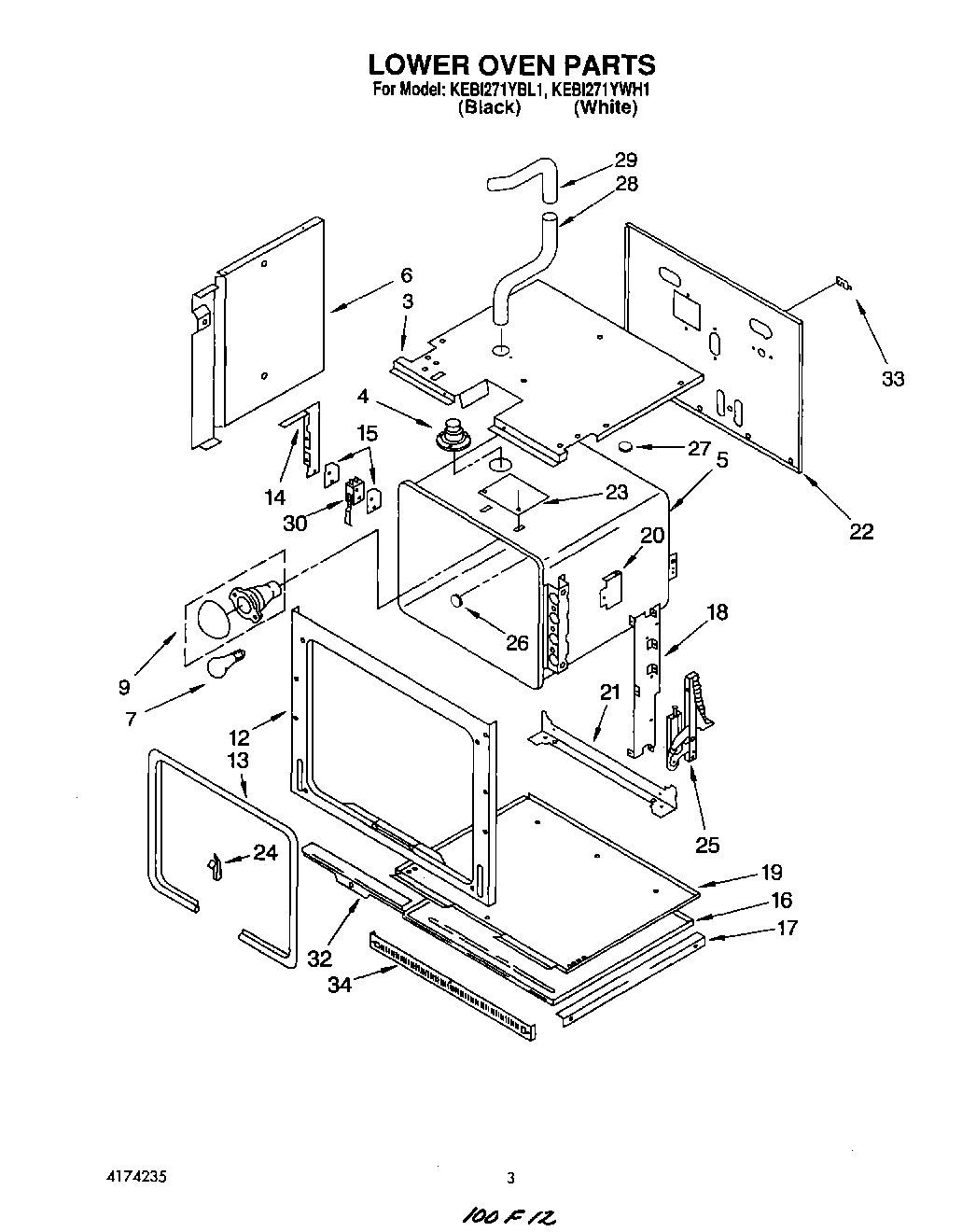

KEBI271YBL1 02 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Tube, Vent
4	Screw (3)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
12	Frame, Front (White Model)
12	Screw (4)
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
20	Screw (6)
21	Support, Oven
22	Back, Module
23	Screw (3)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	Screw
29	Tube, Vent Female
30	Screw (2)
30	Switch, Door
30	Nut (2)
32	Retainer, Seal
32	SCREW
33	Cover, Cap Tube
33	Screw
34	Vent, Lower Trim (Black)
34	Insulation, Back
34	Vent, Lower Trim (White)
34	Insulation, Oven
