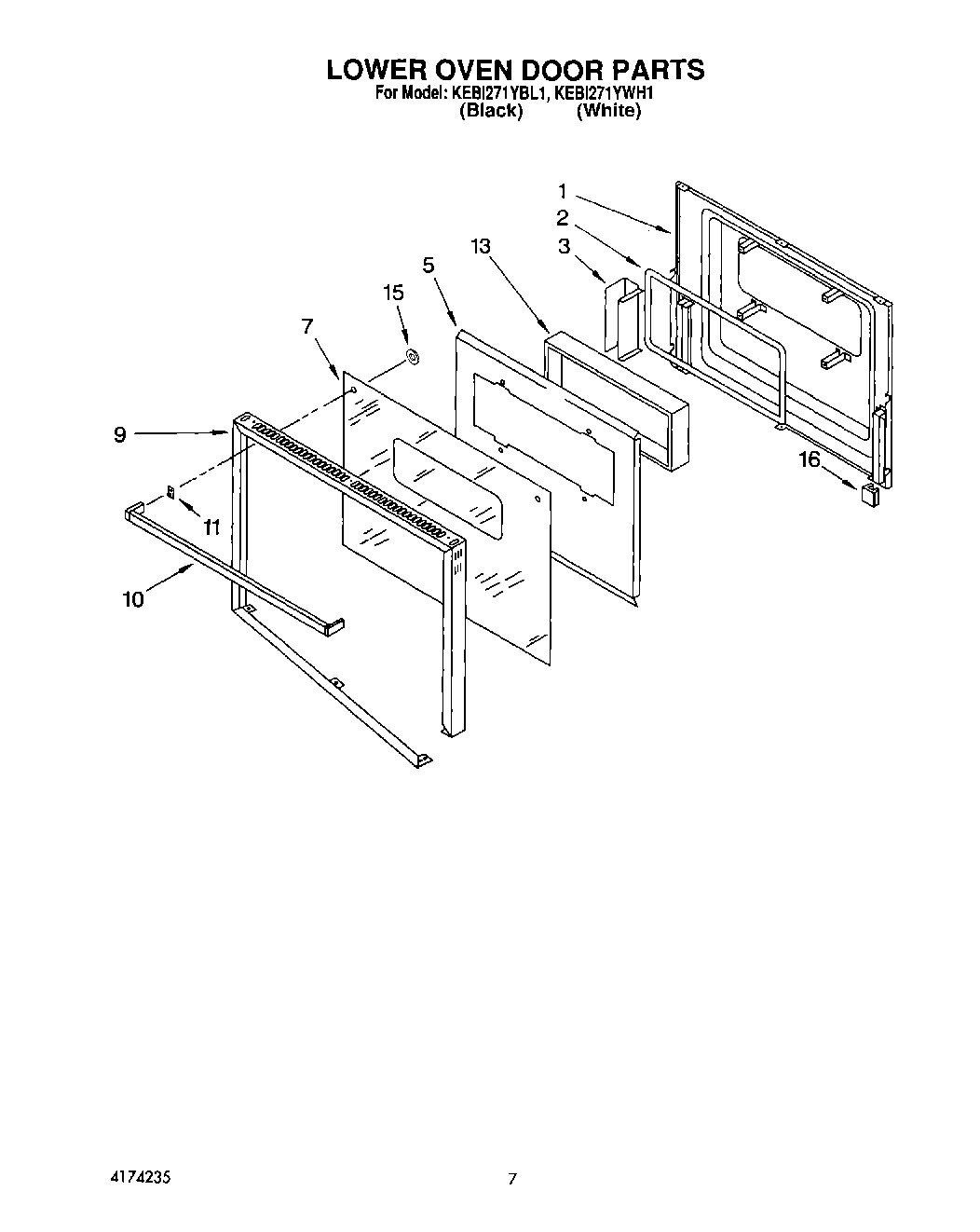

KEBI271YBL1 05 – LOWER OVEN DOOR

KEBI271YBL1 05 – LOWER OVEN DOOR

Written by

in

KEBI271YBL1 05 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
5	Insulation, Retainer
5	Screw
7	Glass, Door (Black)
7	Glass, Door (White)
9	Frame, Door
10	Screw
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Window Package
15	Bushing, Door Handle
16	Bumper, Door Glass
