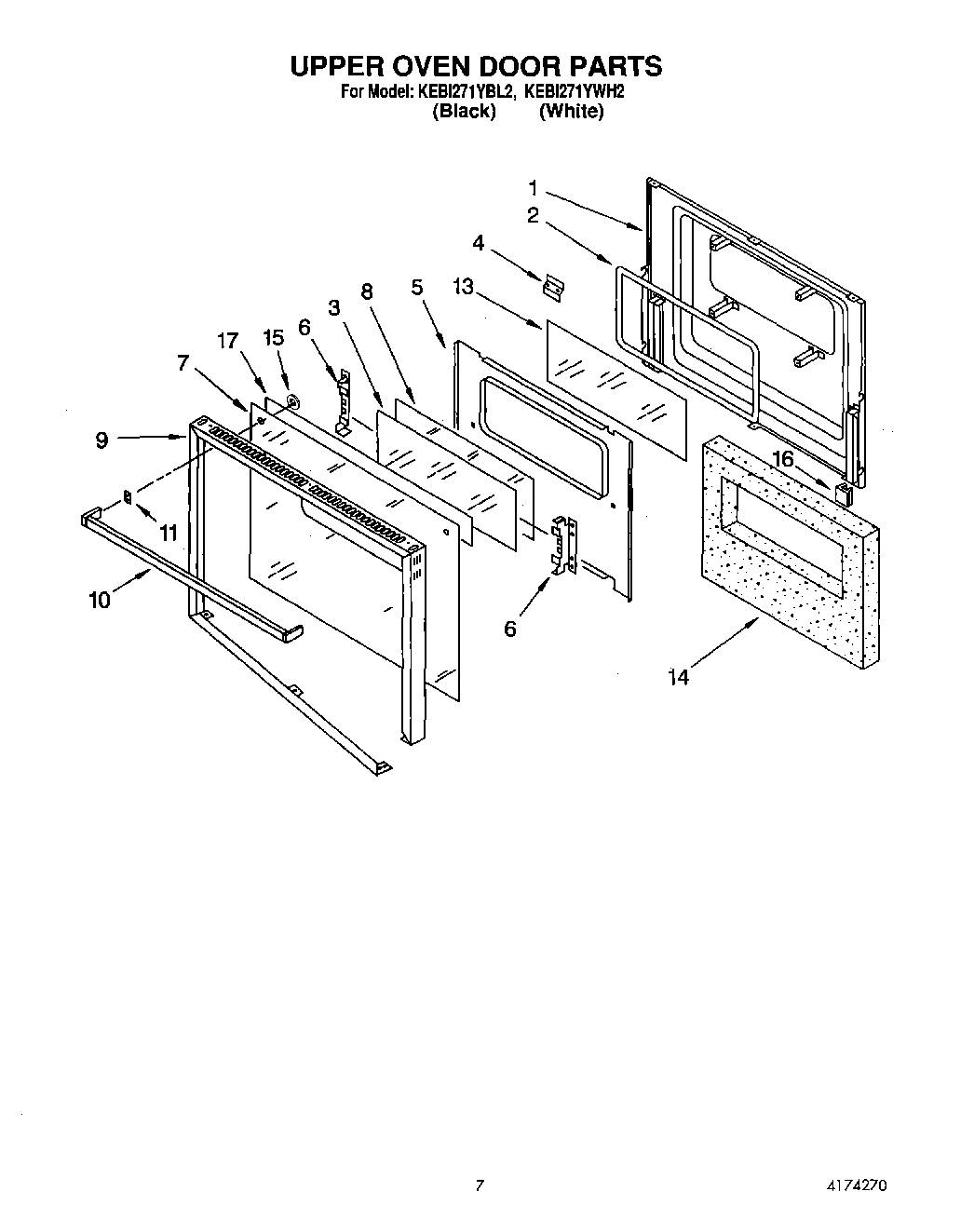

KEBI271YBL2 04 – UPPER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
1Liner, Door
2Seal, Window
3Glass, Clear
4Latch, Strike
5Retainer, Insulation
6Retainer, Glass
6Screw
7Glass, Door (Black Model)
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door
10Handle, Door (White Model)
10Handle, Door (Black Model)
10Screw
11Spacer, Door Handle
13Glass, Clear
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
17Foil-Adhesive Backed
