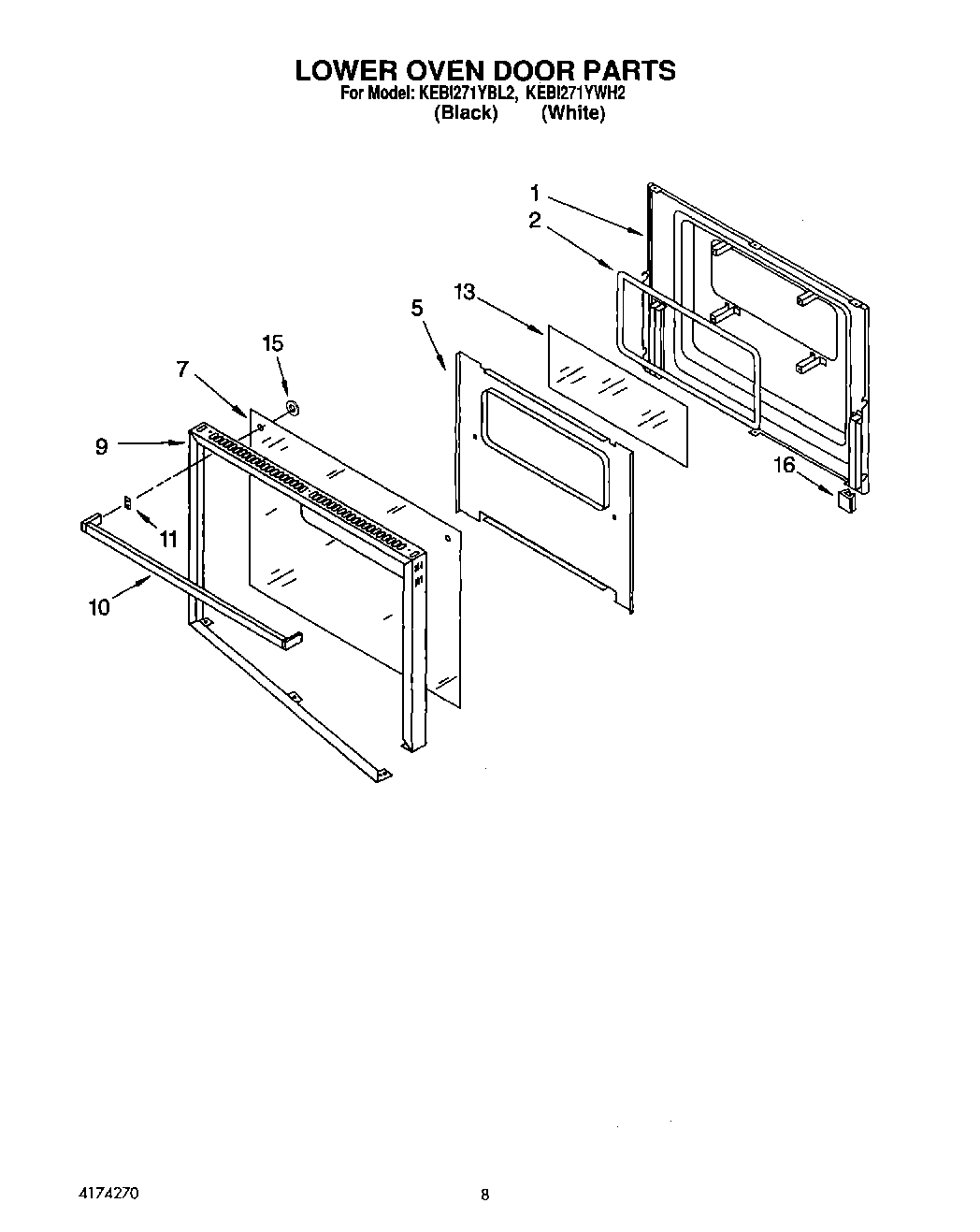

KEBI271YBL2 05 – LOWER OVEN DOORadmin2025-04-26T12:34:20+00:00KEBI271YBL2 05 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 1 | Screw, Black (2) |
| 1 | Vent, Lower Trim (Screw (2)) |
| 2 | Seal, Window |
| 5 | Retainer, Insulation |
| 5 | Screw |
| 7 | Glass, Door (White Model) |
| 7 | Glass, Door (Black Model) |
| 9 | Frame, Door |
| 10 | Handle, Door (Black Model) |
| 10 | Handle, Door (White Model) |
| 10 | Screw |
| 11 | Spacer, Door Handle |
| 13 | Glass, Clear |
| 15 | Bushing, Door Handle |
| 16 | Bumper, Door Glass |
