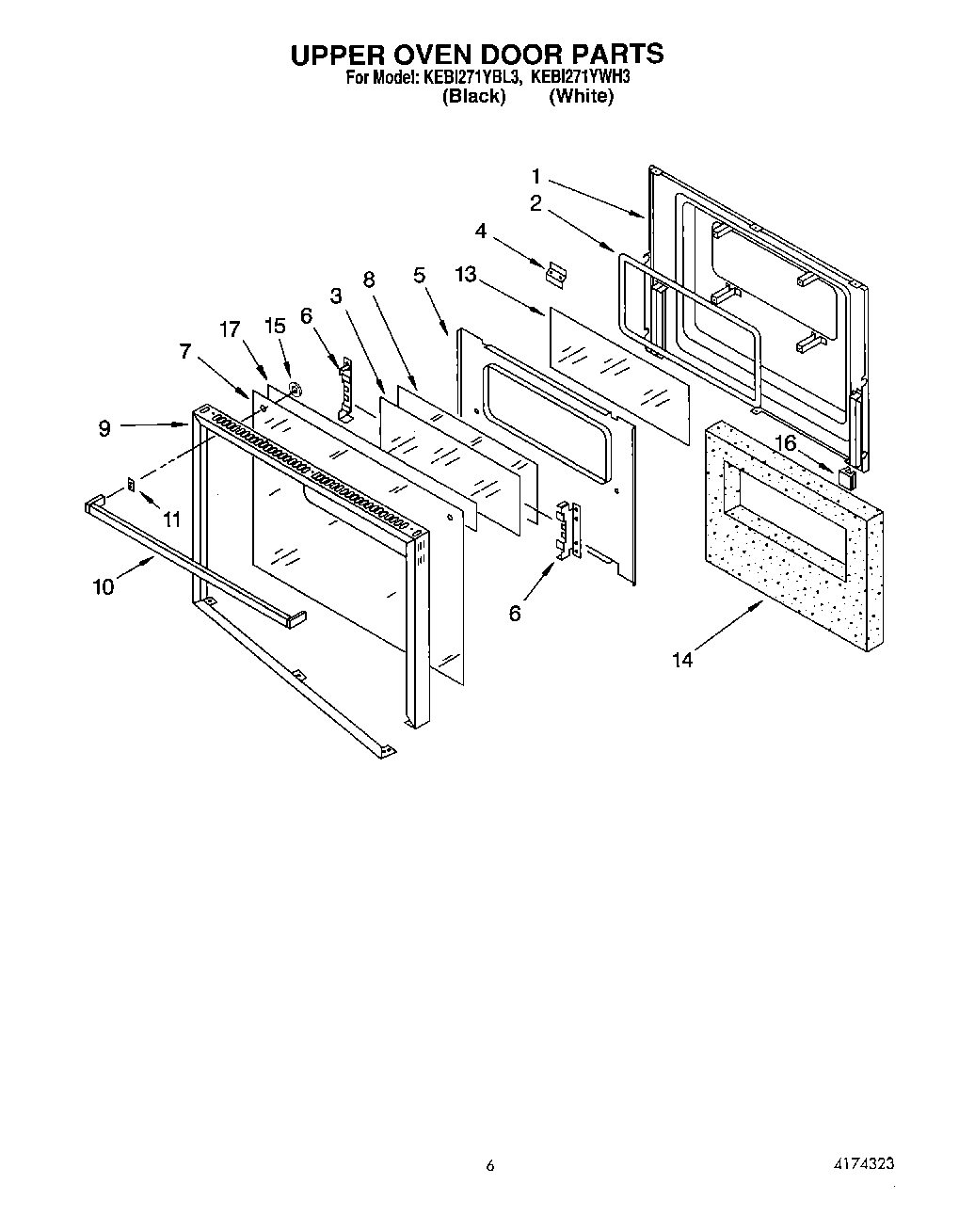

KEBI271YBL3 04 – UPPER OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
6	Screw
6	Retainer, Glass
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
10	Screw
11	Spacer, Door Handle
13	Glass, Clear
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
17	Foil-Adhesive Backed
