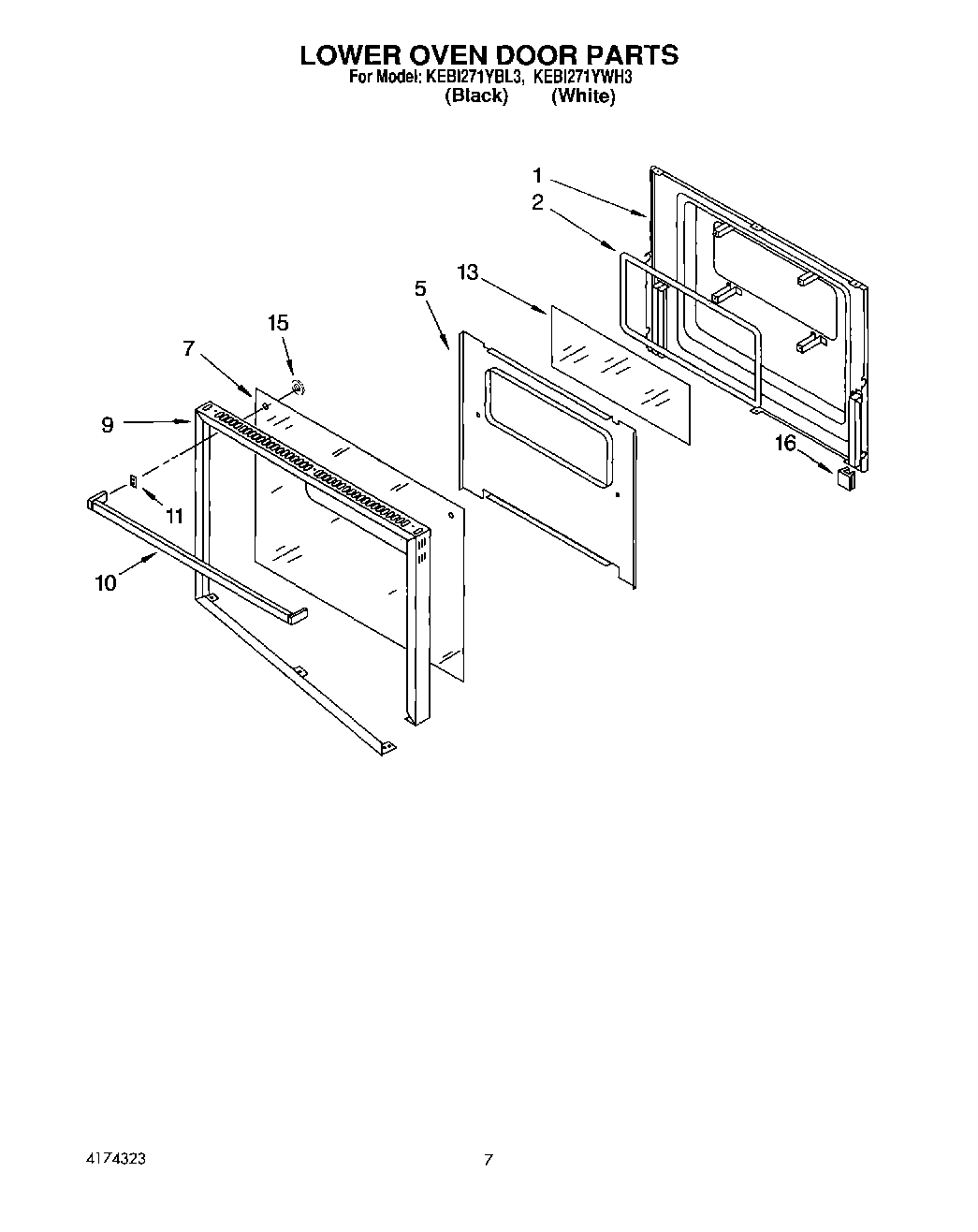

KEBI271YBL3 05 – LOWER OVEN DOOR

KEBI271YBL3 05 – LOWER OVEN DOOR

Written by

in

KEBI271YBL3 05 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
5	Screw
5	Retainer, Insulation
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
9	Frame, Door
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
10	Screw
11	Spacer, Door Handle
13	Glass, Clear
15	Bushing, Door Handle
16	Bumper, Door Glass
