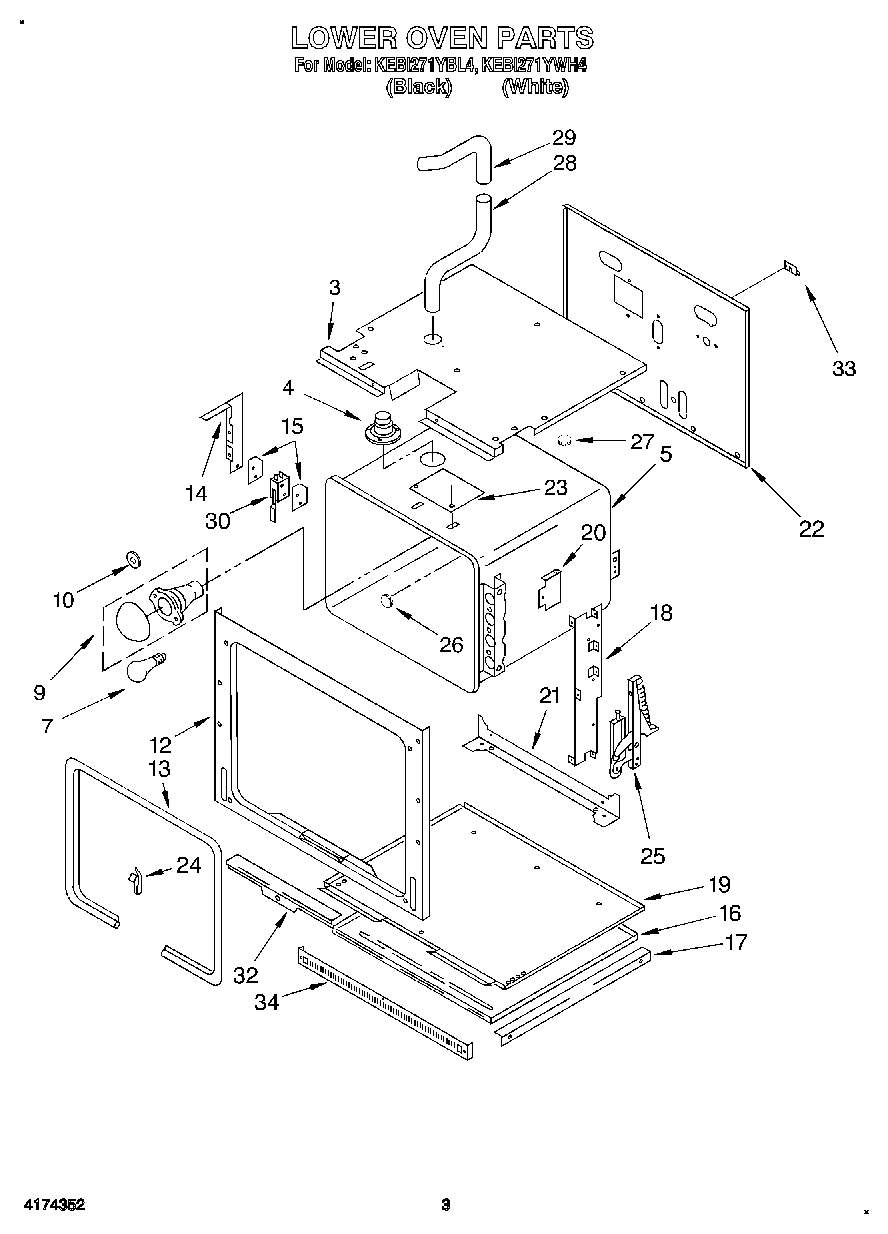

KEBI271YBL4 02 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Screw (2)
4	Tube, Vent
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	WP3184533 Whirlpool Range Light Lens Gasket
12	Frame, Front
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Screw (6)
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Screw
28	Tube, Vent Male
29	Tube, Vent Female
30	Nut (2)
30	Screw (2)
30	Switch, Door
32	Retainer, Seal
32	SCREW
33	Vent, Lower Trim (Screw (2))
33	Cover, Cap Tube
34	Insulation, Back
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (White)
34	Insulation, Oven
