KEBI271YWH0 02 – UPPER OVEN, OPTIONAL

KEBI271YWH0 02 – UPPER OVEN, OPTIONAL

Written by

in

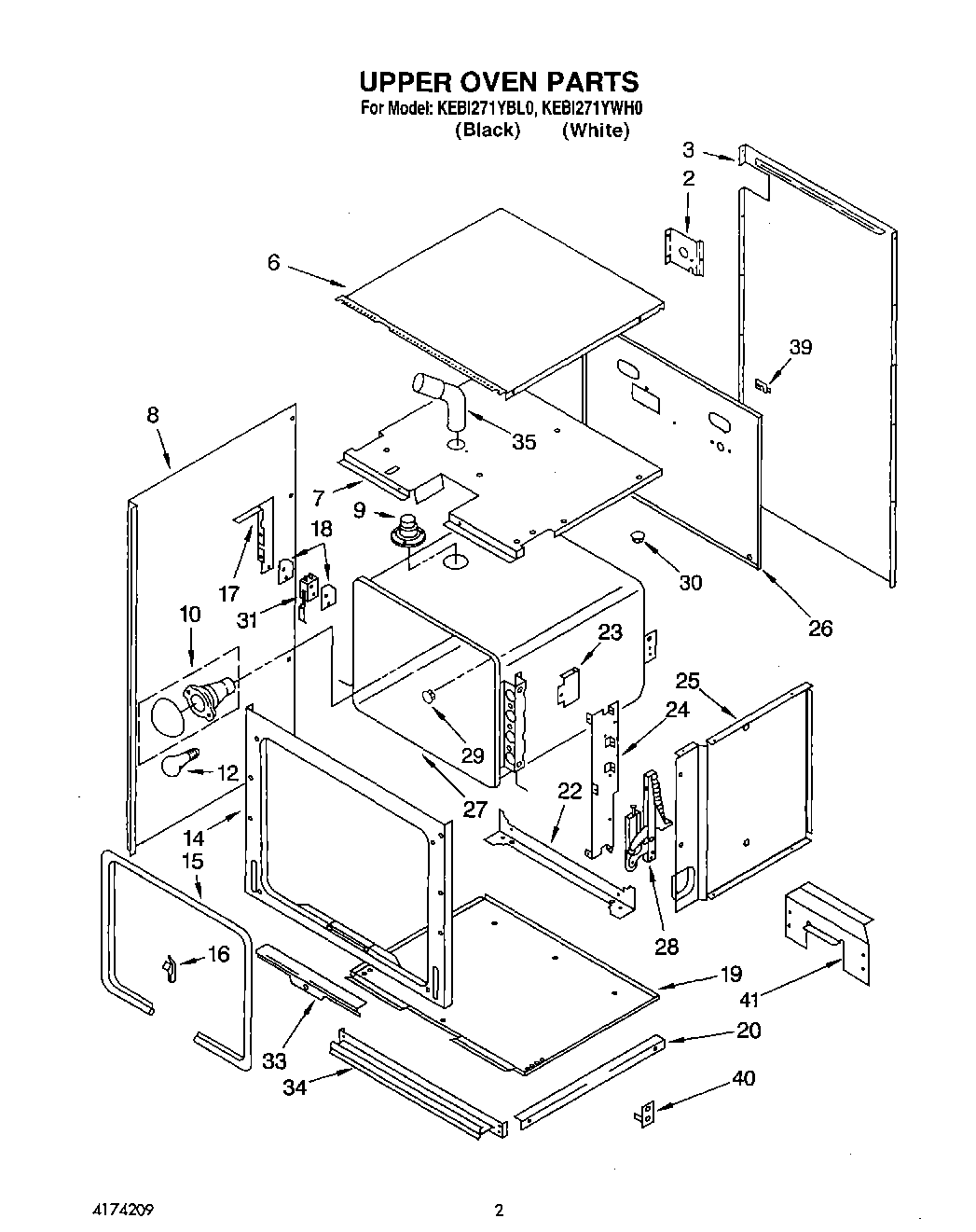

KEBI271YWH0 02 – UPPER OVEN, OPTIONAL

Products

PositionProduct
2Bracket, Conduit
3Cabinet, Back
6Cabinet, Top
7Module, Top
8Side, Cabinet (R.H. & L.H.)
9Tube, Vent
9Screw (3)
10W11594027 Whirlpool Range Oven Light Socket
12RANGE ONLY 40W 120V APPL BULB
14Frame, Front
15Seal, Door
16Clip, Oven Seal
17Bracket, Switch
18Insulator, Switch
19Bottom, Modual
20Rail, Support (2)
22Support, Oven
23Shield, Radiation
23Screw (6)
24Bracket, Hinge
25Side, Module (R.H. & L.H.)
26Screw
26Back, Module
27Liner, Oven
28Hinge, Door
28Screw (4)
29Button, Plug
30Button, Plug
31Screw (2)
31Switch, Door
31Nut (2)
33Retainer, Seal
33SCREW
34Vent, Middle Trim (White or Almond Model)
34Vent, Lower Trim (Screw (2))
34Vent, Lower Trim (Screw (4))
34Vent, Middle Trim (Black Model)
35Tube, Vent
39Cover, Cap Tube
39Screw
40Screw
40Insert, Middle Vent Trim
411
41Wire (14 Ga. 200 c Brown)
4118 Ga. 80~c Rating (Red)
41Wire (14 Ga. 150 c Brown)
41Wire (12 Ga. 150 c Black)
41Wire (14 Ga. 150 c Yellow)
41Wire (14 Ga. 150 c Orange)
41WPL 350806
41WPL 591014
41WPL 3171507
41350930 Whirlpool White Spray Paint
41350956 Whirlpool Spray Assembly
4172017 Whirlpool Appliance Touch-Up Paint White
41799344 Whirlpool Refrigerator Paint
41WP72107 Whirlpool Touchup
41Leveler (Thinner)
41Almond (Uncut)
41Golden Harvest
41Wire (14 Ga. 150 c Green)
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41Wire (14 Ga. 150 c Blue)
41Enamal, Toast (1 Qt. Uncut)
41Platinum (Uncut)
41WPL 72112
41350942 Whirlpool Spray Paint
41Wire, 25` Roll (Red 14 Ga.)
41Wire, 25“ Roll (White 14 GA.)
41285006 Whirlpool Spray
4172032 Whirlpool Touch Up Paint Black
41Paint, Spray (13 Oz.) (Platinum)
41Toast
41Wire, 25` Roll (Black 14 Ga.)
41WP261869 Whirlpool Microwave Paint
41242831 Whirlpool Oven Wire
4172113 Whirlpool Touch-Up Paint
41Insulation, Back
41Golden Harvest (Uncut)
41Insulation, Oven
41WPL 3183752
41WP482338 Whirlpool Refrigerator Adhesive
