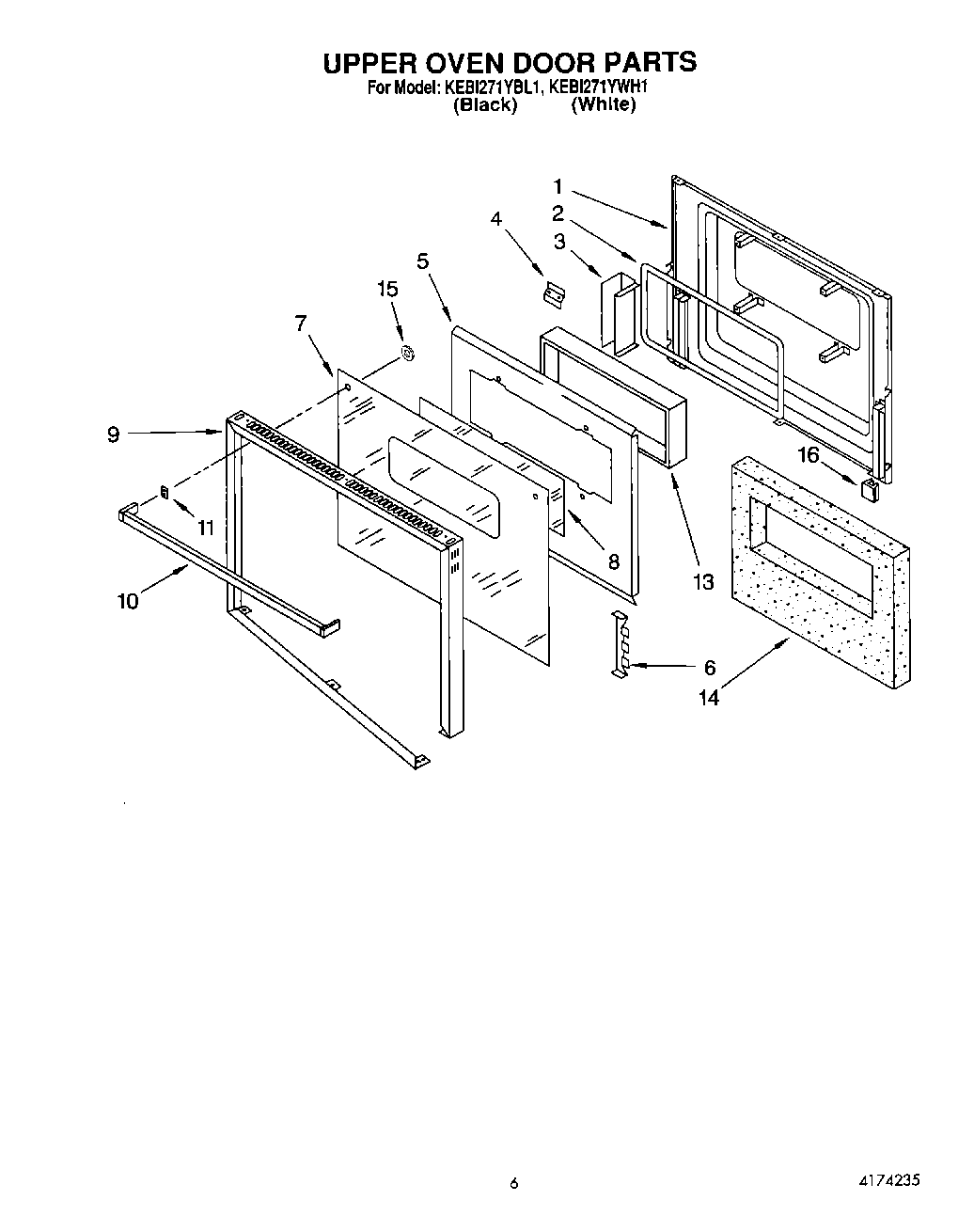

KEBI271YWH1 04 – UPPER OVEN DOOR

Products

PositionProduct
1Vent, Lower Trim (Screw (2))
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
5Screw
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (Black)
7Glass, Door (White)
8Glass, Reflective
9Frame, Door
10Handle, Door (Black Model)
10Handle, Door (White Model)
10Screw
11Spacer, Door Handle
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
