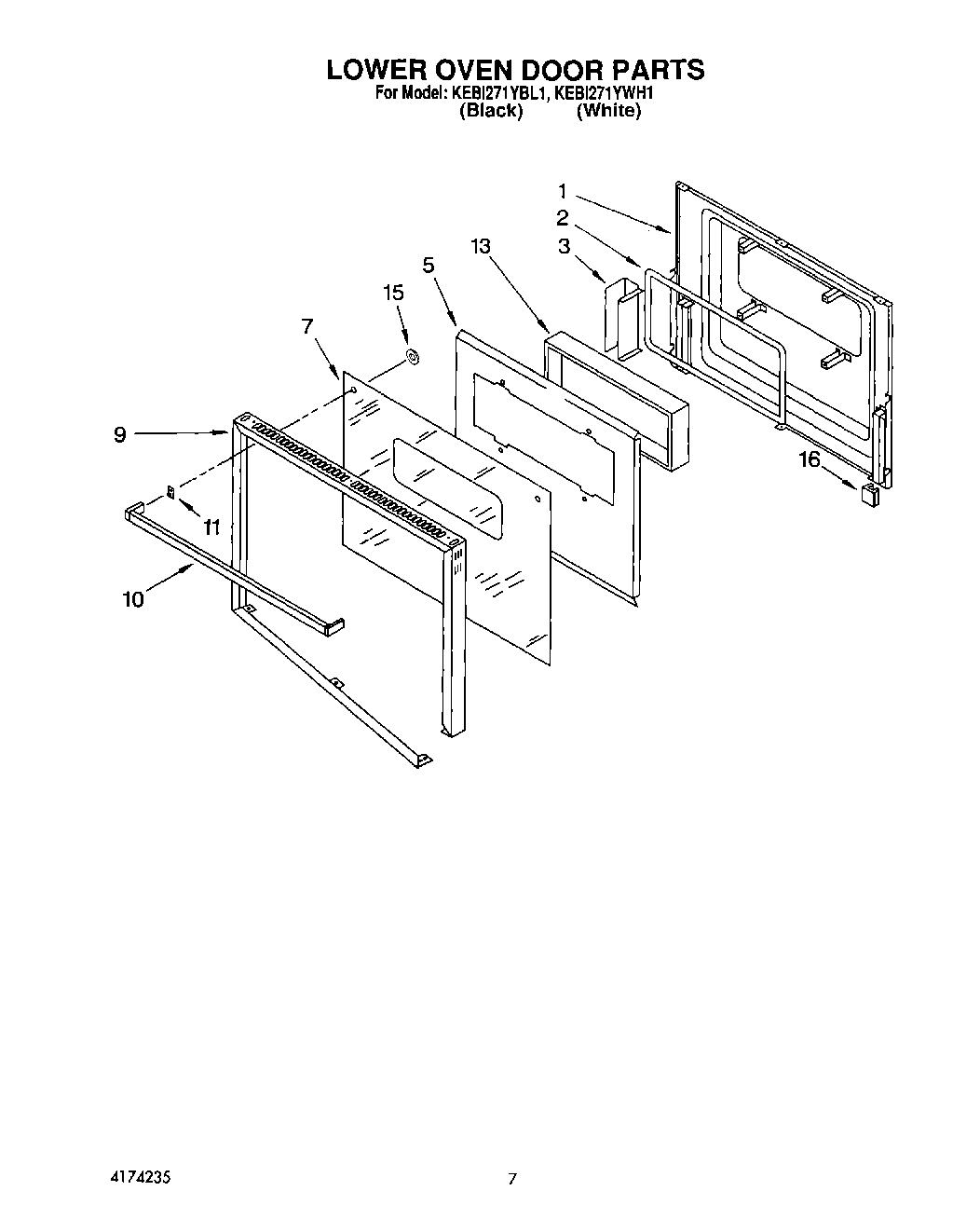

KEBI271YWH1 05 – LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
5Insulation, Retainer
5Screw
7Glass, Door (Black)
7Glass, Door (White)
9Frame, Door
10Screw
10Handle, Door (White Model)
10Handle, Door (Black Model)
11Spacer, Door Handle
13Window Package
15Bushing, Door Handle
16Bumper, Door Glass
