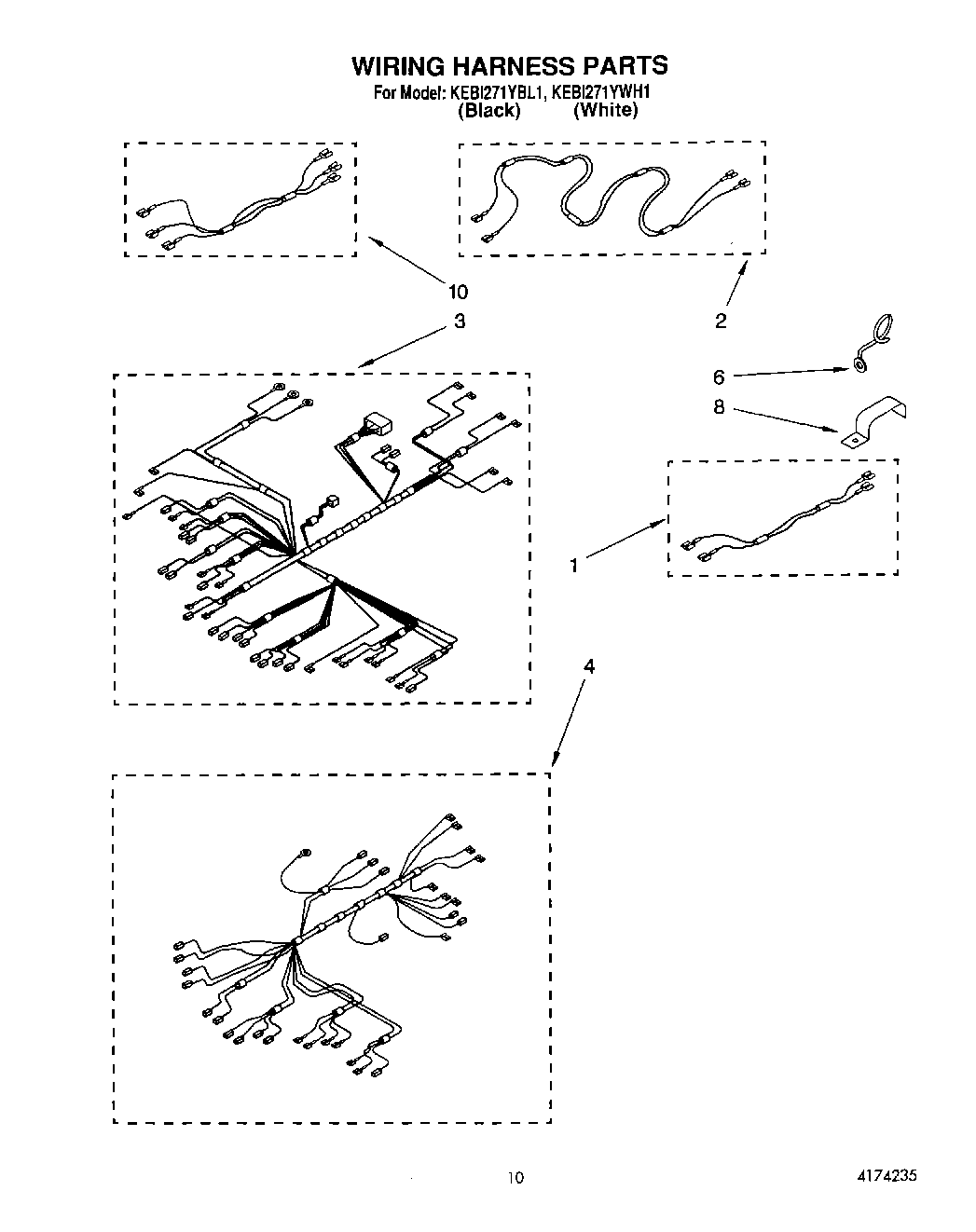

KEBI271YWH1 08 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness Wire (Door Switch)
2	Wiring Harness (Door Switch) Lower)
3	Wiring Harness (Lower Oven)
4	Harness Wire (Oven)
6	Screw
6	Standoff, Wire
8	7111P002-60 Whirlpool Clamp
8	WP112432 Whirlpool Nut Assembly
10	Plug, Button
10	Harness, Wire (Latch Assy.)
