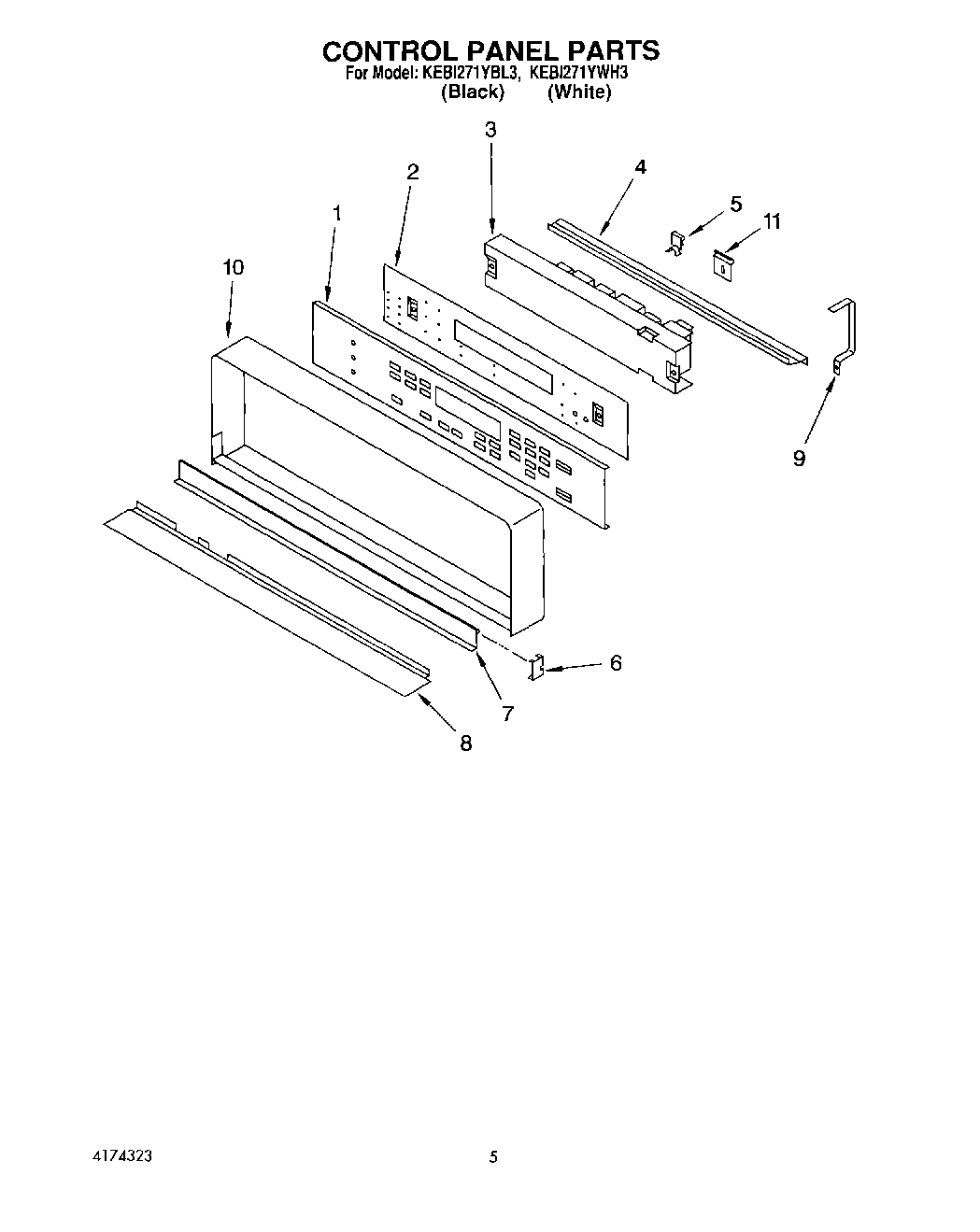

KEBI271YWH3 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Tech Sheet
Installation Instructions
Use & Care Guide
1Membrane, Switch (Black)
1Membrane, Switch (White)
2Bracket, Mounting Switch Membrane
3Screw (3)
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
