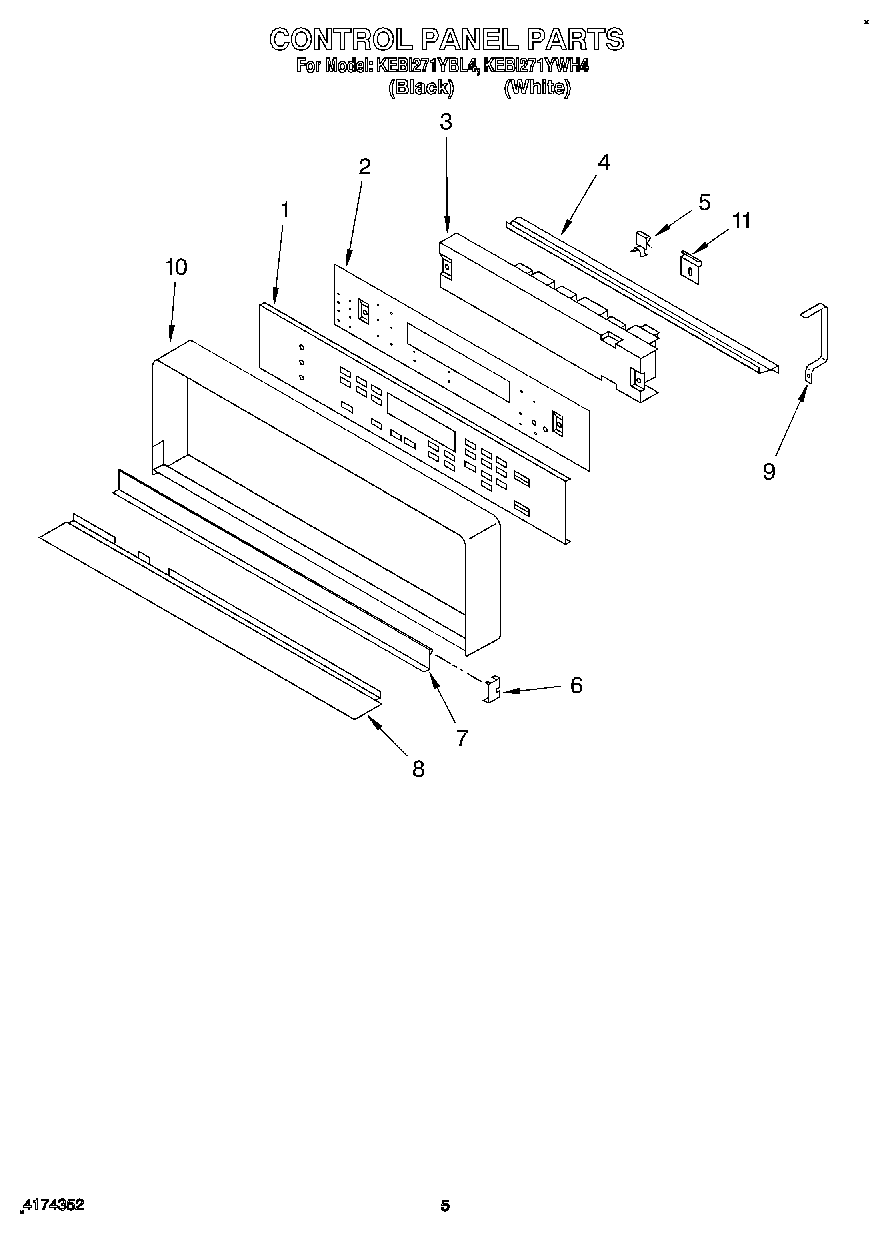

KEBI271YWH4 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
1Membrane, Switch (Black)
1Membrane, Switch (White)
2Bracket, Mounting Switch Membrane
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
