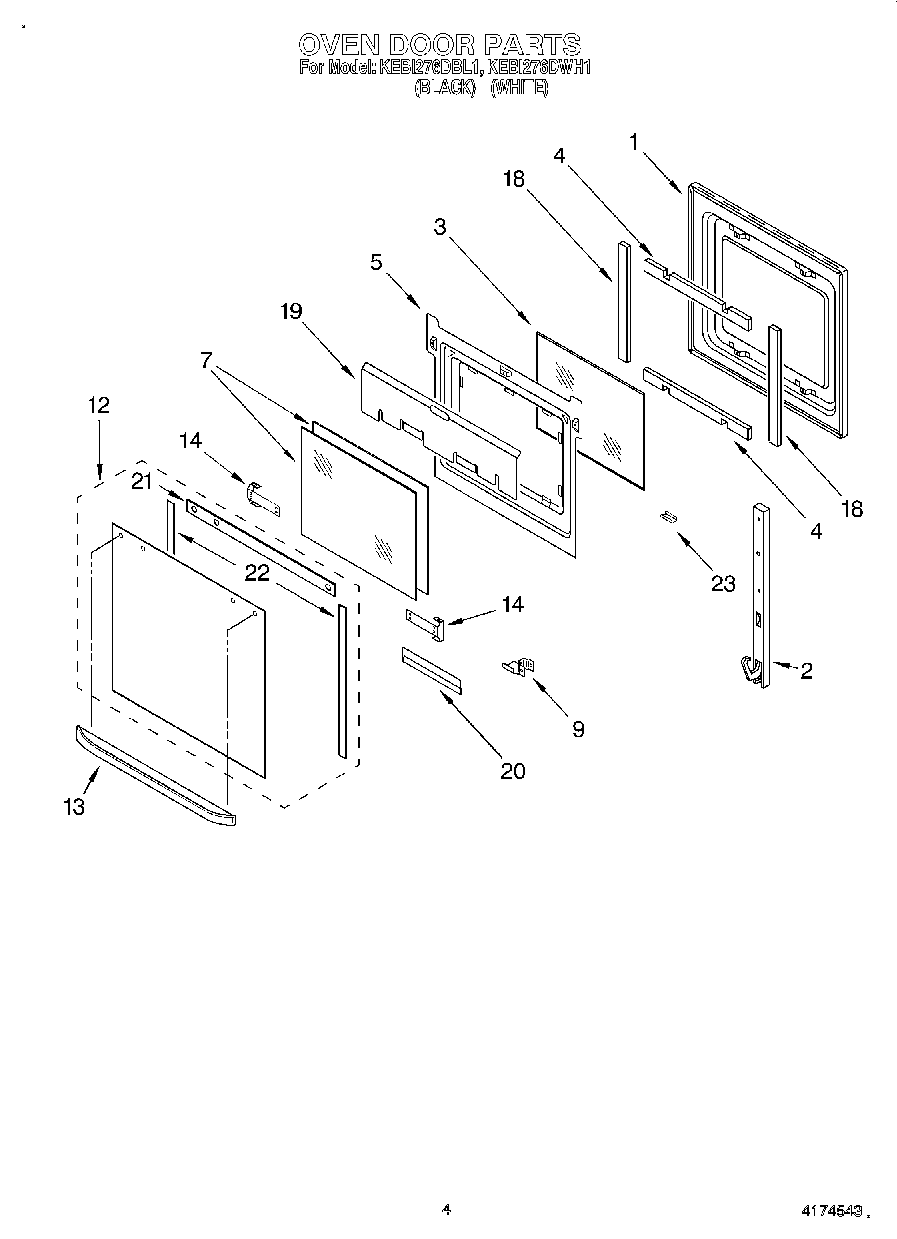

KEBI276DBL1 03 – OVEN DOOR

KEBI276DBL1 03 – OVEN DOOR

Written by

in

KEBI276DBL1 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4449743 Whirlpool Screw
2WP4455524 Whirlpool Door Hinge
3WP4449253 Whirlpool Glass Window
4Insulation Top and Bottom
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
9Retainer, Glass
12Glass, Outer (White Model)
12Glass, Outer (Black Model)
13Handle (White Model)
13Handle (Black Model)
14Screw
14Bracket, Handle
18W11688413 Whirlpool Insulation
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Top
22Seal, Sides
23Clip, Retainer (Black Model)
23Clip, Retainer (White Model)
