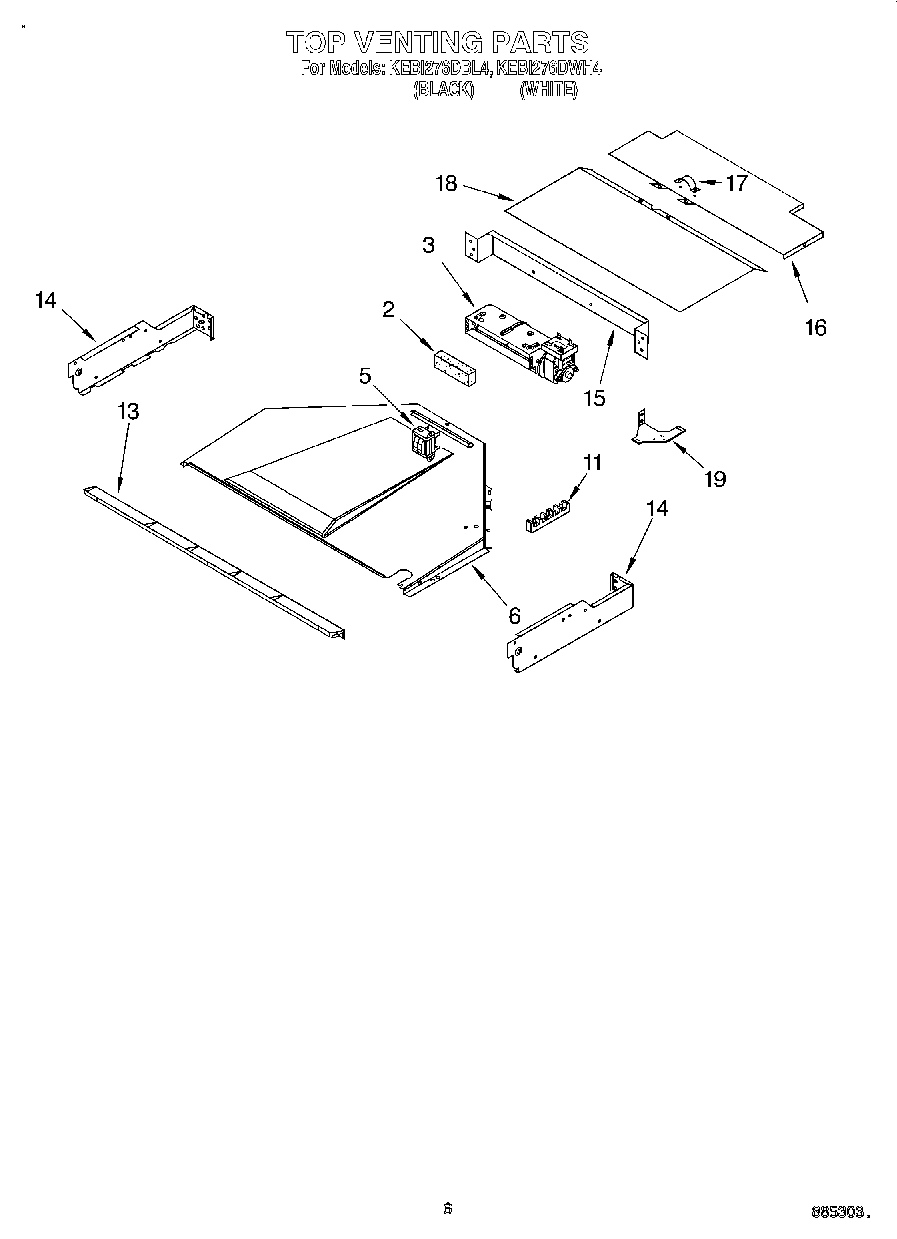

KEBI276DWH4 05 – TOP VENTING, OPTIONAL

Products

Position	Product
2	Seal, Foam
3	Blower
5	WP9760588 Whirlpool Transformer
6	Exhaust Duct
11	WP3387230 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, (Control Panel)
13	WP4450038 Whirlpool Screw
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
14	WP4449154 Whirlpool Screw
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
19	Wire (14 Ga. 200 c Brown)
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	1
19	Bracket, Blower
19	Harness, Wire (Main) (Also, order Door Switch Harness)
19	WPL 591014
19	Harness, Wire (Latch)
19	Roll Tape, Exhaust Duct
19	Harness, Wire (Door Switch) (Also, order Main Harness)
19	261900 Whirlpool Microwave Spray
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	4450800 Whirlpool Oven Screw
19	4448664 Whirlpool Oven Mounting Bracket
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	WP112432 Whirlpool Nut Assembly
19	WP488366 Whirlpool Refrigerator Clamp
19	WP4449809 Whirlpool Screw
19	72017 Whirlpool Appliance Touch-Up Paint White
19	285006 Whirlpool Spray
19	72032 Whirlpool Touch Up Paint Black
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	WP261869 Whirlpool Microwave Paint
19	242831 Whirlpool Oven Wire
19	WP4456654 Whirlpool Thermal Fuse
19	Conduit, Double
19	WP4448950 Whirlpool Screw
19	814381 Whirlpool Pin
19	WP482338 Whirlpool Refrigerator Adhesive
19	350930 Whirlpool White Spray Paint
