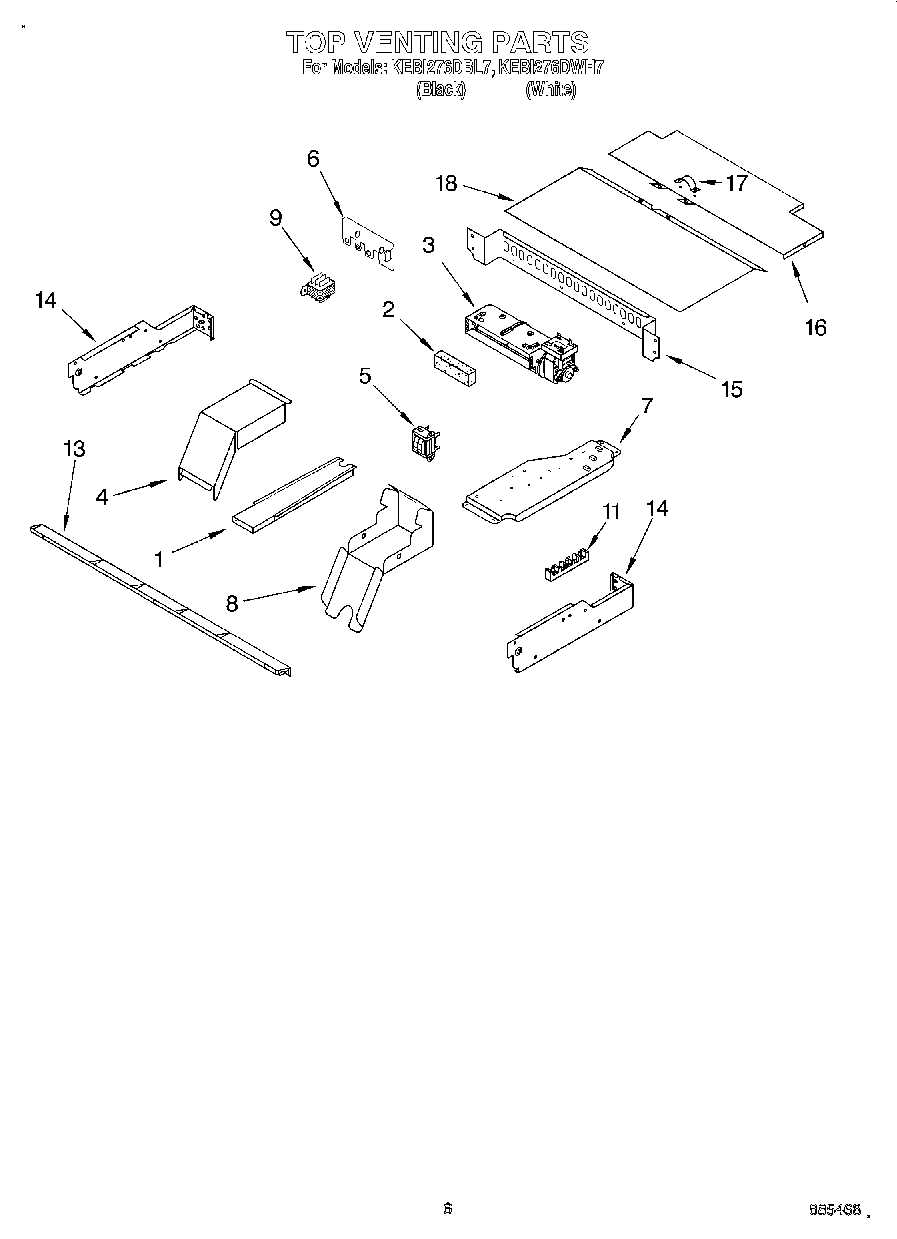

KEBI276DWH7 05 – TOP VENTING, OPTIONAL

KEBI276DWH7 05 – TOP VENTING, OPTIONAL

Written by

in

KEBI276DWH7 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3WPW10016550 Whirlpool Blower Cooling Fan
44455178 Whirlpool Oven Top Elbow
5WP9760588 Whirlpool Transformer
6Suppressor
7Plate, Mounting
84455177 Whirlpool Oven Bottom Elbow
9Transformer
11WP8203546 Whirlpool Terminal Block
11WP3400016 Whirlpool Screw Assembly
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
18Cover, Top Front
18WPL 591014
18350930 Whirlpool White Spray Paint
184451761 Whirlpool Oven Support Bracket
18Wire, 25` Roll (Red 14 Ga.)
184448664 Whirlpool Oven Mounting Bracket
18Harness, Wire (Latch)
18261900 Whirlpool Microwave Spray
18Harness, Wire (Main)
18Wire (12 Ga. 150 c Black)
1872017 Whirlpool Appliance Touch-Up Paint White
18WP4449809 Whirlpool Screw
18Conduit, Double
18Wire, 25“ Roll (White 14 GA.)
18WP4448950 Whirlpool Screw
18814381 Whirlpool Pin
18WP482338 Whirlpool Refrigerator Adhesive
1872032 Whirlpool Touch Up Paint Black
18285006 Whirlpool Spray
18WPW10339879 Whirlpool Wire Tie
18Spacer, Harness
18Wire, 25` Roll (Black 14 Ga.)
18WP4456654 Whirlpool Thermal Fuse
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18WP112432 Whirlpool Nut Assembly
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
184450800 Whirlpool Oven Screw
