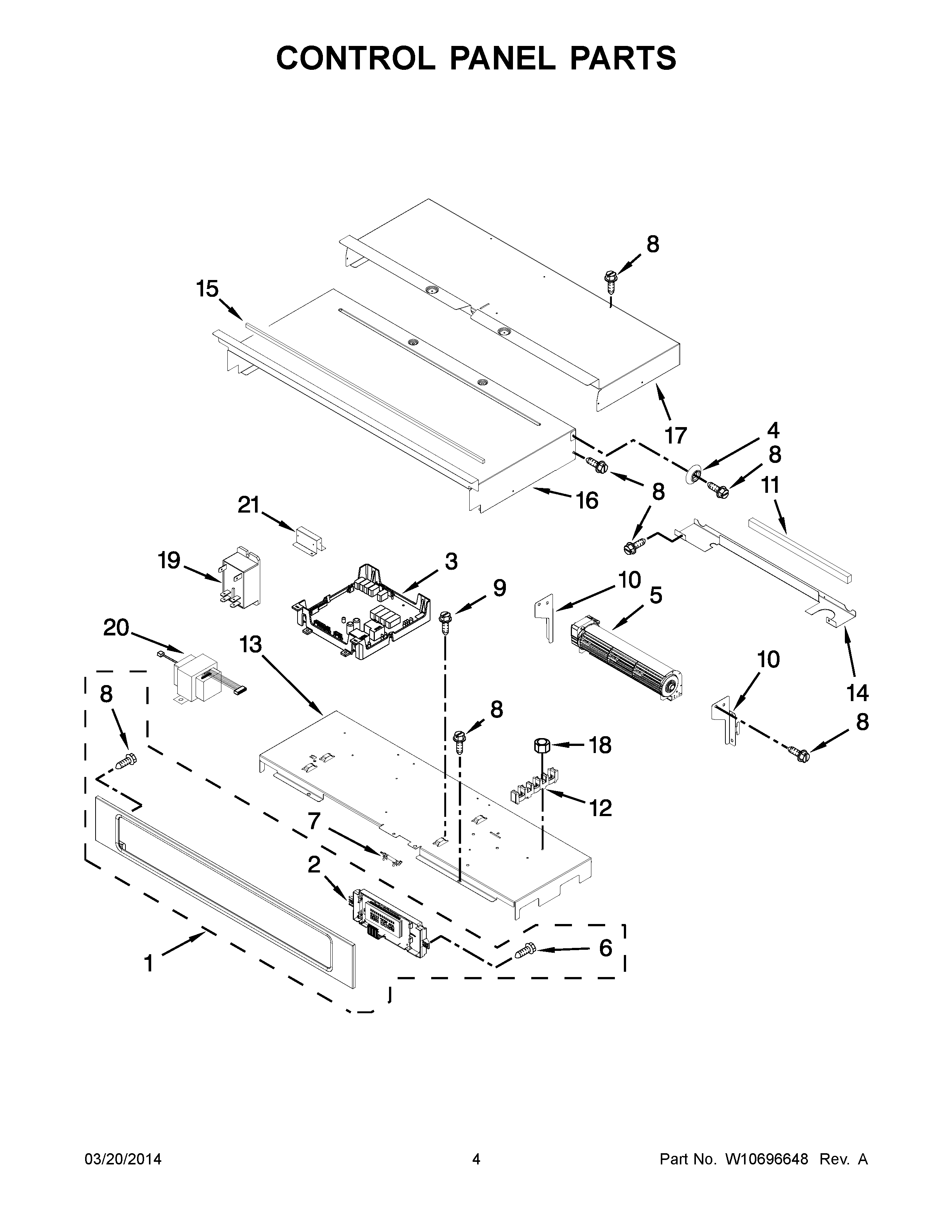

KEBK101BBL01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
1	WPW10365986 Whirlpool Control Panel
2	WPW10751146-includeCORE Whirlpool WPW10751146 Refrigerator Electronic Control Board + Core
3	BOARD, GOC
4	W10363824 Whirlpool Spacer
5	WPW10641253 Whirlpool Blower Motor
6	SCREW
7	WPW10545255 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10283078 Whirlpool Mounting Bracket
10	BRACKET, BLOWER LEFT
11	W10491987 Whirlpool Foam Seal
12	BLOCK, TERMINAL
13	W10347650 Whirlpool Mounting Bracket
14	W10509164 Whirlpool Mounting Bracket
15	WPW10657548 Whirlpool Foam Seal
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
18	Nut
19	WP9752759 Whirlpool Relay
20	WPW10354052 Whirlpool Transformer
21	W10347585 Whirlpool Relay Bracket
