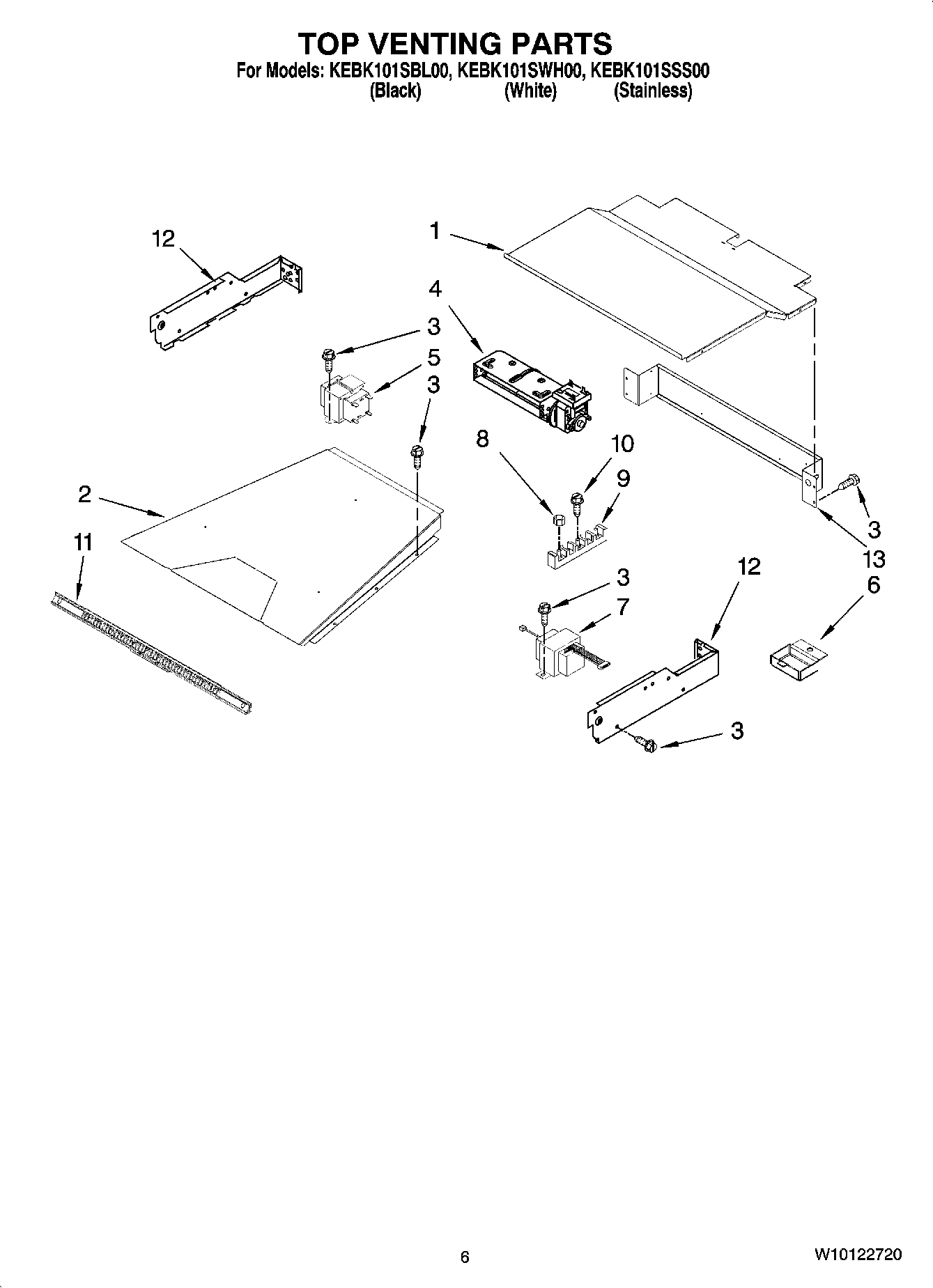

KEBK101SBL00 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	Harness, Main
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	261900 Whirlpool Microwave Spray
	Cleaner, Stainless Steel
	Harness, Wire (Main)
	Conduit, Single
	ADHESIVE
	SPLICING WIRES–25FT. LENGTH
	WIRING HARNESS PARTS
	Miscellaneous
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	242831 Whirlpool Oven Wire
	WP482338 Whirlpool Refrigerator Adhesive
	W11209404 Whirlpool Wire Harness
	W10231531 Whirlpool Wire Harness
	WP4448950 Whirlpool Screw
1	Cover, Top
2	Exhaust Duct
3	WP4449809 Whirlpool Screw
4	WP8303972 Whirlpool Blower
5	WP9760588 Whirlpool Transformer
6	8285593 Whirlpool Oven Wire Cover
7	WPW10111628 Whirlpool Transformer
8	Nut (3)
9	WP8203546 Whirlpool Terminal Block
10	Screw
11	8303684 Whirlpool Oven Vent Control
12	Side, Control Top (Left)
12	Side, Control Top (Right)
13	Back, Control
