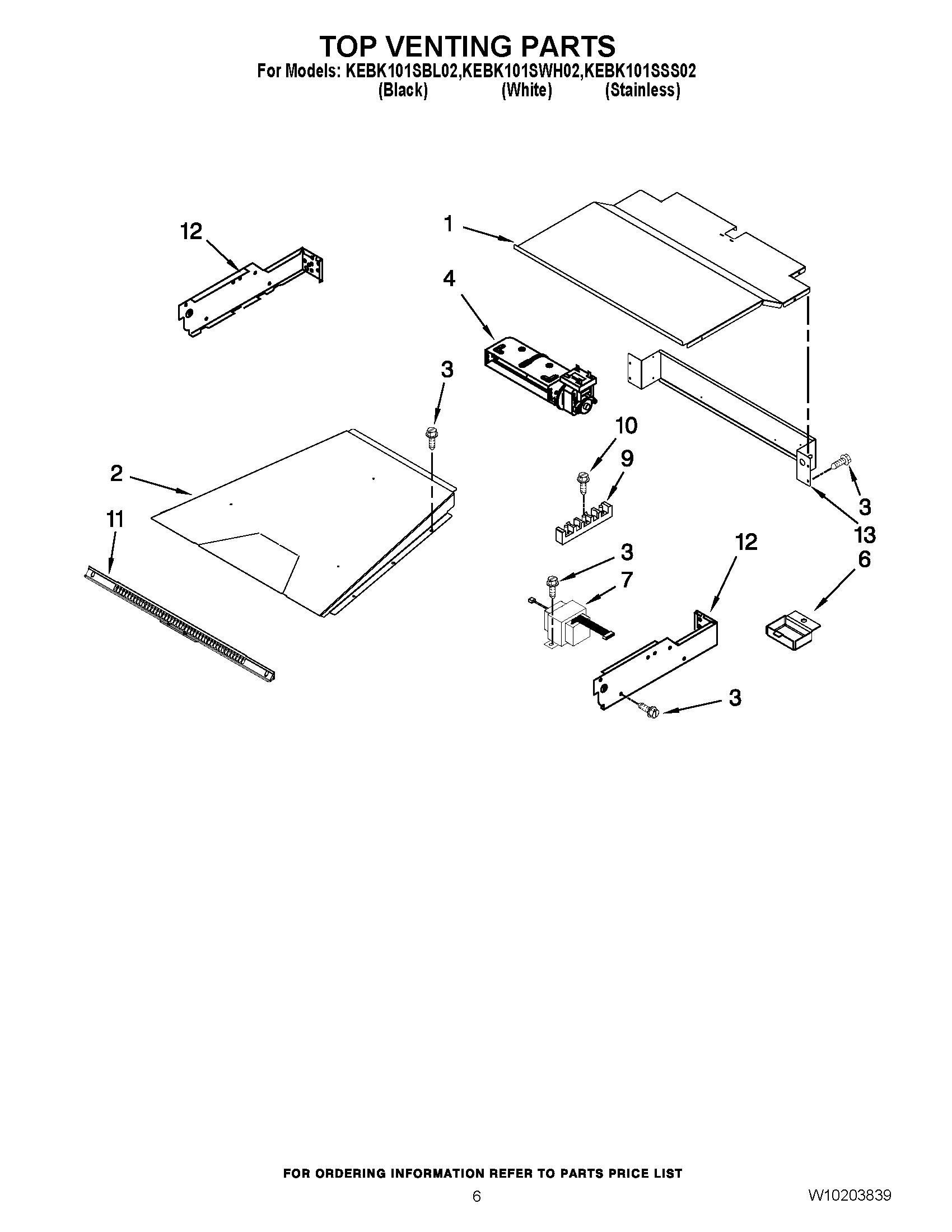

KEBK101SBL02 05 – TOP VENTING PARTS

Products

Position	Product
1	Cover, Top
2	Duct, Air Outlet
3	WP4449809 Whirlpool Screw
4	WP8303972 Whirlpool Blower
6	8285593 Whirlpool Oven Wire Cover
7	WPW10111628 Whirlpool Transformer
9	WP8203546 Whirlpool Terminal Block
10	Screw
11	8303684 Whirlpool Oven Vent Control
12	Side, Control Top (Right)
12	Side, Control Top (Left)
13	Back, Control
