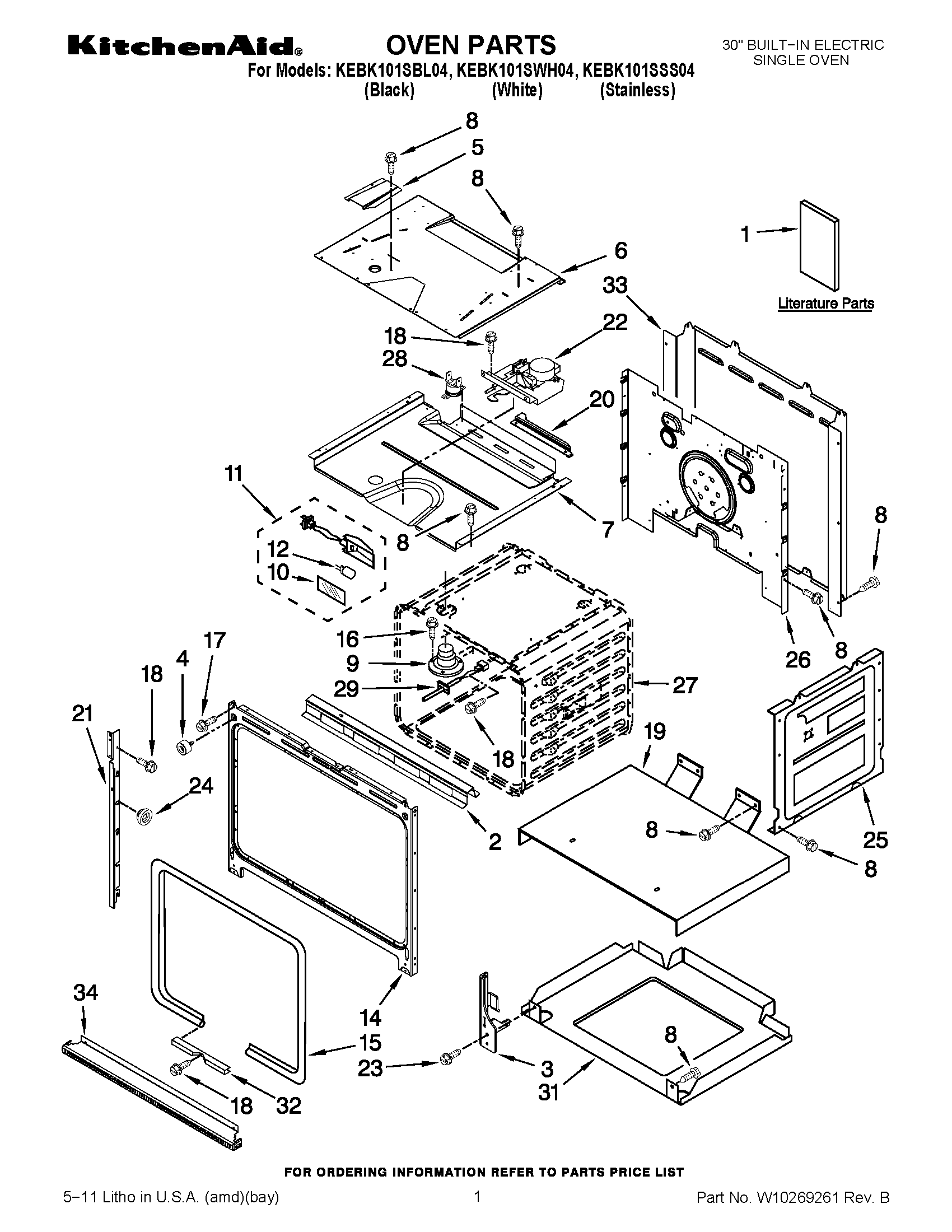

KEBK101SBL04 01 – OVEN PARTS

KEBK101SBL04 01 – OVEN PARTS

Written by

in

KEBK101SBL04 01 – OVEN PARTS

Products

PositionProduct
NIInsulation, Back
NIInsulation, Wrap
1Easy Set Guide
1Installation Instructions
1Use & Care Guide
1Tech Sheet (English)
1Tech Sheet (French)
1Installation Instructions (Undercounter Oven)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2Bracket, Base
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5Exhaust,Vent Slope
6Divider, Vent
7Top Chassis
8SCREW
9W10861715 Whirlpool Vent Tube
10W10169756 Whirlpool Light Lens
11WPW10307114 Whirlpool Light
12BULB-LIGHT
14Frame, Front
15WP8304493 Whirlpool Door Gasket
16SCREW
17Screw
18SCREW
19Support, Insulation
20BRACKET, THERMOSTAT
21Mounting Rail, Side Right (White)
21Mounting Rail, Side Right (Black)
21Mounting Rail, Side Left (Black)
21Mounting Rail, Side Left (White)
22W11029221 Whirlpool Door Latch
23WP4449743 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
28WP8304452 Whirlpool Range Thermal Fuse
29WPW10131825 Whirlpool Oven Temperature Sensor
31Base, Chassis
32Retainer, Gasket
33Cover, Back
34Trim, Bottom Vent
34Trim, Bottom Vent (Black)
34Trim, Bottom Vent (White)
