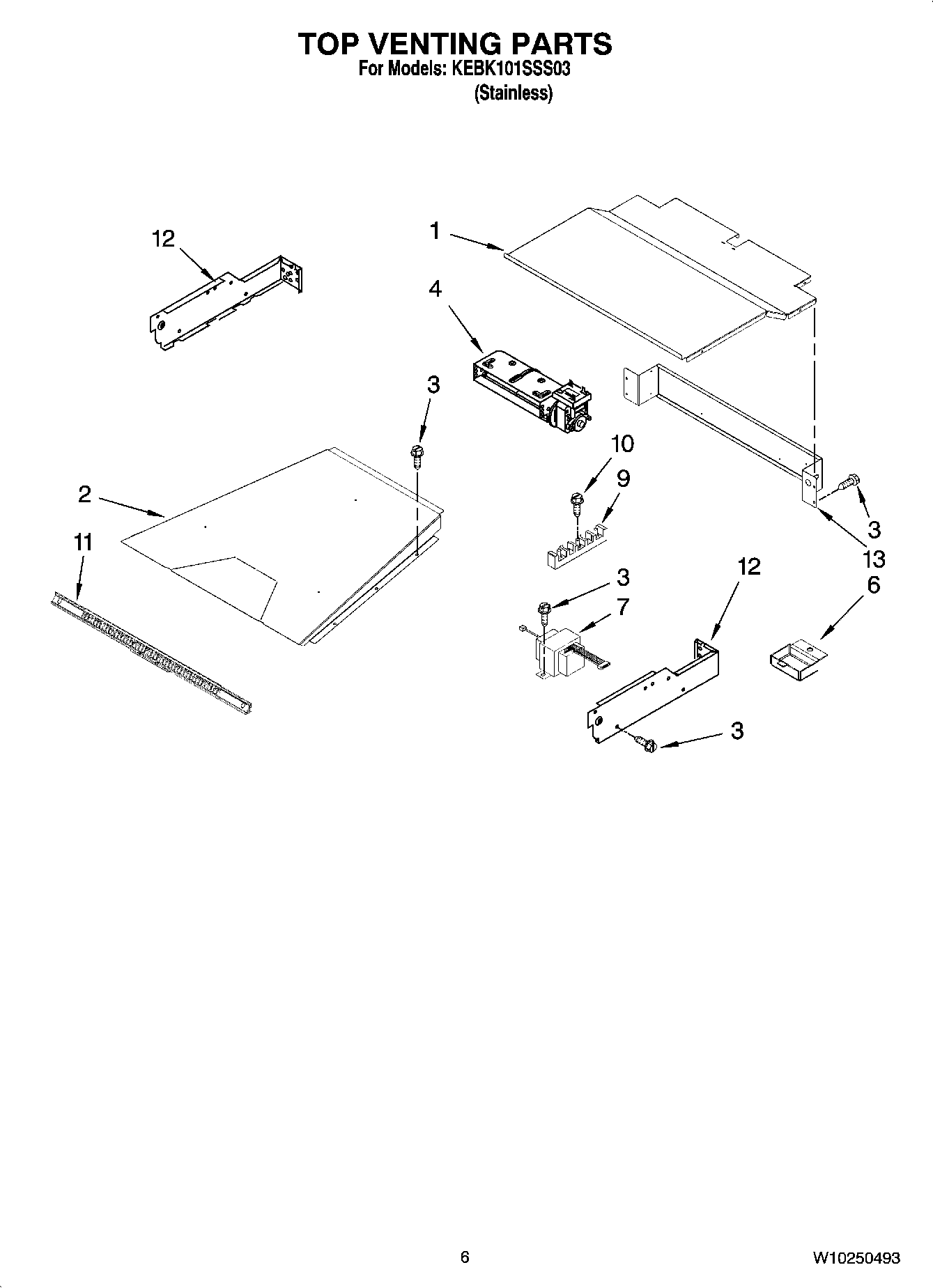

KEBK101SSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP261869 Whirlpool Microwave Paint
WPL 591014
Miscellaneous
261900 Whirlpool Microwave Spray
Harness, Wire (Main)
Conduit, Single
Harness, Main
ADHESIVE
WIRING HARNESS PARTS
W11209404 Whirlpool Wire Harness
W10231531 Whirlpool Wire Harness
WP4448950 Whirlpool Screw
8528351 Whirlpool Clip
WP482338 Whirlpool Refrigerator Adhesive
72017 Whirlpool Appliance Touch-Up Paint White
72032 Whirlpool Touch Up Paint Black
4450800 Whirlpool Oven Screw
Nut
285006 Whirlpool Spray
1Cover, Top
2Duct, Air Outlet
3WP4449809 Whirlpool Screw
4WP8303972 Whirlpool Blower
68285593 Whirlpool Oven Wire Cover
7WPW10111628 Whirlpool Transformer
9WP8203546 Whirlpool Terminal Block
10Screw
118303684 Whirlpool Oven Vent Control
12Side, Control Top (Right)
12Side, Control Top (Left)
13Back, Control
