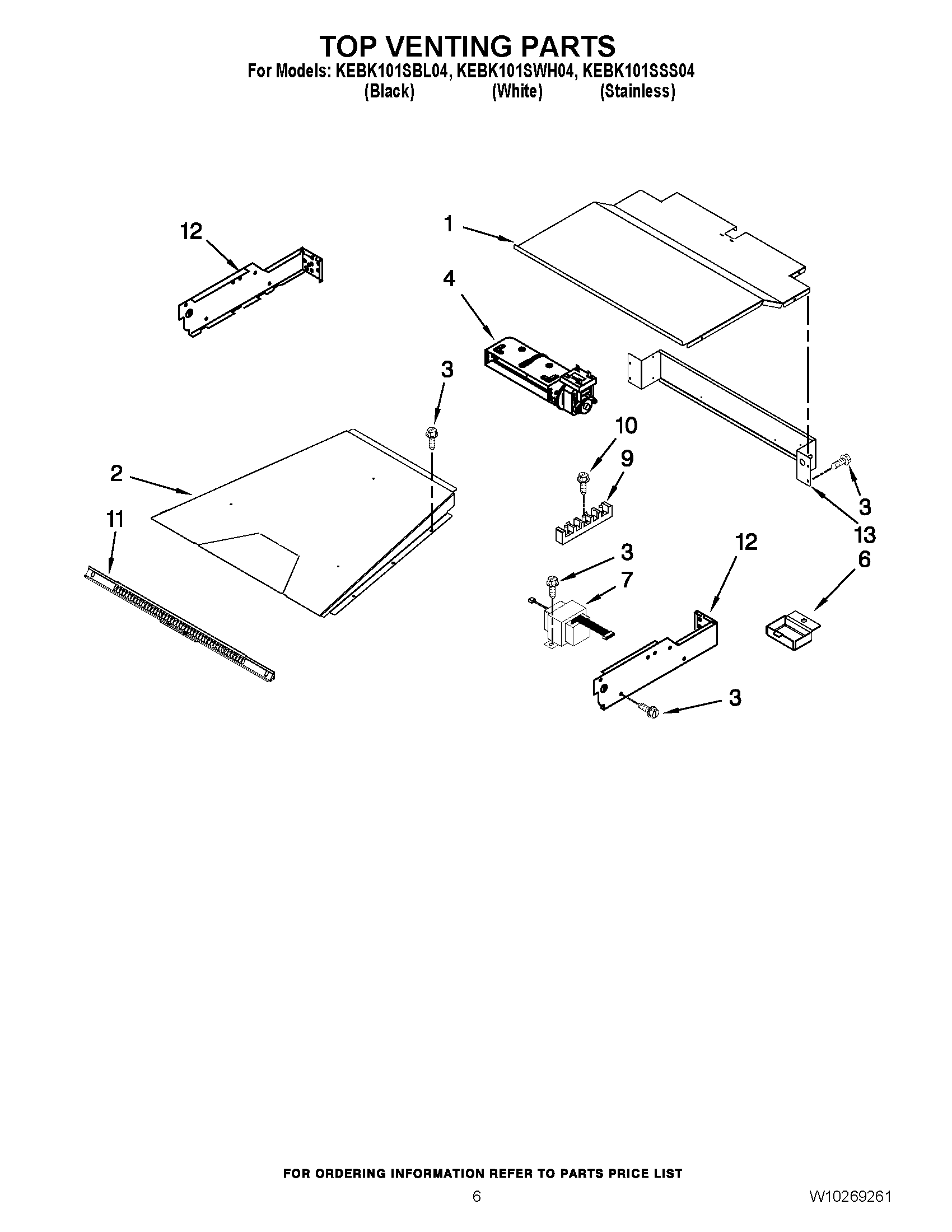

KEBK101SSS04 05 – TOP VENTING PARTS

KEBK101SSS04 05 – TOP VENTING PARTS

Written by

in

KEBK101SSS04 05 – TOP VENTING PARTS

Products

PositionProduct
1Cover, Top
2Duct, Air Outlet
3SCREW
4WP8303972 Whirlpool Blower
68285593 Whirlpool Oven Wire Cover
7WPW10111628 Whirlpool Transformer
9BLOCK, TERMINAL
10Screw
118303684 Whirlpool Oven Vent Control
12Side, Control Top (Right)
12Side, Control Top (Left)
13Back, Control
