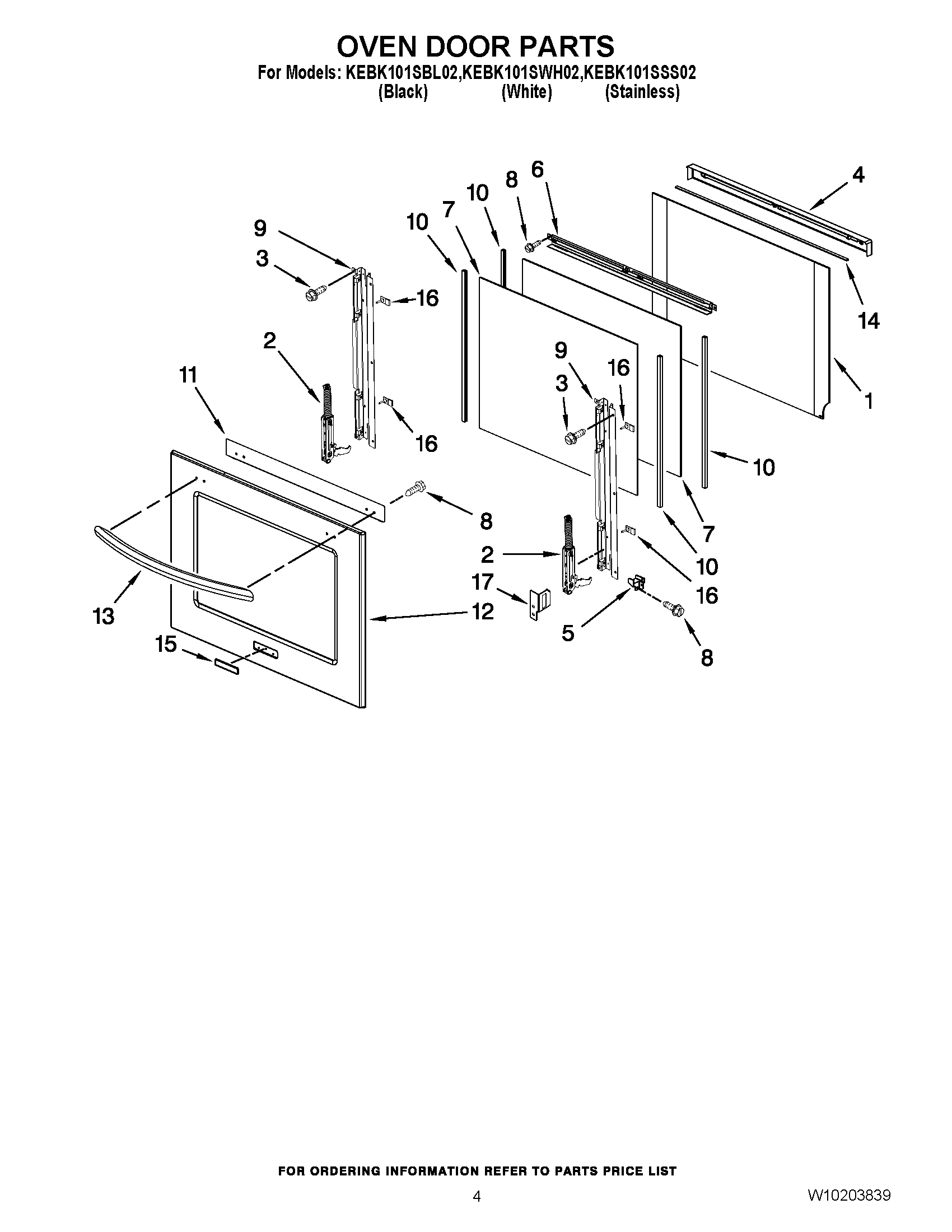

KEBK101SWH02 03 – OVEN DOOR PARTS

Products

Position	Product
1	W10755522 Whirlpool Door Glass
2	Hinge, Door
3	WP3196183 Whirlpool Screw
4	Vent, Door Top
5	8304378 Whirlpool Oven Support Bracket
5	Bracket, Door (Right)
6	8303746 Whirlpool Bracket Support
7	Glass, Inner
8	WP4449743 Whirlpool Screw
9	Frame, Door Side
10	W10754409 Whirlpool Seal
11	Bracket, Handle
12	Door Glass, Assembly
12	Door Glass, Assy Lower Includes 17 (Black)
12	Door Glass, Assy Lower Includes 17 (White)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Door Handle
14	W10754473 Whirlpool Seal
15	Badge (White)
15	Badge (Black)
15	Badge (Stainless)
16	Bumper, Glass
17	COVER,HINGE (LEFT)
17	COVER,HINGE (RIGHT)
