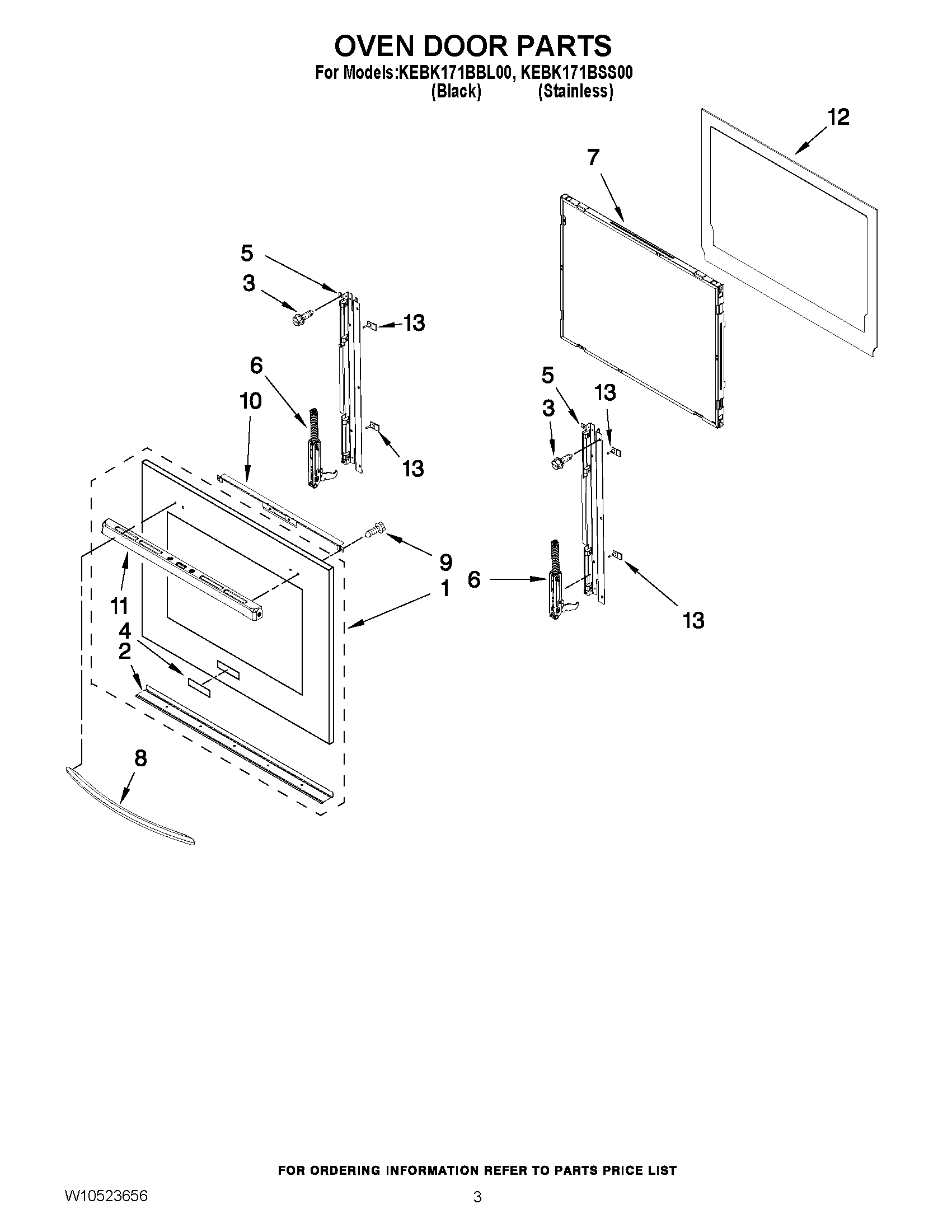

KEBK171BSS00 02 – OVEN DOOR PARTS

KEBK171BSS00 02 – OVEN DOOR PARTS

Written by

in

KEBK171BSS00 02 – OVEN DOOR PARTS

Products

PositionProduct
1ASSEMBLY, WINDOW PACK (STAINLESS)
1ASSEMBLY, WINDOW PACK (BLACK)
2BRACKET, LOWER DOOR
3SCREW
4WPW10243391 Whirlpool Refrigerator Nameplate
4WPW10243392 Whirlpool Dishwasher Nameplate
5BRACKET, DOOR SIDE LEFT
5WPW10581826 Whirlpool Support Bracket
6W11642291 Whirlpool Door Hinge
7ASSEMBLY, WINDOW PACK
8WPW10437675 Whirlpool Door Handle
8W10284919 Whirlpool Handle Door
9WP8533988 Whirlpool Screw Fastener
10W10459352 Whirlpool Glass Bracket
11VENT, DOOR TOP
12WPW10335921 Whirlpool Glass Frame
13WPW10323551 Whirlpool Bumper
