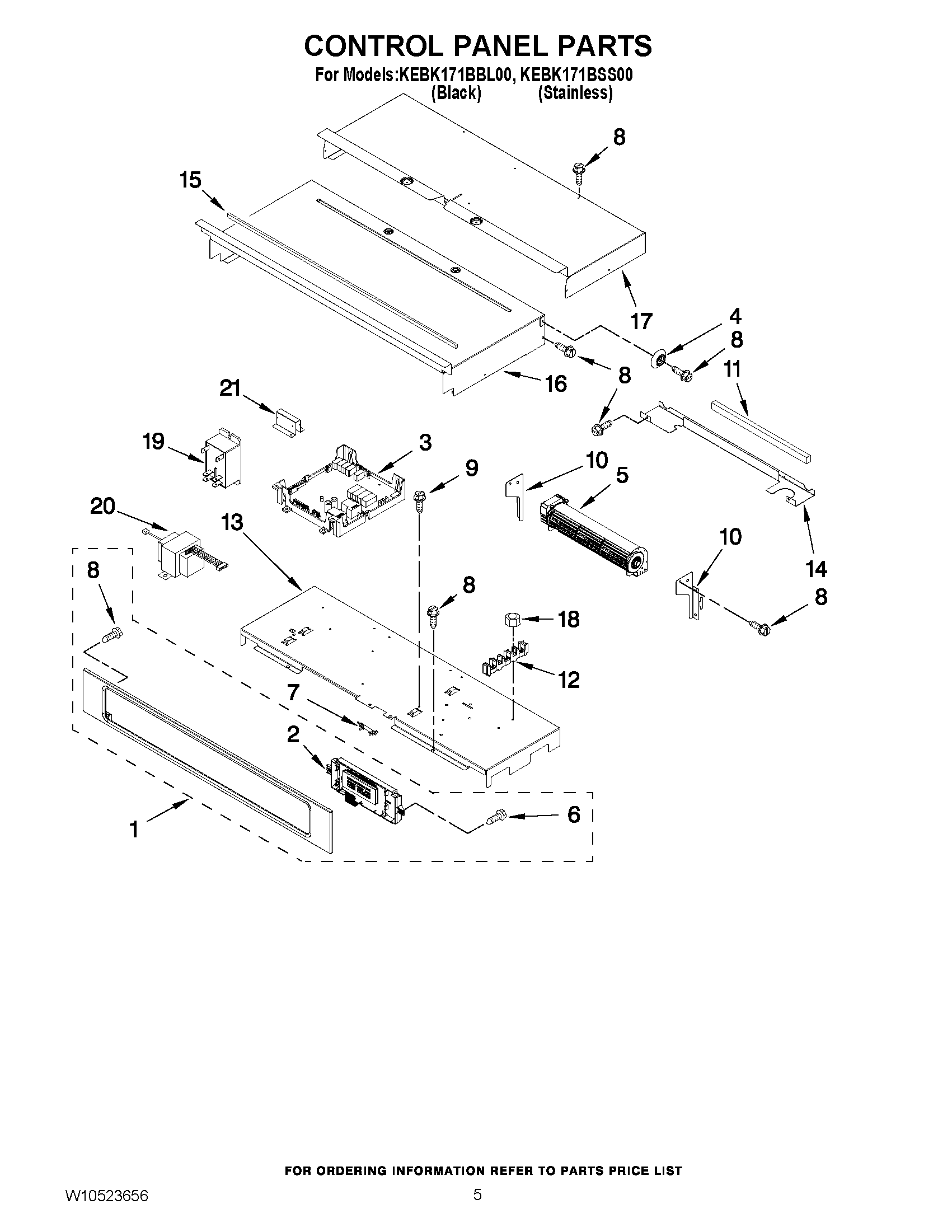

KEBK171BSS00 04 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
1W10570054 Whirlpool Control Panel
2WPW10751146-includeCORE Whirlpool WPW10751146 Refrigerator Electronic Control Board + Core
3BOARD, GOC
4W10363824 Whirlpool Spacer
5WPW10260254 Whirlpool Blower
6SCREW (BLACK)
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10283078 Whirlpool Mounting Bracket
10BRACKET, BLOWER LEFT
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10283005 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15WPW10657548 Whirlpool Foam Seal
16W10318193 Whirlpool Cabinet Top
17W10318195 Whirlpool Cabinet Top
18Nut
19WP9752759 Whirlpool Relay
20WPW10354052 Whirlpool Transformer
21W10347585 Whirlpool Relay Bracket
