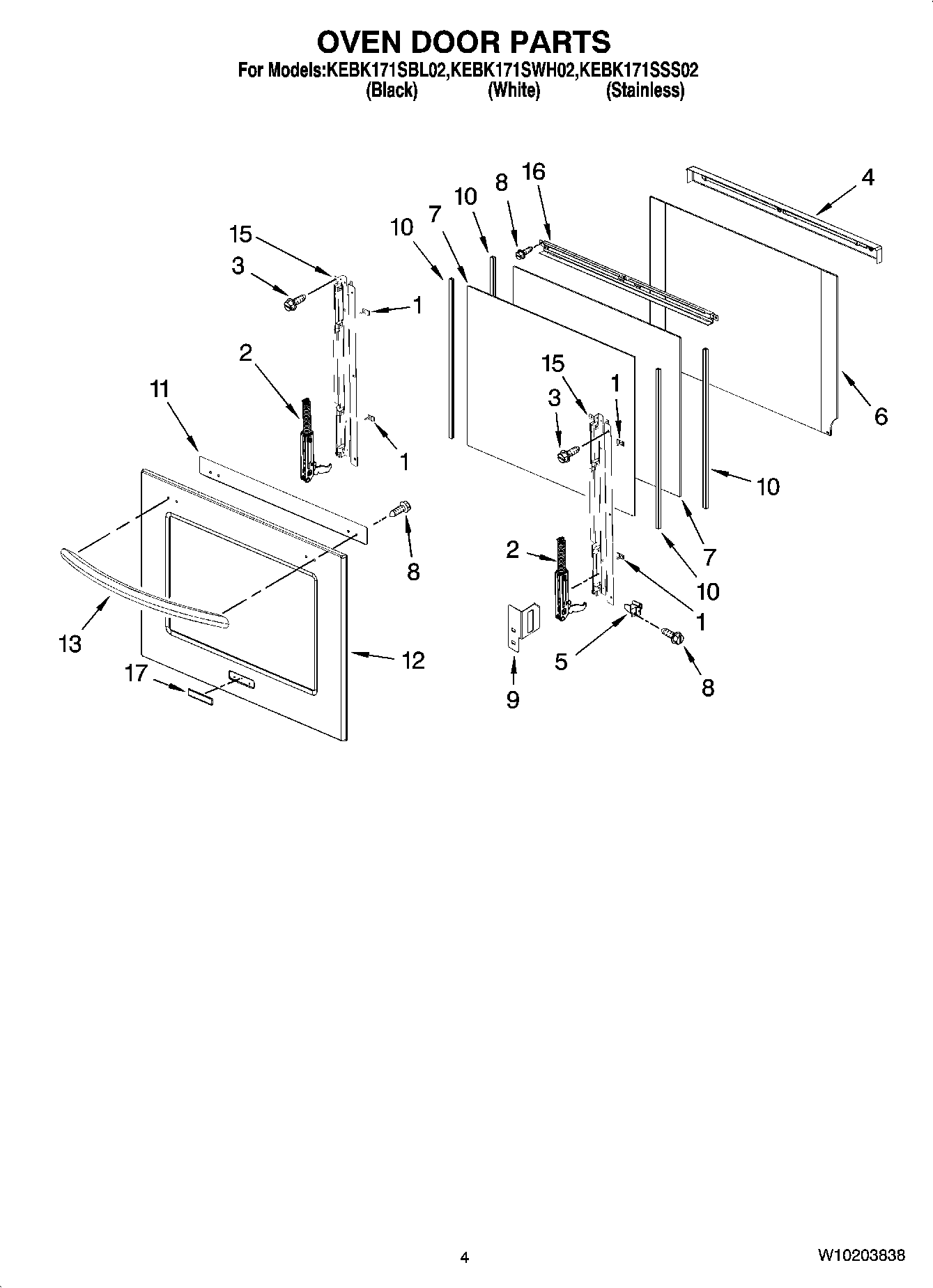

KEBK171SBL02 03 – OVEN DOOR PARTS

Products

PositionProduct
1Bumper, Glass
2HINGE, DOOR
3WP3196183 Whirlpool Screw
4Vent, Door Top
58304378 Whirlpool Oven Support Bracket
5Bracket, Door (Right)
6Door Liner
7Glass, Inner
8WPY706189 Whirlpool Stove Screw
9COVER,HINGE (LEFT)
9COVER,HINGE (RIGHT)
10W10754409 Whirlpool Seal
11Bracket, Handle
12Door Glass, Assembly Includes 17 (White)
12Door Glass, Assembly Includes 17 (Stainless)
12Door Glass, Assembly Includes 17 (Black)
13Handle, Door (Black)
13Handle, Door (White)
13Handle, Door
15Frame, Door Side
16Door, Top Bracket
17Badge (Black)
17Badge (Stainless)
17Badge (White)
