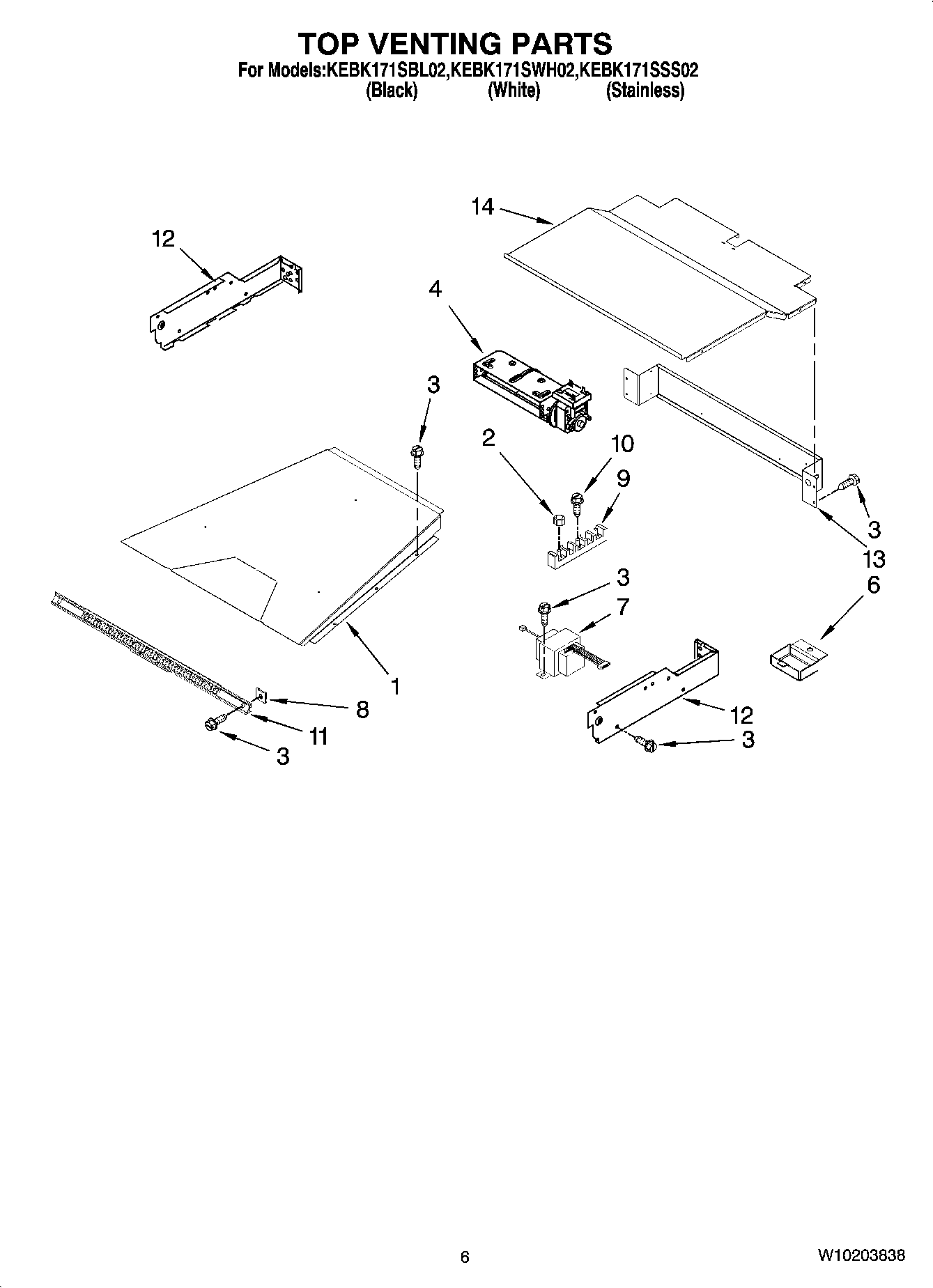

KEBK171SBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

KEBK171SBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KEBK171SBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WIRING HARNESS PARTS
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 591014
261900 Whirlpool Microwave Spray
Harness, Wire (Main)
Miscellaneous
Conduit, Single
Harness, Main
ADHESIVE
SPLICING WIRES–25FT. LENGTH
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Black 14 Ga.)
72017 Whirlpool Appliance Touch-Up Paint White
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
8528351 Whirlpool Clip
350930 Whirlpool White Spray Paint
W11209404 Whirlpool Wire Harness
Wire, 25` Roll (Red 14 Ga.)
W10231531 Whirlpool Wire Harness
WP4448950 Whirlpool Screw
1Duct, Air Outlet
2WP112432 Whirlpool Nut Assembly
3WP4449809 Whirlpool Screw
4WP8303972 Whirlpool Blower
68285593 Whirlpool Oven Wire Cover
7WPW10111628 Whirlpool Transformer
8WP4450118 Whirlpool Nut
9WP8203546 Whirlpool Terminal Block
10Screw
11Vent, Control Panel
12Side, Control Top (Left)
12Side, Control Top (Right)
13Back, Control
14Cover, Top
