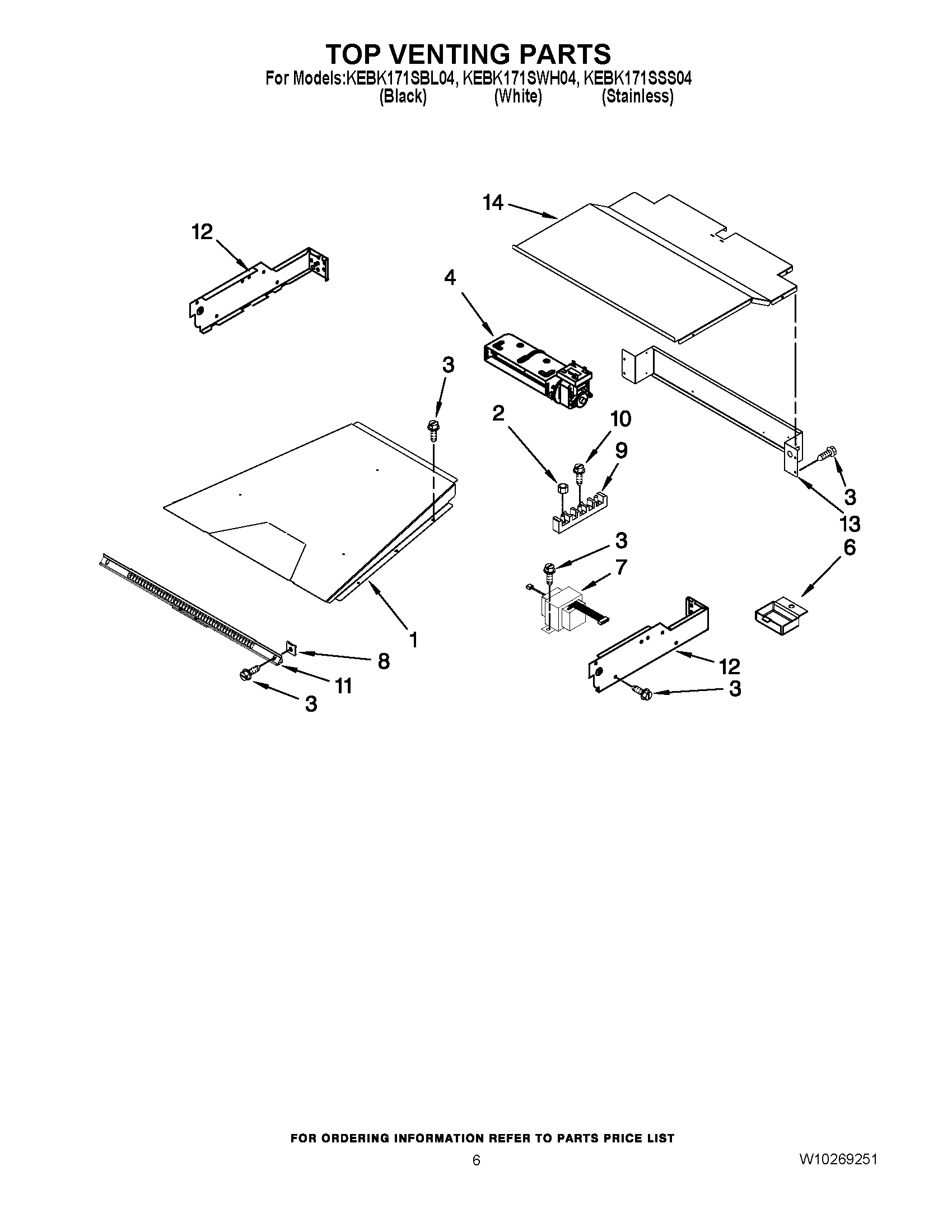

KEBK171SBL04 05 – TOP VENTING PARTS

KEBK171SBL04 05 – TOP VENTING PARTS

Written by

in

KEBK171SBL04 05 – TOP VENTING PARTS

Products

PositionProduct
1Duct, Air Outlet
2Nut
3WP4449809 Whirlpool Screw
4WP8303972 Whirlpool Blower
68285593 Whirlpool Oven Wire Cover
7WPW10111628 Whirlpool Transformer
8WP4450118 Whirlpool Nut
9WP8203546 Whirlpool Terminal Block
10Screw
11Vent, Control Panel
12Side, Control Top (Right)
12Side, Control Top (Left)
13Back, Control
14Cover, Top
