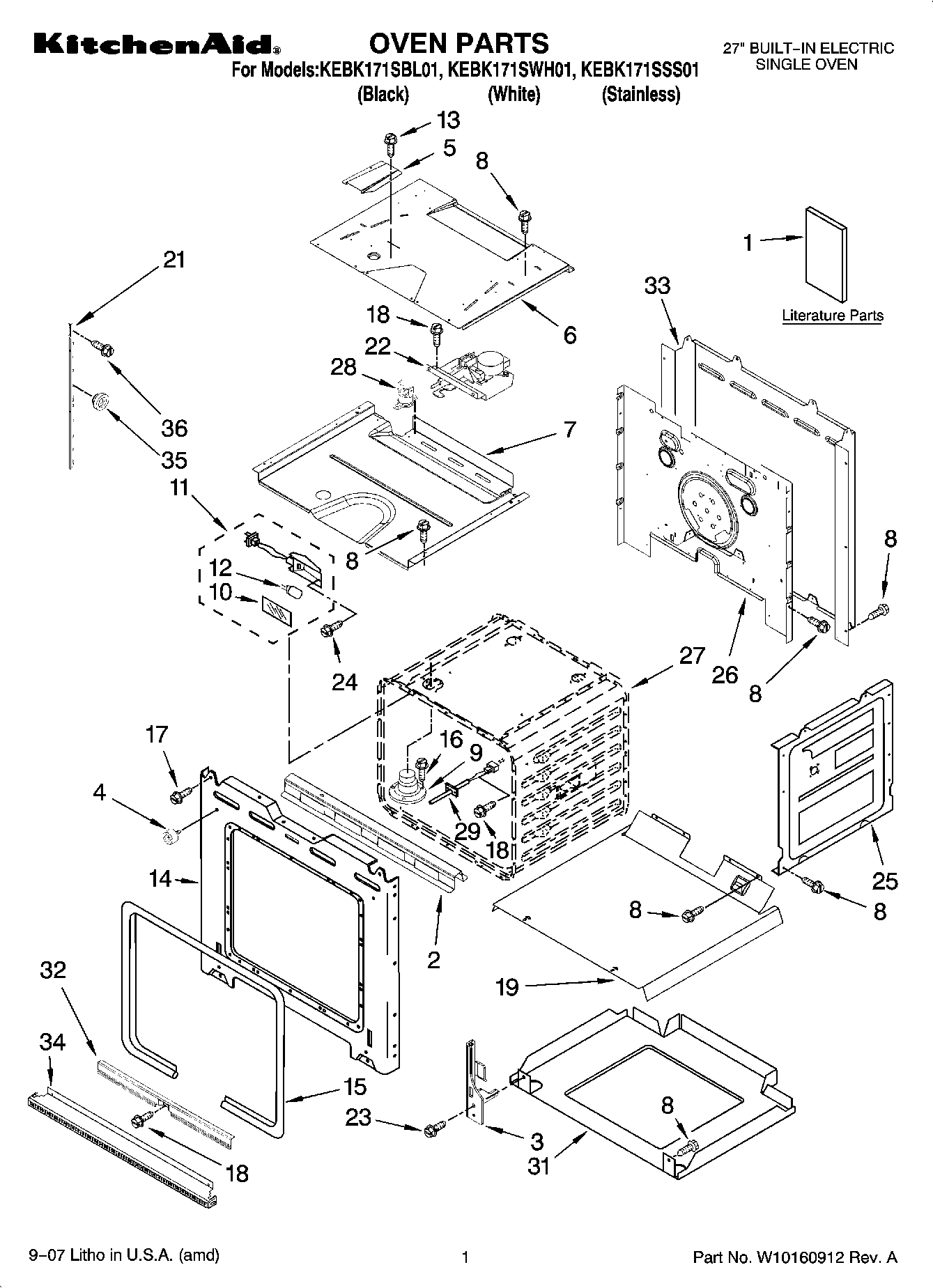

KEBK171SSS01 01 – OVEN PARTS

Products

Position	Product
1	Safe Cooking Tips (French)
1	Tech Sheet (English)
1	Use & Care Guide
1	Tech Sheet (French)
1	Safe Cooking Tips
1	Installation Instructions
1	Easy Set Guide
1	Installation Instructions (Undercounter Oven)
2	Bracket, Base
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	Exhaust,Vent Slope
6	Divider, Vent
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	Gasket, Door
16	SCREW
17	Screw
18	WP4449154 Whirlpool Screw
19	Support, Insulation
21	Mounting Rail, Side Right (Black)
21	Mounting Rail, Side Left (Black)
21	Mounting Rail, Side Right (White)
21	Mounting Rail, Side Left (White)
22	W11029221 Whirlpool Door Latch
23	WP4449743 Whirlpool Screw
24	4449748 Whirlpool Oven Screw
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WP8304452 Whirlpool Range Thermal Fuse
29	WPW10131825 Whirlpool Oven Temperature Sensor
31	Base, Chassis
32	Retainer, Gasket
33	Cover, Back
34	Trim, Bottom (White)
34	Trim, Bottom (Black)
34	Trim, Bottom (Stainless)
35	WP4448444 Whirlpool Grommet
36	W10142289 Whirlpool Air Conditioner Screw
36	Insulation, Back
36	Insulation, Wrap
36	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
