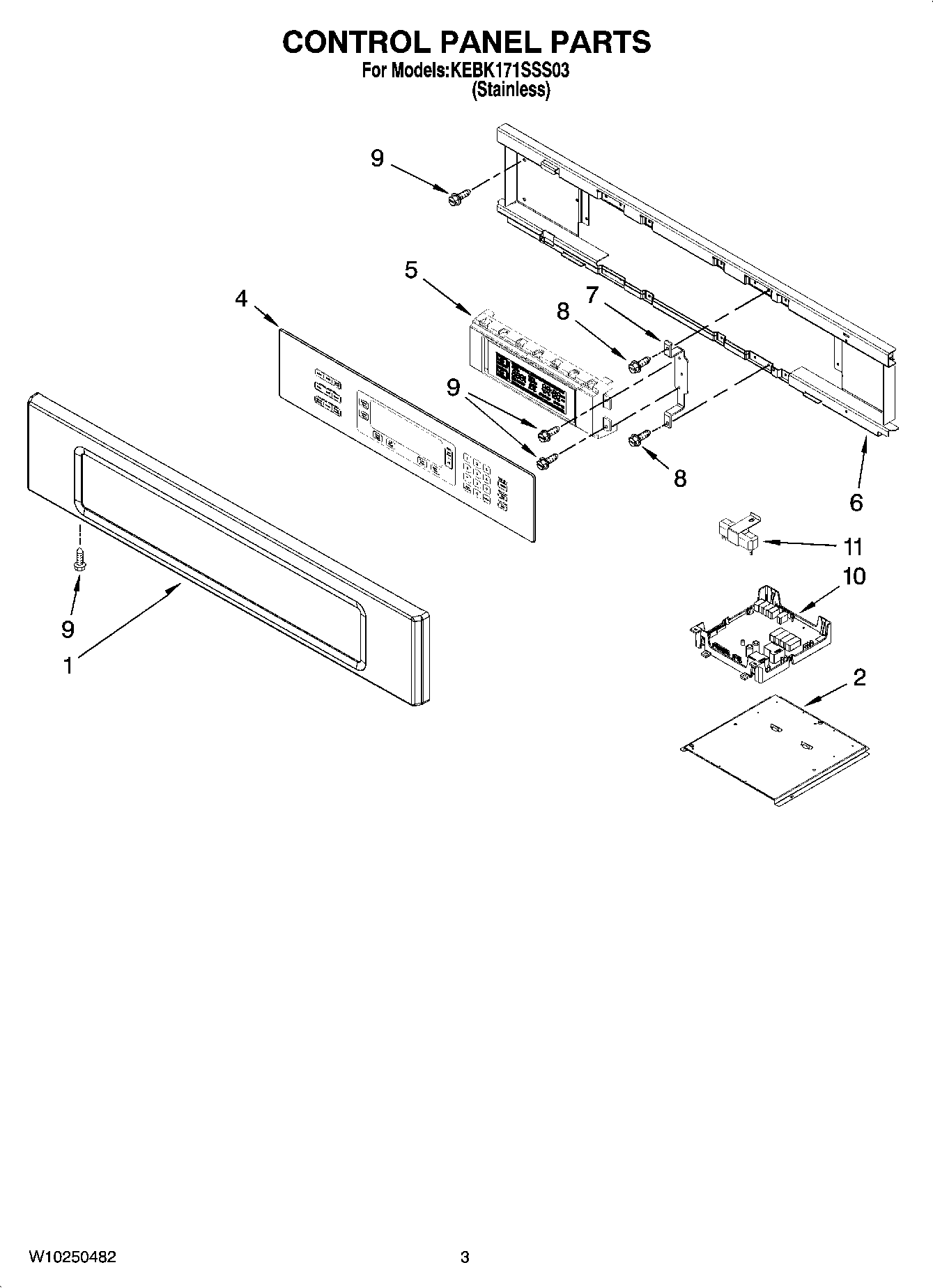

KEBK171SSS03 02 – CONTROL PANEL PARTS

KEBK171SSS03 02 – CONTROL PANEL PARTS

Written by

in

KEBK171SSS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control
2Support Appliance Manager
4Control Panel, Glass Touch
5User Interface
6Backer, Control
7Bracket,Enclosure
8WP4449154 Whirlpool Screw
9WP3400832 Whirlpool Screw
10Appliance Manager
11Resistor, Drop
