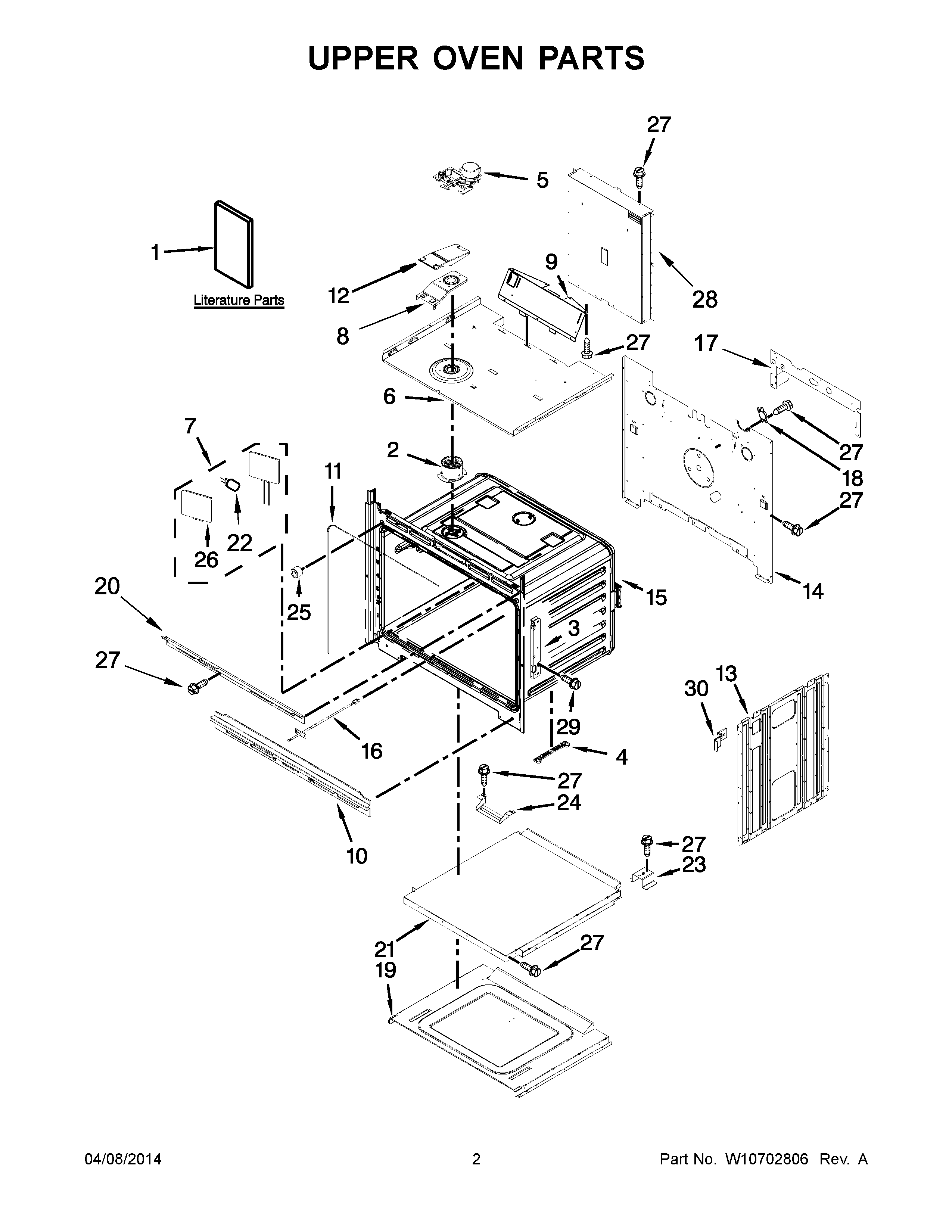

KEBK206BSS01 02 – UPPER OVEN PARTS

Products

Position	Product
NI	W11684789 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688731 Whirlpool Insulation
1	TECH SHEET (ENGLISH/FRENCH)
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
8	W10616809 Whirlpool Vent Tube
9	W10904163 Whirlpool Vent Deflector
10	VENT, CENTER 30“
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	PROBE, SENSOR
17	BRACKET, U-SHAPE
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	VENT, TOP 30“
21	WPW10283008 Whirlpool Access Cover
22	WPW10472384 Whirlpool Light Bulb
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	W10318196 Whirlpool BA Chassis
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
