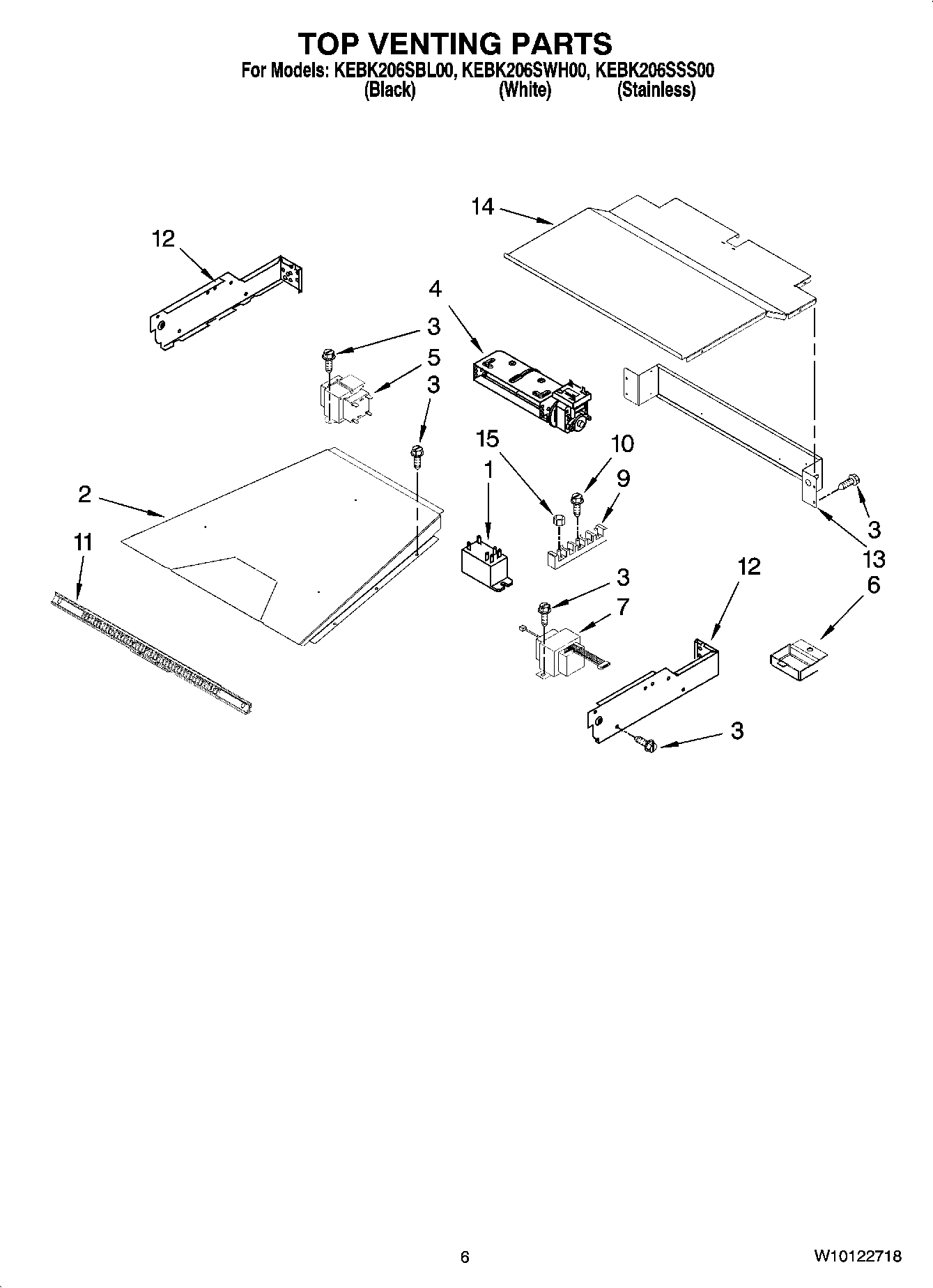

KEBK206SBL00 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI82910A9
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WPL ARI82909A1
	WPL ARI82908A5
	Harness, Main
	WPL ARI82911A2
	Conduit, Double
	Harness, Wire (Main)
	Cleaner, Stainless Steel
	261900 Whirlpool Microwave Spray
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	4450800 Whirlpool Oven Screw
	350930 Whirlpool White Spray Paint
	WPW10339879 Whirlpool Wire Tie
	Wire, 25` Roll (Black 14 Ga.)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	Spacer, Harness
	16515 Whirlpool Clip
	W11209404 Whirlpool Wire Harness
	WP4448950 Whirlpool Screw
	W10231531 Whirlpool Wire Harness
1	WP9752759 Whirlpool Relay
2	Exhaust Duct
3	WP4449809 Whirlpool Screw
4	WP8303972 Whirlpool Blower
5	WP9760588 Whirlpool Transformer
6	8285593 Whirlpool Oven Wire Cover
7	WPW10111628 Whirlpool Transformer
9	WP8203546 Whirlpool Terminal Block
10	Screw
11	8303684 Whirlpool Oven Vent Control
12	Side, Control Top (Left)
12	Side, Control Top (Right)
13	Back, Control
14	Cover, Top
15	WP112432 Whirlpool Nut Assembly
