KEBK206SBL04 01 – OVEN PARTS
Written by
in

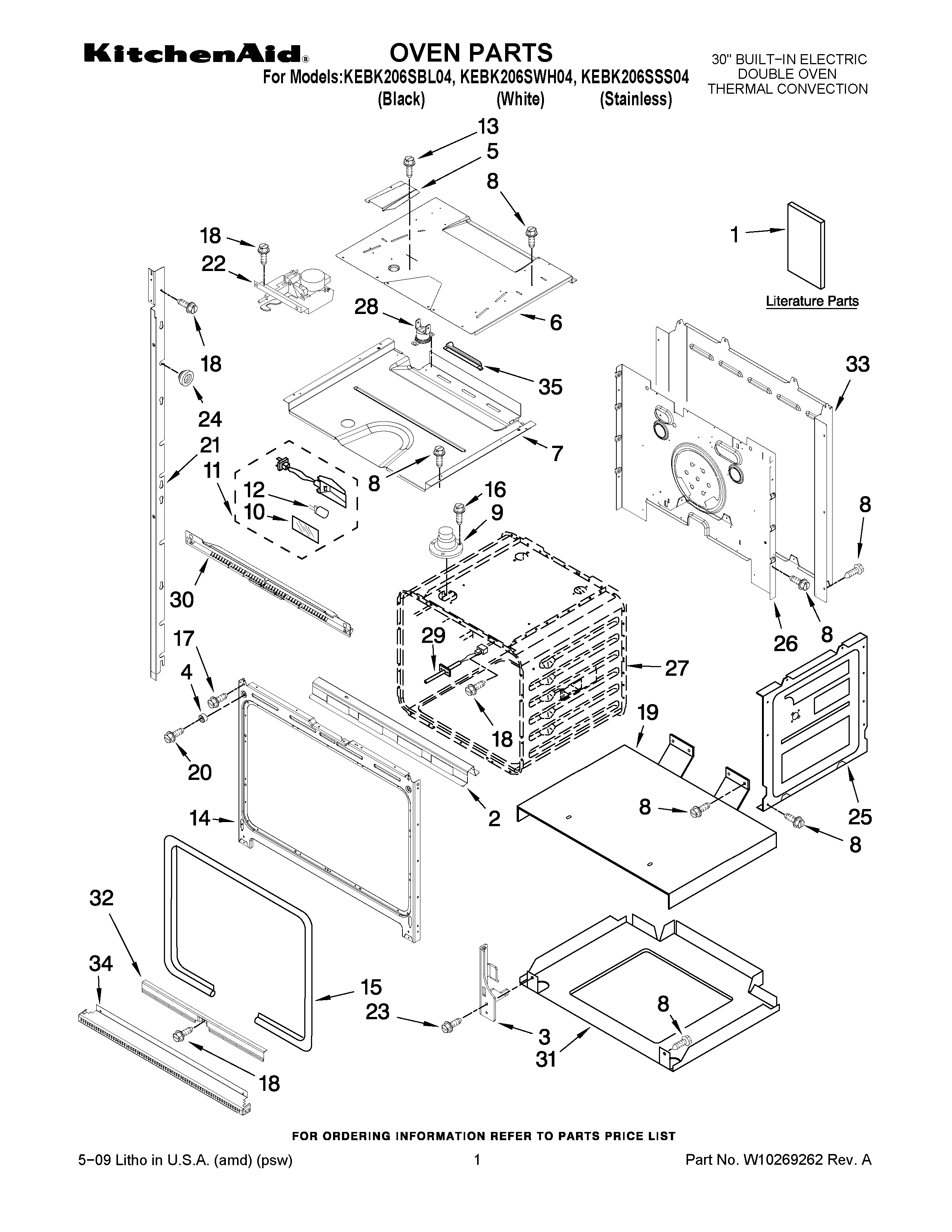

KEBK206SBL04 01 – OVEN PARTS
Products
Position
Product
NI
Insulation, Back
NI
Insulation, Wrap
1
Tech Sheet (English)
1
Installation Instructions
1
Easy Set Guide
1
Tech Sheet (French)
1
Use & Care Guide
1
Safer Cooking Tips (French)
1
SAFER COOKING TIPS (ENGLISH
2
Bracket, Base
3
WP4455606 Whirlpool Right Hand Hinge
3
WP4455605 Whirlpool Left Hand Hinge
4
W10105790 Whirlpool Bumper
5
Exhaust,Vent Slope
6
Divider, Vent
7
Top Chassis
8
WP4449809 Whirlpool Screw
9
W10861715 Whirlpool Vent Tube
10
W10169756 Whirlpool Light Lens
11
WPW10307114 Whirlpool Light
12
BULB-LIGHT
13
WP3400832 Whirlpool Screw
14
Frame, Front
15
WP8304493 Whirlpool Door Gasket
16
SCREW
17
Screw
18
WP4449154 Whirlpool Screw
19
Support, Insulation
20
WP4450038 Whirlpool Screw
21
Mounting Rail, Side Left (Black)
21
Mounting Rail, Side Right (Black)
21
Mounting Rail, Side Left (White)
21
Mounting Rail, Side Right (White)
22
W11029221 Whirlpool Door Latch
23
WP4449743 Whirlpool Screw
24
WP4448444 Whirlpool Grommet
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
Liner, Oven (Not serviceable)
28
WP8304452 Whirlpool Range Thermal Fuse
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
Center Vent
31
Base, Chassis
32
Retainer, Gasket
33
Cover, Back
34
Trim, Bottom Vent
34
Trim, Bottom Vent (Black)
34
Trim, Bottom Vent (White)
35
BRACKET, THERMOSTAT
←
