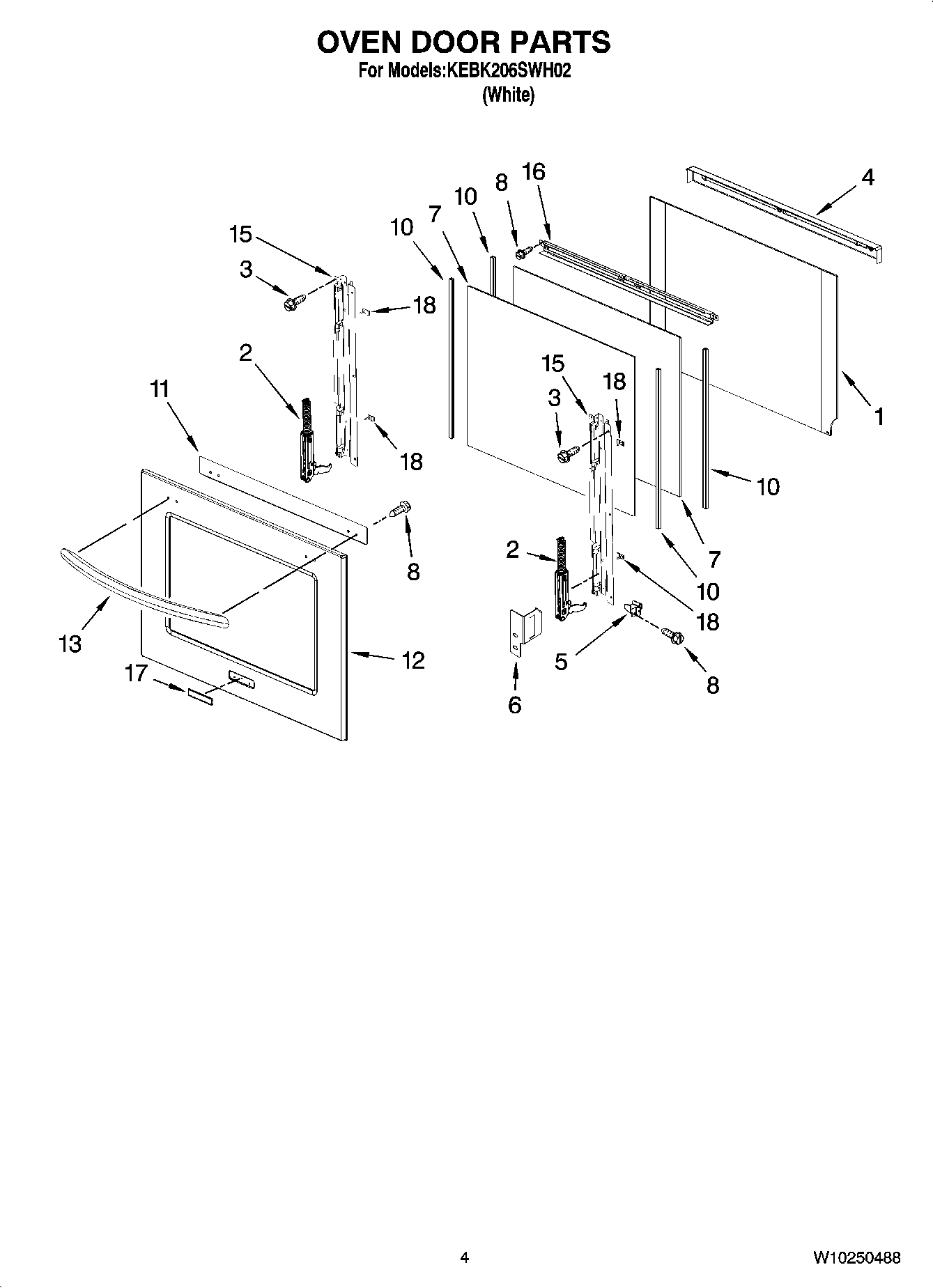

KEBK206SWH02 03 – OVEN DOOR PARTS

KEBK206SWH02 03 – OVEN DOOR PARTS

Written by

in

KEBK206SWH02 03 – OVEN DOOR PARTS

Products

PositionProduct
1W10755522 Whirlpool Door Glass
2Hinge, Door
3WP3196183 Whirlpool Screw
4Vent, Door Top
5Bracket, Door (Right)
58304378 Whirlpool Oven Support Bracket
6COVER,HINGE (RIGHT)
6COVER,HINGE (LEFT)
7Glass, Inner
8WP4449743 Whirlpool Screw
10W10754409 Whirlpool Seal
11Bracket, Handle
12Door Glass, Assy Lower Includes 17 (White)
12Door Glass, Assy Upper No Nameplate (White)
13Handle, Door (White)
15Frame, Door Side
168303746 Whirlpool Bracket Support
17Badge (White)
18Bumper, Glass
