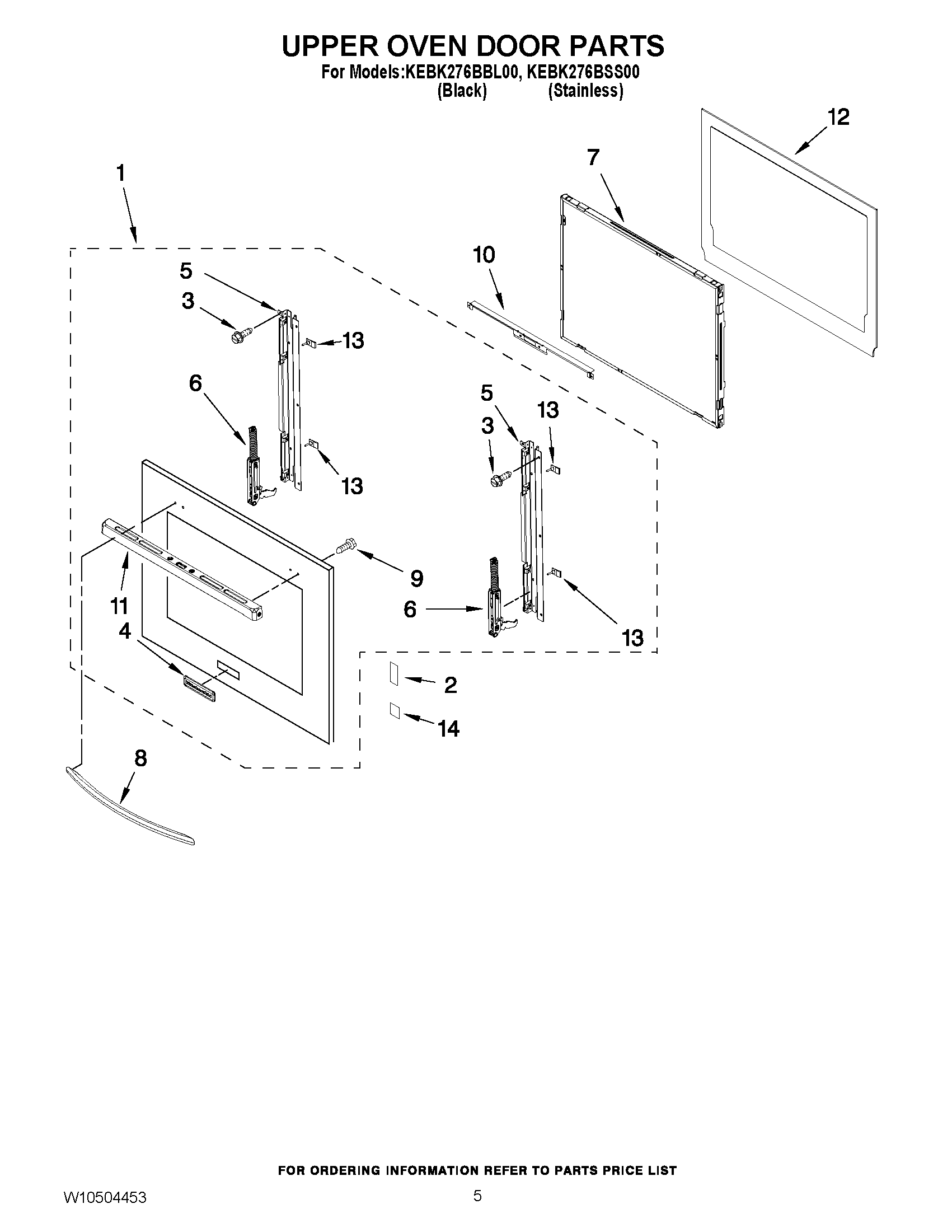

KEBK276BBL00 03 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR GLASS (BLACK)
1	ASSEMBLY, DOOR GLASS (STAINLESS)
2	W10840861 Whirlpool Spacer
3	SCREW
4	WPW10243391 Whirlpool Refrigerator Nameplate
4	WPW10243392 Whirlpool Dishwasher Nameplate
5	RAIL, DOOR SIDE (RIGHT)
5	RAIL, DOOR SIDE (LEFT)
6	W11642291 Whirlpool Door Hinge
7	ASSEMBLY, WINDOW PACK
8	WPW10437675 Whirlpool Door Handle
8	W10284919 Whirlpool Handle Door
9	WP8533988 Whirlpool Screw Fastener
10	W10459352 Whirlpool Glass Bracket
11	VENT, DOOR TOP
12	WPW10335921 Whirlpool Glass Frame
13	WPW10323551 Whirlpool Bumper
14	WPW10517428 Whirlpool Spacer
