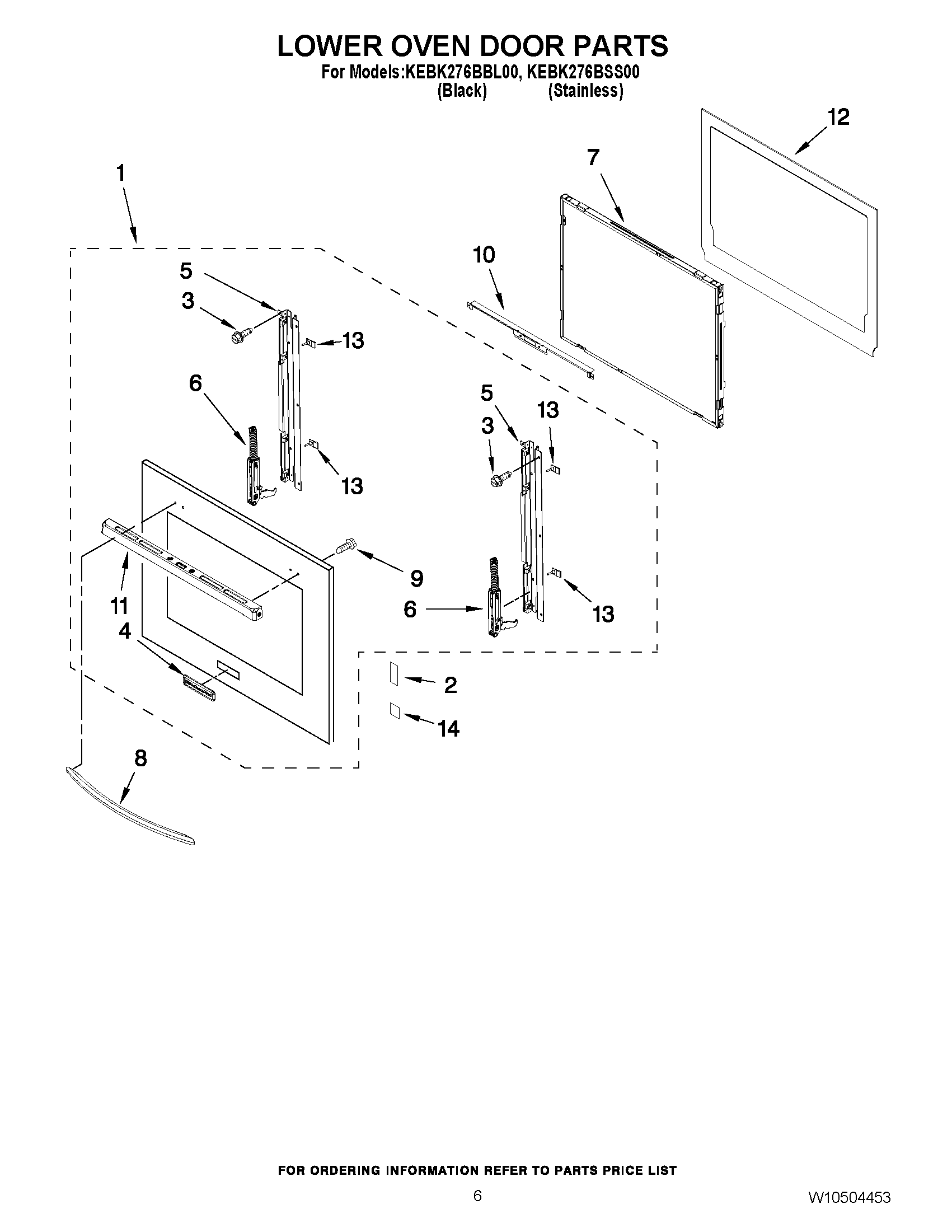

KEBK276BBL00 04 – LOWER OVEN DOOR PARTS

KEBK276BBL00 04 – LOWER OVEN DOOR PARTS

Written by

in

KEBK276BBL00 04 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1ASSEMBLY, WINDOW PACK (STAINLESS)
1ASSEMBLY, WINDOW PACK (BLACK)
2W10840861 Whirlpool Spacer
3SCREW
4WPW10243392 Whirlpool Dishwasher Nameplate
4WPW10243391 Whirlpool Refrigerator Nameplate
5RAIL, DOOR SIDE (LEFT)
5RAIL, DOOR SIDE (RIGHT)
6W11642291 Whirlpool Door Hinge
7ASSEMBLY, WINDOW PACK
8WPW10437675 Whirlpool Door Handle
8W10284919 Whirlpool Handle Door
9WP8533988 Whirlpool Screw Fastener
10W10459352 Whirlpool Glass Bracket
11VENT, DOOR TOP
12WPW10335921 Whirlpool Glass Frame
13WPW10323551 Whirlpool Bumper
14WPW10517428 Whirlpool Spacer
