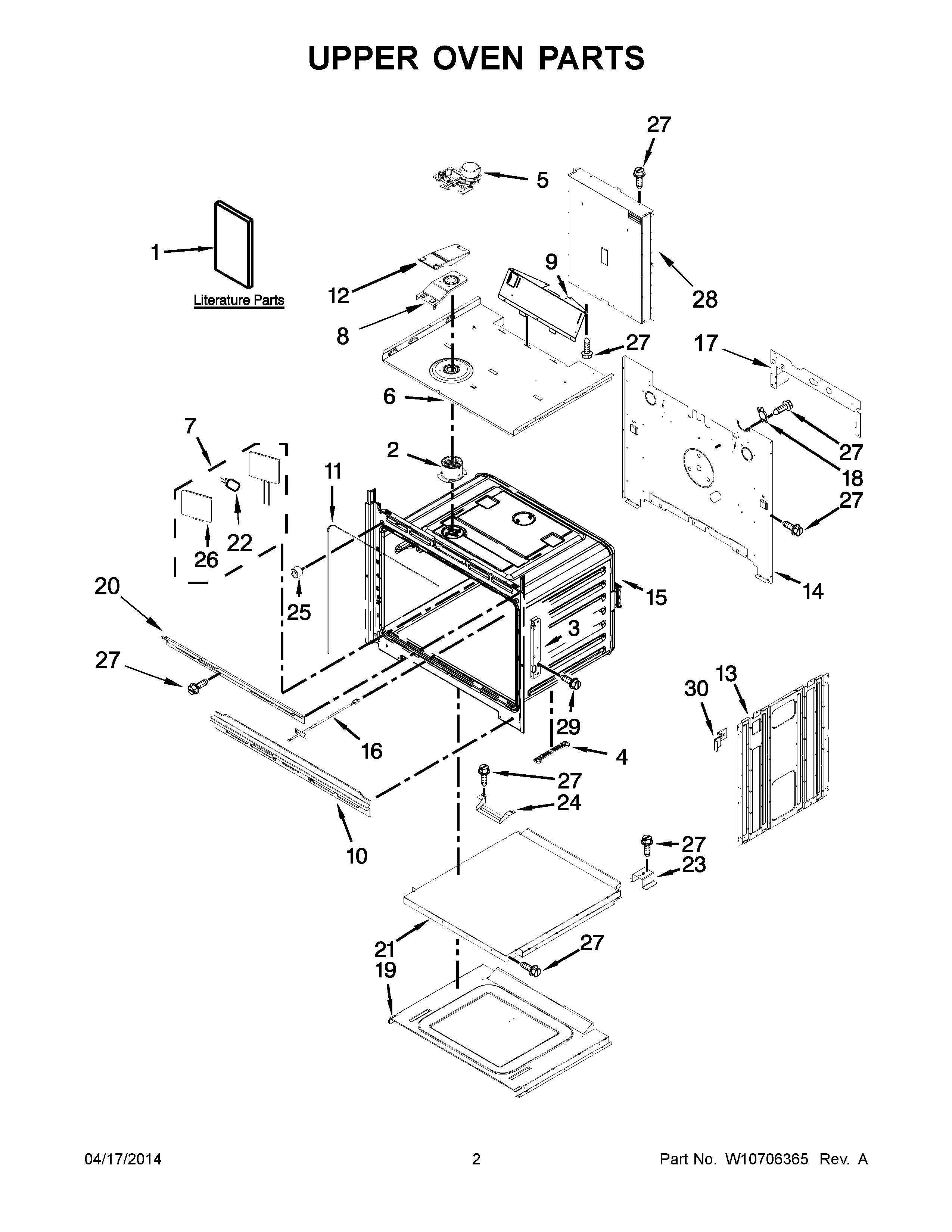

KEBK276BBL01 02 – UPPER OVEN PARTS
Written by
in
KEBK276BBL01 02 – UPPER OVEN PARTS
Products
Position
Product
NI
W11688333 Whirlpool Insulation
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10520716 Whirlpool Insulation
1
TECH SHEET (ENGLISH/FRENCH)
1
INSTALLATION INSTRUCTIONS
1
USE & CARE GUIDE
2
W11240525 Whirlpool Vent Tube
3
W11613828 Whirlpool Hinge Receptacle
4
WPW10318220 Whirlpool Spacer
5
W10883049 Whirlpool Door Latch
6
CHASSIS, TOP
8
W10616809 Whirlpool Vent Tube
9
W10904163 Whirlpool Vent Deflector
10
W10283041 Whirlpool Exhaust Vent
11
W10856596 Whirlpool Oven Gasket
12
W10616810 Whirlpool Exhaust Cover
13
SIDE, CHASSIS
14
W10813734 Whirlpool Rear Cover
16
PROBE, SENSOR
17
BRACKET, U-SHAPE
18
WP4449751 Whirlpool Range Oven Thermostat Fix
19
BASE, CHASSIS
20
W10283037 Whirlpool Exhaust Vent
21
WPW10283008 Whirlpool Access Cover
22
WPW10472384 Whirlpool Light Bulb
23
W10213759 Whirlpool Support
24
W10351308 Whirlpool Support Bracket
25
WPW10351278 Whirlpool Bumper
26
WPW10519866 Whirlpool Light
27
SCREW
28
W10318196 Whirlpool BA Chassis
29
WPW10254050 Whirlpool Screw
30
W10347649 Whirlpool Spacer
←
