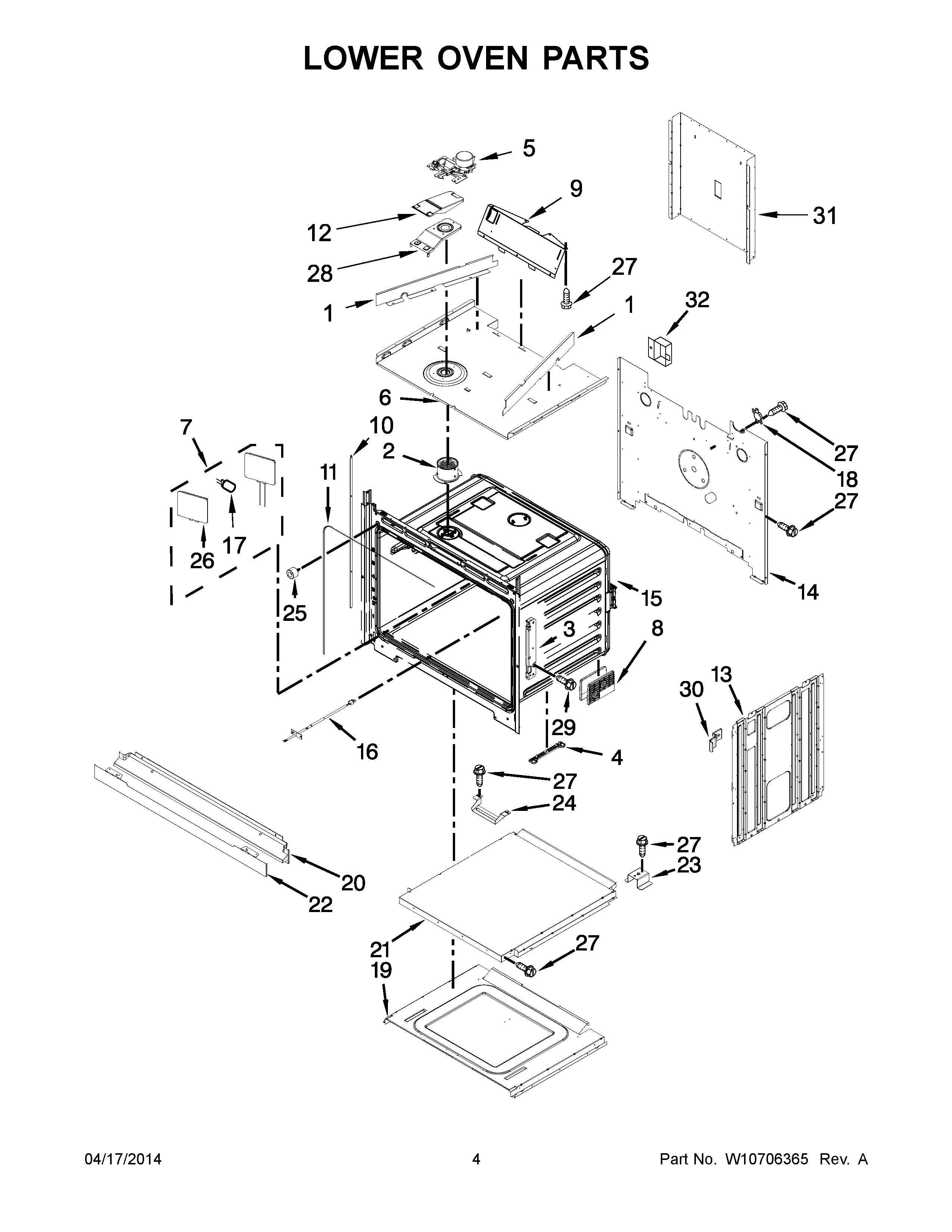

KEBK276BBL01 03 – LOWER OVEN PARTS

Products

Position	Product
NI	W11688333 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10520716 Whirlpool Insulation
1	CHASSIS, DEFLECTOR
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
8	W10821321 Whirlpool Leveling Foot
9	W10904163 Whirlpool Vent Deflector
10	W10536161 Whirlpool Oven Trim Cover Kit
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10813734 Whirlpool Rear Cover
16	PROBE, SENSOR
17	WPW10472384 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	W10351276 Whirlpool Oven Vent
20	WPW10327376 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10351237 Whirlpool Trim
22	WPW10327378 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10519866 Whirlpool Light
27	SCREW
28	W10616809 Whirlpool Vent Tube
29	WPW10254050 Whirlpool Screw
30	W10347649 Whirlpool Spacer
31	DUCT, CHASSIS BACK (LOWER)
32	8285593 Whirlpool Oven Wire Cover
