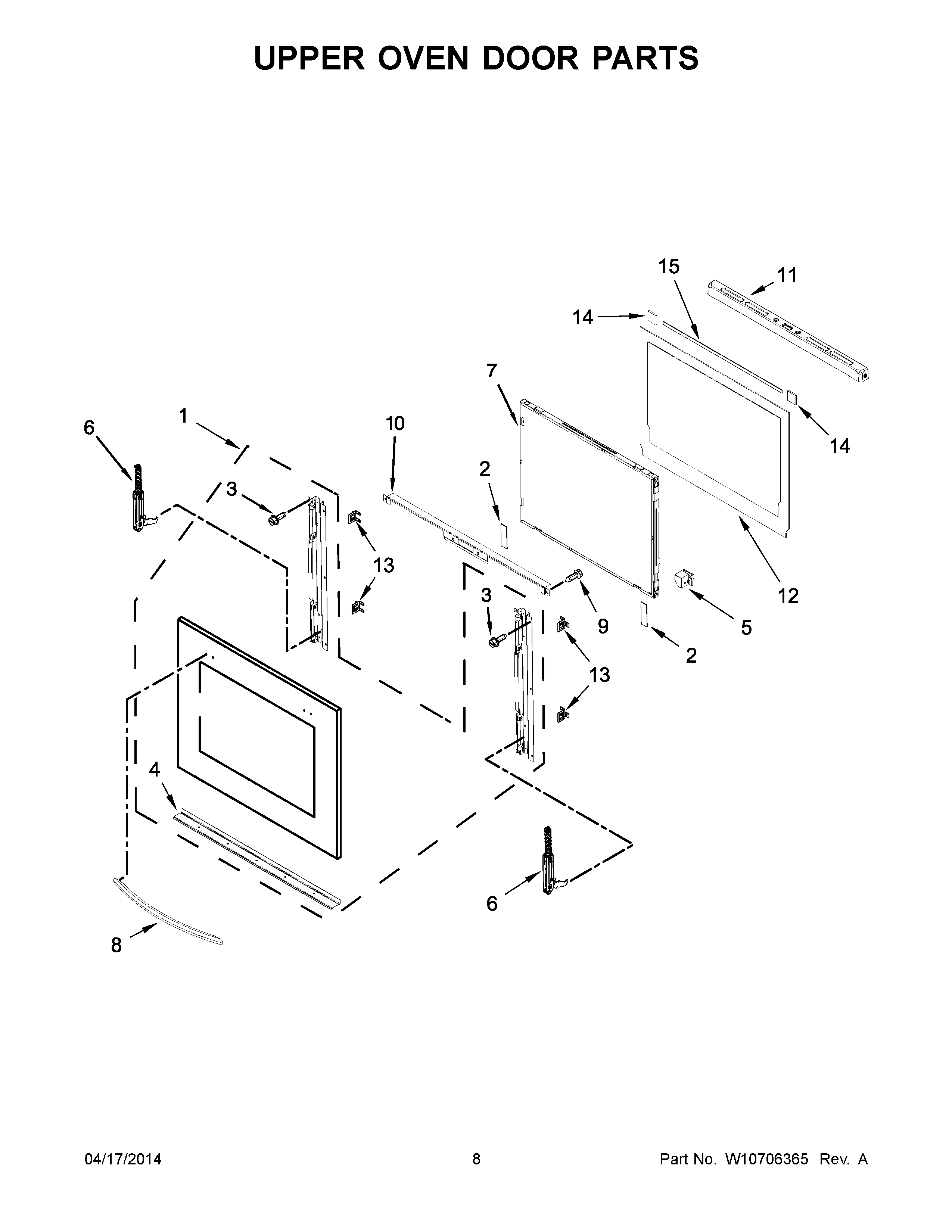

KEBK276BBL01 05 – UPPER OVEN DOOR PARTS

KEBK276BBL01 05 – UPPER OVEN DOOR PARTS

Written by

in

KEBK276BBL01 05 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR GLASS (BLACK)
1ASSEMBLY, DOOR GLASS (STAINLESS (UPPER))
2W10840861 Whirlpool Spacer
3SCREW
4BRACKET, LOWER DOOR
5WPW10581826 Whirlpool Support Bracket
5BRACKET, DOOR (LEFT)
6W11642291 Whirlpool Door Hinge
7ASSEMBLY, WINDOW PACK
8W10284919 Whirlpool Handle Door
8WPW10437675 Whirlpool Door Handle
9SCREW (BLACK)
10W10459352 Whirlpool Glass Bracket
11VENT, DOOR TOP
12WPW10335921 Whirlpool Glass Frame
13WPW10549747 Whirlpool Clip
14WPW10517428 Whirlpool Spacer
15PAD, VENT
