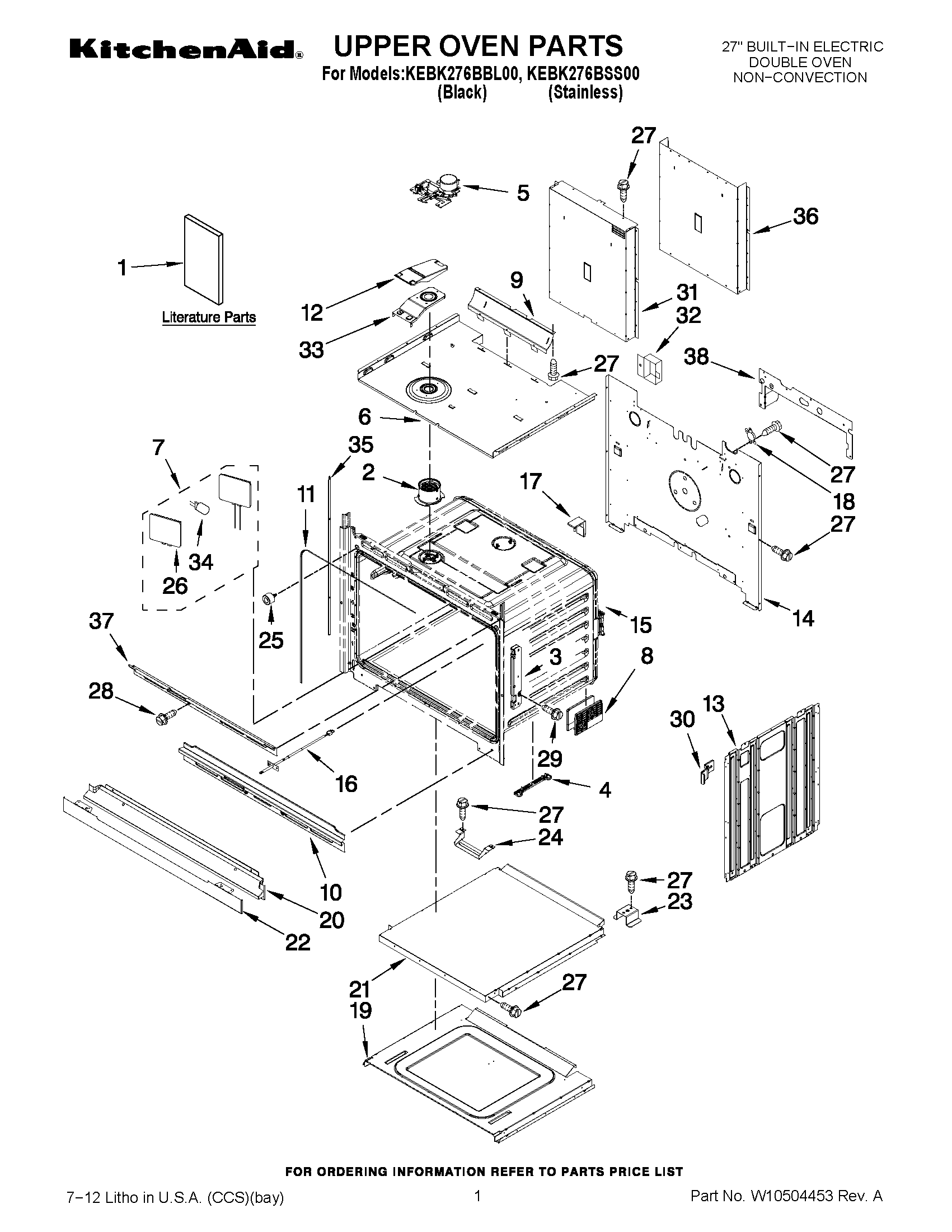

KEBK276BSS00 01 – UPPER OVEN PARTS

KEBK276BSS00 01 – UPPER OVEN PARTS

Written by

in

KEBK276BSS00 01 – UPPER OVEN PARTS

Products

PositionProduct
NIW11688333 Whirlpool Insulation
NIW10520716 Whirlpool Insulation
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1USE & CARE GUIDE
1TECH SHEET (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4WPW10318220 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6CHASSIS, TOP
8W10821321 Whirlpool Leveling Foot
9W10351258 Whirlpool Bracket
10W10283041 Whirlpool Exhaust Vent
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10282991 Whirlpool Rear Cover
15CABINET (NOT A SERVICEABLE PART)
16PROBE, SENSOR
17WPW10323551 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20W10351276 Whirlpool Oven Vent
20WPW10327376 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22WPW10351237 Whirlpool Trim
22WPW10327378 Whirlpool Trim
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28WP4450038 Whirlpool Screw
29WPW10254050 Whirlpool Screw
30W10347649 Whirlpool Spacer
31W10318196 Whirlpool BA Chassis
328285593 Whirlpool Oven Wire Cover
33W10616809 Whirlpool Vent Tube
34WPW10472384 Whirlpool Light Bulb
35W10536161 Whirlpool Oven Trim Cover Kit
36W10283000 Whirlpool Chassis Assembly
37W10283037 Whirlpool Exhaust Vent
38BRACKET, U-SHAPE
