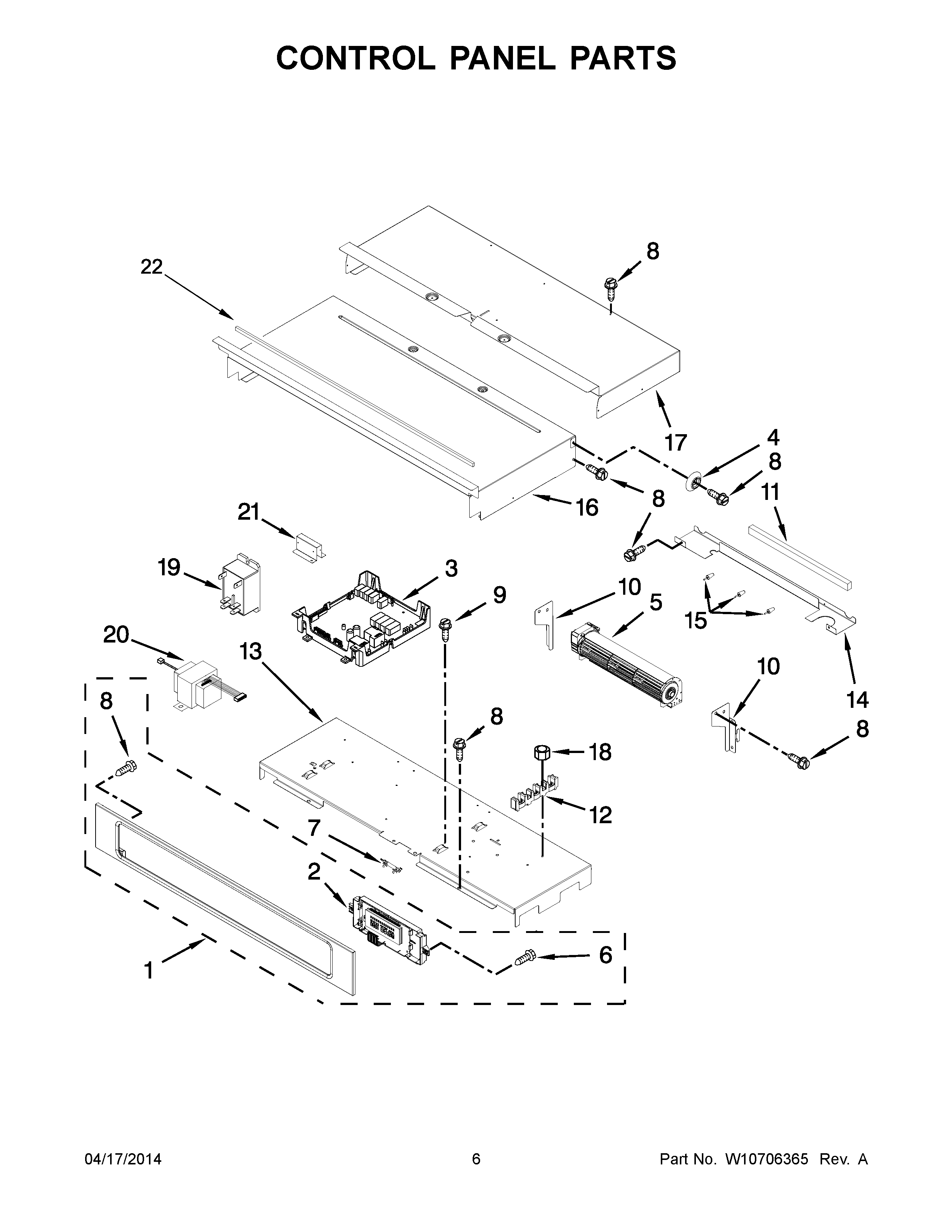

KEBK276BSS01 04 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
2WPW10751155-includeCORE Whirlpool WPW10751155 Refrigerator Electronic Control Board + Core
3BOARD, GOC
4W10363824 Whirlpool Spacer
5WPW10641253 Whirlpool Blower Motor
6SCREW (BLACK)
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10283005 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318193 Whirlpool Cabinet Top
17W10318195 Whirlpool Cabinet Top
18Nut
19WP9752759 Whirlpool Relay
20WPW10354052 Whirlpool Transformer
21W10347585 Whirlpool Relay Bracket
22WPW10657548 Whirlpool Foam Seal
