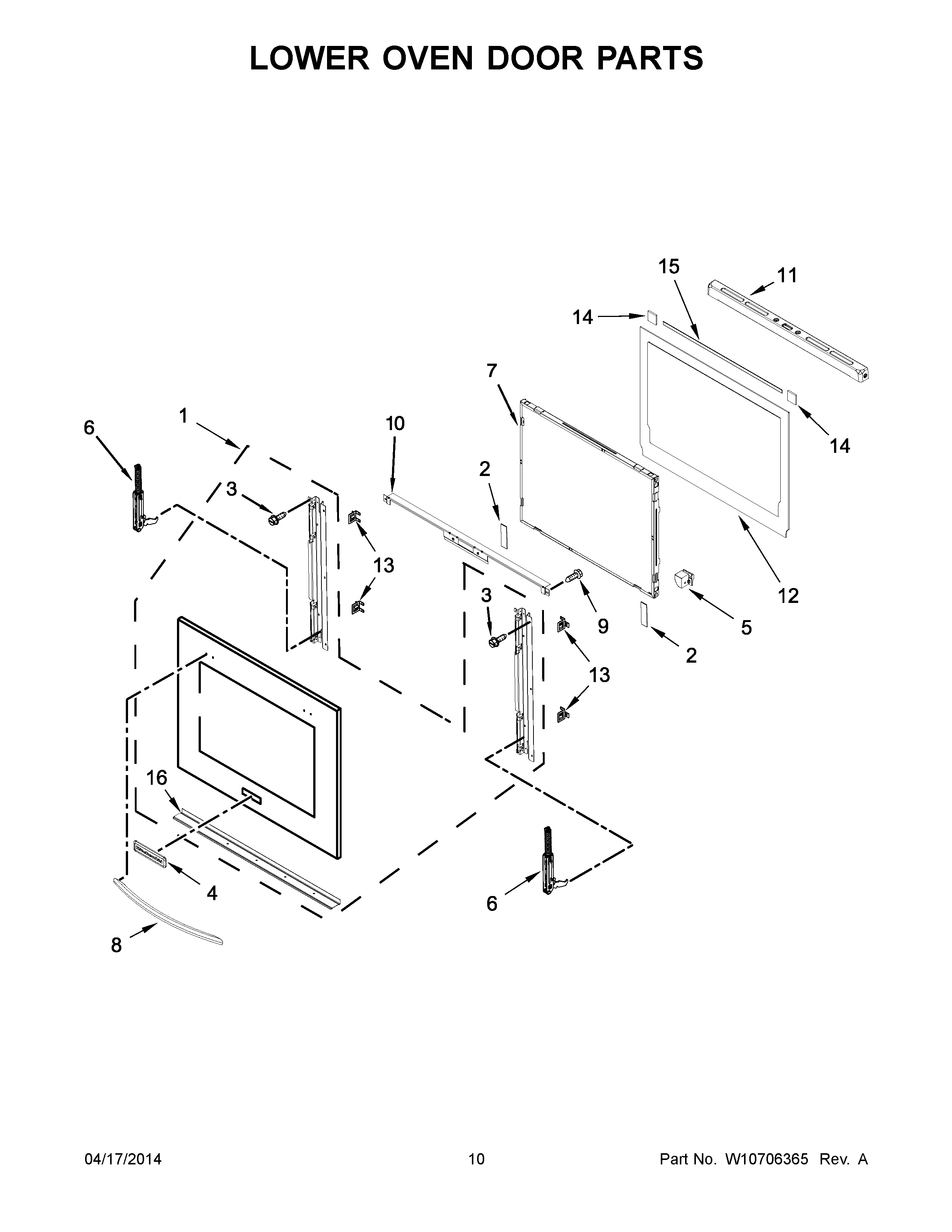

KEBK276BSS01 06 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR GLASS (STAINLESS)
1	ASSEMBLY, DOOR GLASS (BLACK)
2	W10840861 Whirlpool Spacer
3	SCREW
4	WPW10243391 Whirlpool Refrigerator Nameplate
4	WPW10243392 Whirlpool Dishwasher Nameplate
5	WPW10581826 Whirlpool Support Bracket
5	BRACKET, DOOR (LEFT)
6	W11642291 Whirlpool Door Hinge
7	ASSEMBLY, WINDOW PACK
8	WPW10437675 Whirlpool Door Handle
8	W10284919 Whirlpool Handle Door
9	SCREW (BLACK)
10	W10459352 Whirlpool Glass Bracket
11	VENT, DOOR TOP
12	WPW10335921 Whirlpool Glass Frame
13	WPW10549747 Whirlpool Clip
14	WPW10517428 Whirlpool Spacer
15	PAD, VENT
16	BRACKET, LOWER DOOR
