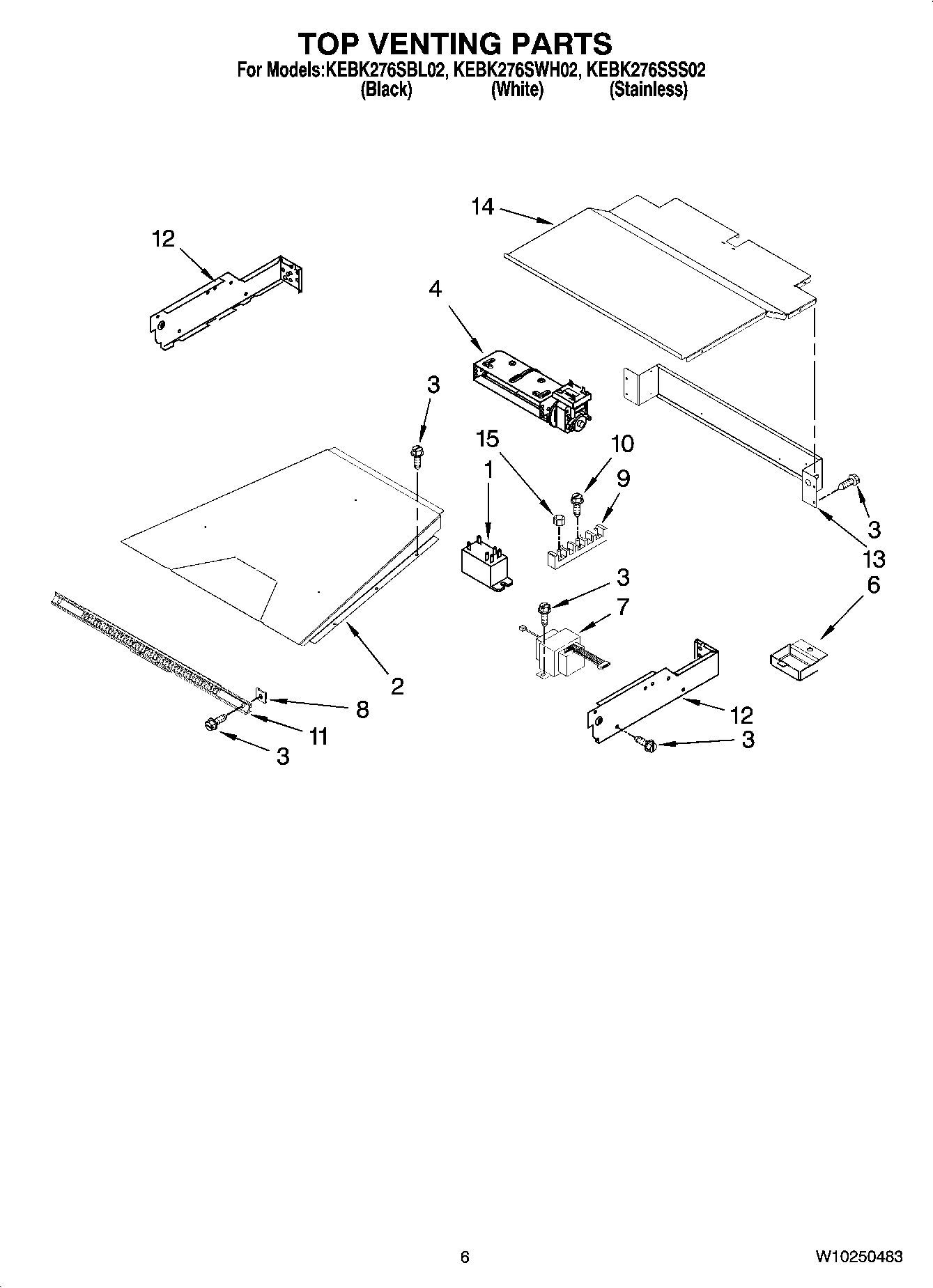

KEBK276SBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

KEBK276SBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KEBK276SBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP261869 Whirlpool Microwave Paint
WPL 591014
Miscellaneous
261900 Whirlpool Microwave Spray
Harness, Wire (Main)
Conduit, Double
WPW10171562 Whirlpool Wire Harness
ADHESIVE
WIRING HARNESS PARTS
W10231531 Whirlpool Wire Harness
WP4448950 Whirlpool Screw
8528351 Whirlpool Clip
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
72017 Whirlpool Appliance Touch-Up Paint White
4450800 Whirlpool Oven Screw
1WP9752759 Whirlpool Relay
2Duct, Air Outlet
3WP4449809 Whirlpool Screw
4WP8303972 Whirlpool Blower
68285593 Whirlpool Oven Wire Cover
7WPW10111628 Whirlpool Transformer
8WP4450118 Whirlpool Nut
9WP8203546 Whirlpool Terminal Block
10Screw
11Vent, Control Panel
12Side, Control Top (Left)
12Side, Control Top (Right)
13Back, Control
14Cover, Top
15Nut
