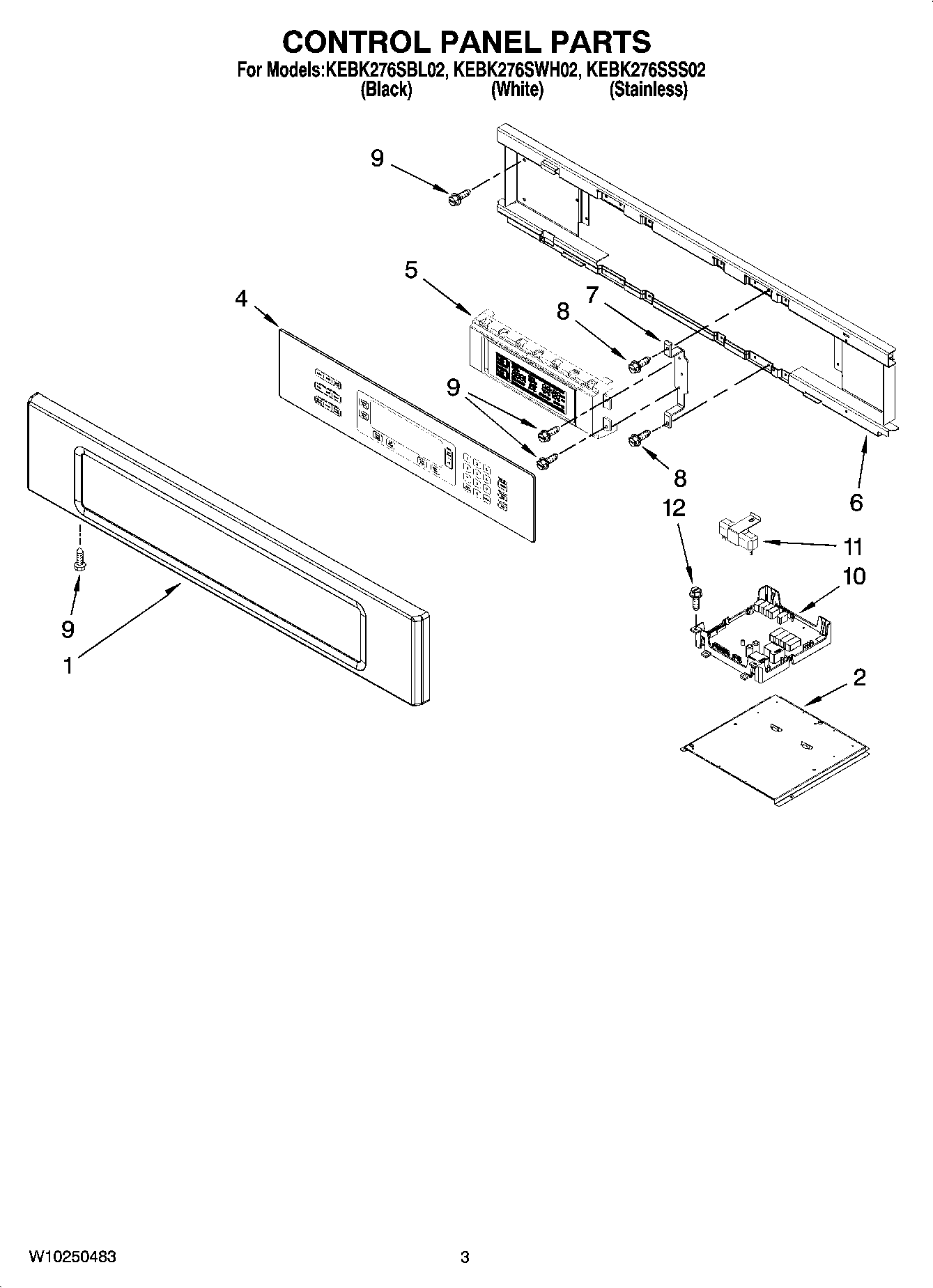

KEBK276SWH02 02 – CONTROL PANEL PARTS
Written by
in
KEBK276SWH02 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Panel, Control (White)
1
Panel, Control (Stainless)
1
Panel, Control (Black)
2
Support Appliance Manager
4
Control Panel, Glass Touch
5
User Inferface
6
Backer, Control
7
Bracket,Enclosure
8
WP4449154 Whirlpool Screw
9
WP3400832 Whirlpool Screw
10
Appliance Manager
11
Resistor, Drop
12
WP4449809 Whirlpool Screw
←
