KEBN100YBL0 03 – OVEN

KEBN100YBL0 03 – OVEN

Written by

in

KEBN100YBL0 03 – OVEN

Products

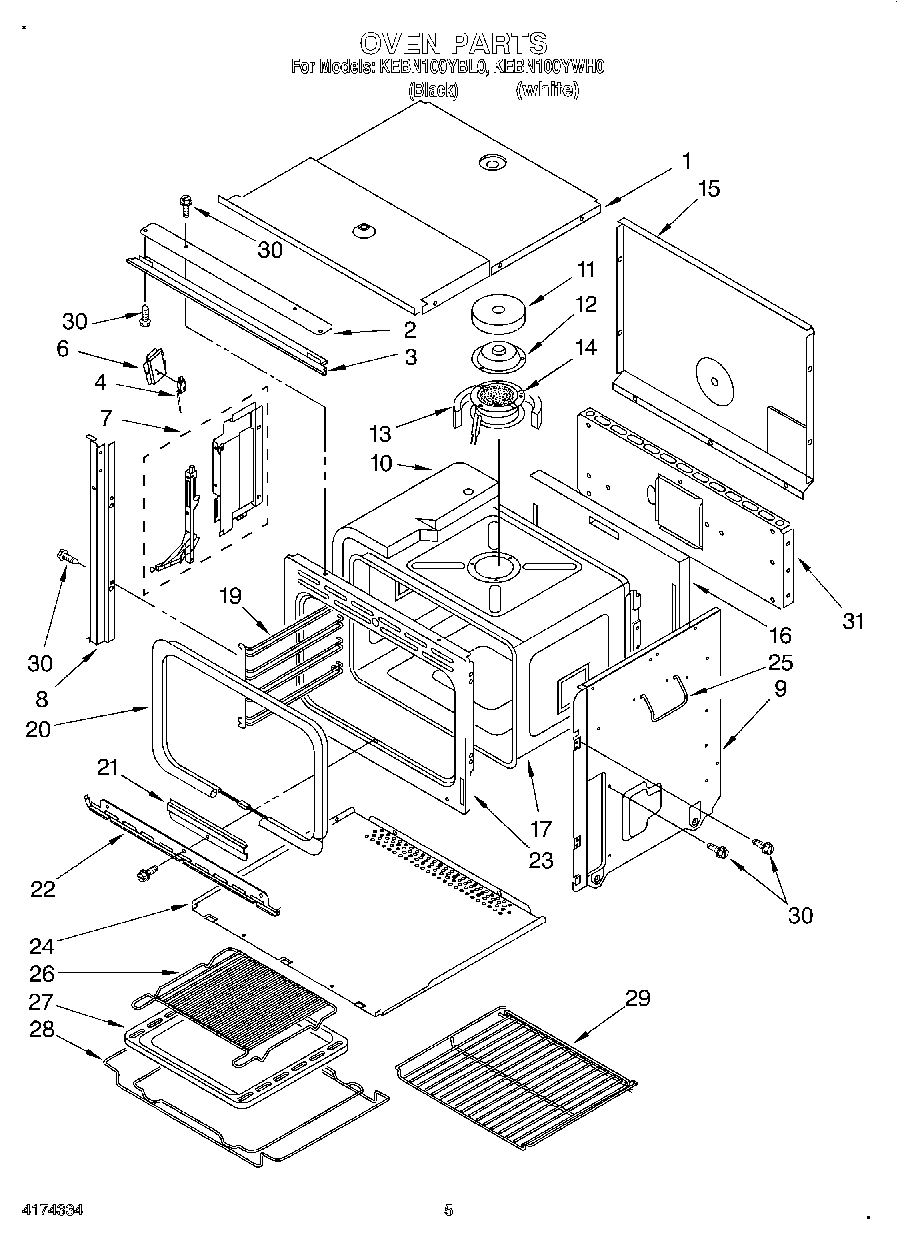

Position	Product
1	Cover, Up
2	Trim, Supporting
3	Trim, Partition (Black Model)
3	Trim, Partition (White Model)
4	Microswitch, Hinge
6	Support, Microswitch
7	Hinge (Right)
7	Hinge (Left)
8	Support (Right)
8	Support (Left)
9	Cover, Side (Left)
9	Cover, Side (Right)
10	Insulation, Liner
11	Insulation, Catalyst
12	Cover, Catalyst
13	Insulation, Catalyst
14	Catalyst
15	Cover, Rear
16	Insulation, Back
17	Cavity (KEBN100Y Models)
19	Guide, Rack
20	Seal, Front Frame
21	Cover, Seal
22	Down Cross-Bar
23	Front Frame
24	Cover, Bottom
25	Handle, Carry
26	Rack, Roasting
27	Pan
28	Rack, Supporting
29	Rack, Flat
30	Screw
31	Liner Cover, Rear
