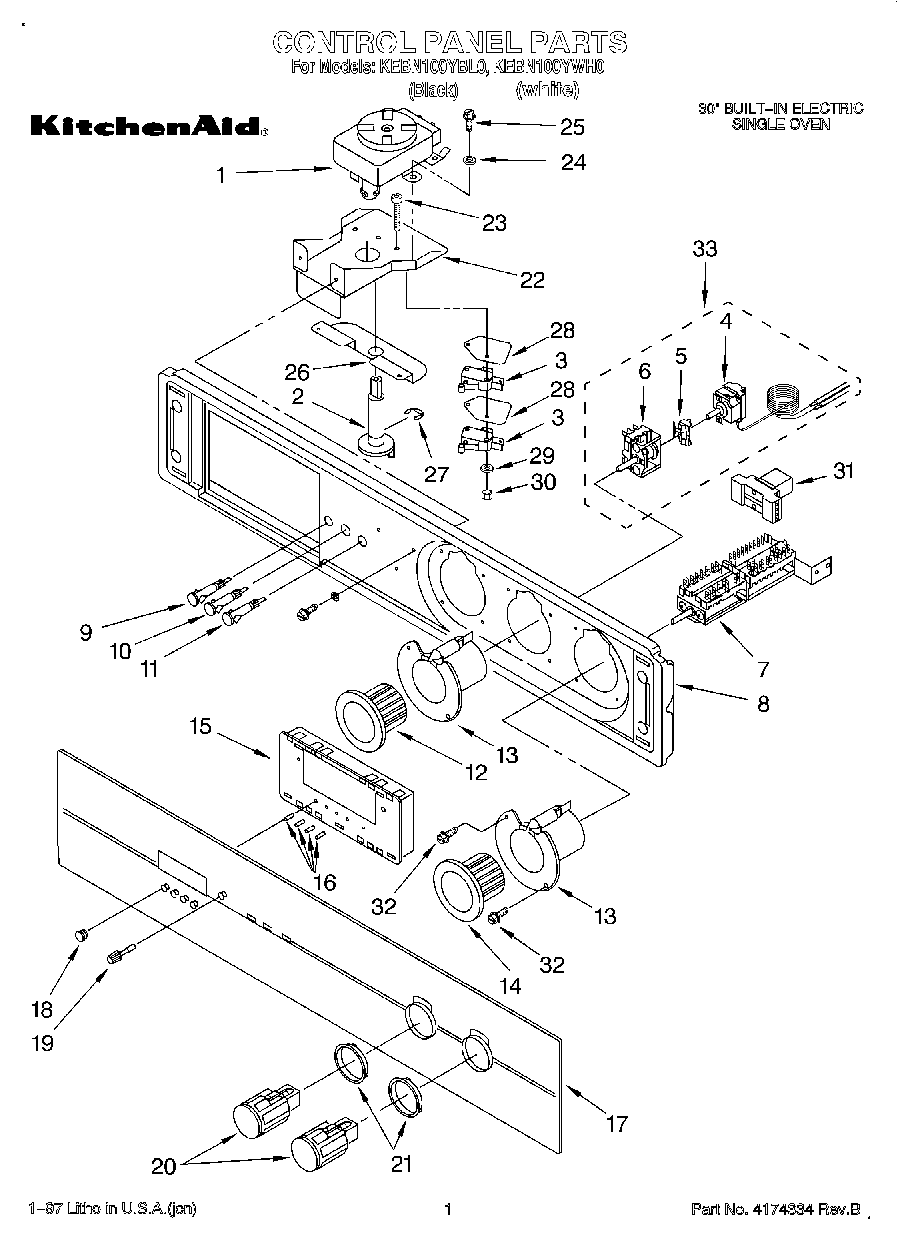

KEBN100YWH0 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Use & Care Guide
	Installation Instructions
	Wiring Diagram (Model KEBN100Y)
	Guide, Quickset
1	Motor, Door Latch
2	Shaft, Door Locking
3	Microswitch
5	Bracket
6	Switch, Control
7	Switch, Main Control
8	Support, Components
9	Lamp, Red Pilot
10	Lamp, White Pilot
11	Lamp, Orange Pilot
12	Disc, Thermostat (Black Model)
12	Disc, Thermostat (White Model)
13	Knob Lighter
14	Disc, Switch (KEBN100YWH Model)
14	Disc, Switch (KEBN100YBL Model)
15	Timer, Electronic
16	Rods
17	Glass, Control Panel (KEBN100YBL Model)
17	Glass, Control Panel (KEBN100YWH Model)
18	Button, Push (4) (Black Model)
18	Button, Push (4) (White Model)
19	Knob, Generator (Black Model)
19	Knob, Generator (White Model)
20	Knob (White Model)
20	Knob (Black Model)
21	Ring, Glass Hole
22	Bracket, Motor
23	Screw
24	Washer
25	Screw
26	Bracket, Motor
27	Spring
28	Shield, Latch
29	Washer
30	Nut
31	Relay
32	Screw
33	Thermostat, Assembly
