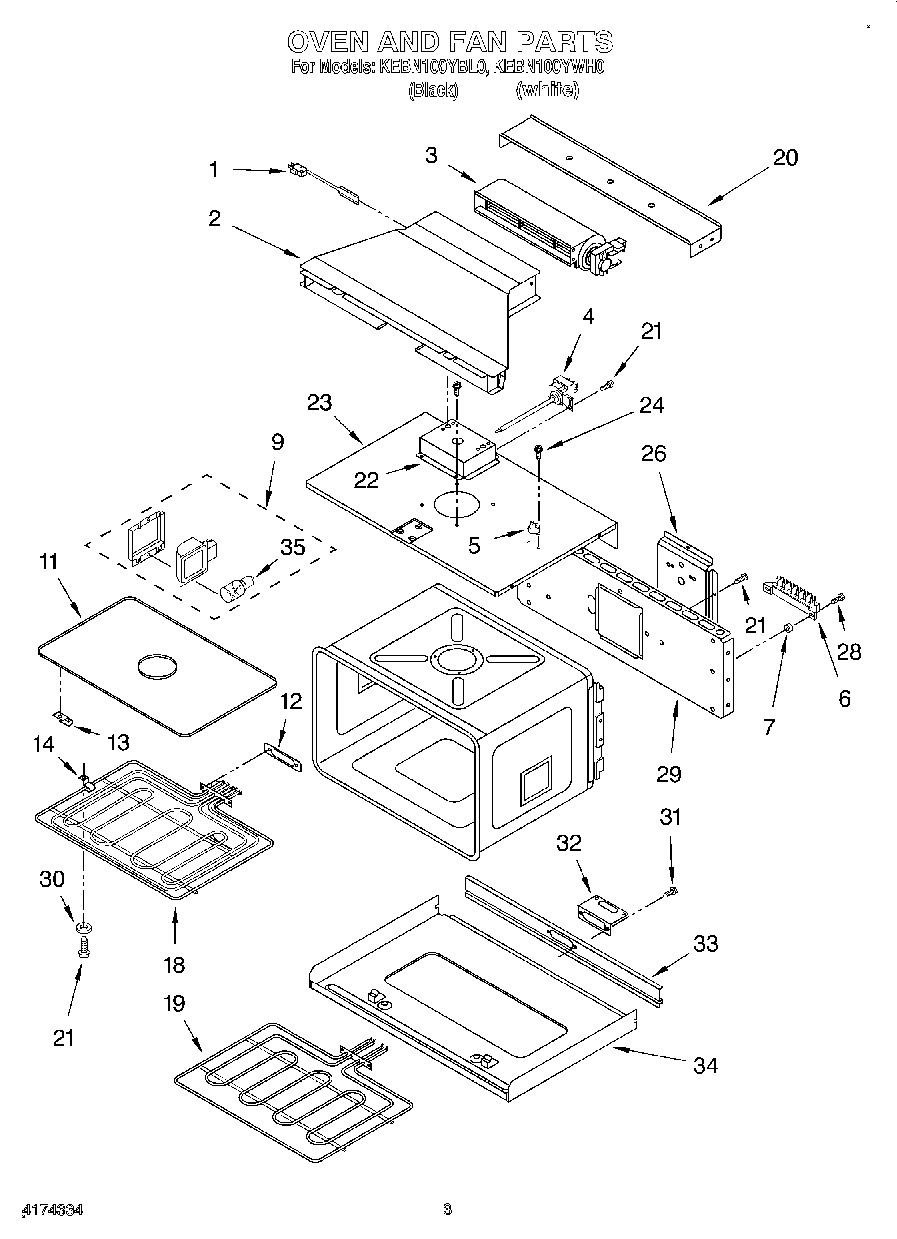

KEBN100YWH0 02 – OVEN AND FAN

Products

Position	Product
1	Microswitch
2	Channel, Cooling
3	Fan, Cooling
4	Thermostat, Fixed
5	Thermostat
6	Terminal Block
7	Spacer
9	Holder, Lamp & Bulb
10	Frame, Light
11	Reflector, Top Elements
12	Seal, Top Element
13	Reflector, Spring Fixing
14	Clamp
18	Element, Top & Broil
19	Element, Down
20	Cover, Fan
21	Screw
22	Support
23	Cover, Cavity
24	Screw
26	Support, Fan
28	Screw
29	Liner Cover, Rear
30	Washer
31	Screw
32	Bracket, Element
33	Trim, Element
34	Support, Element
35	Bulb, Light
