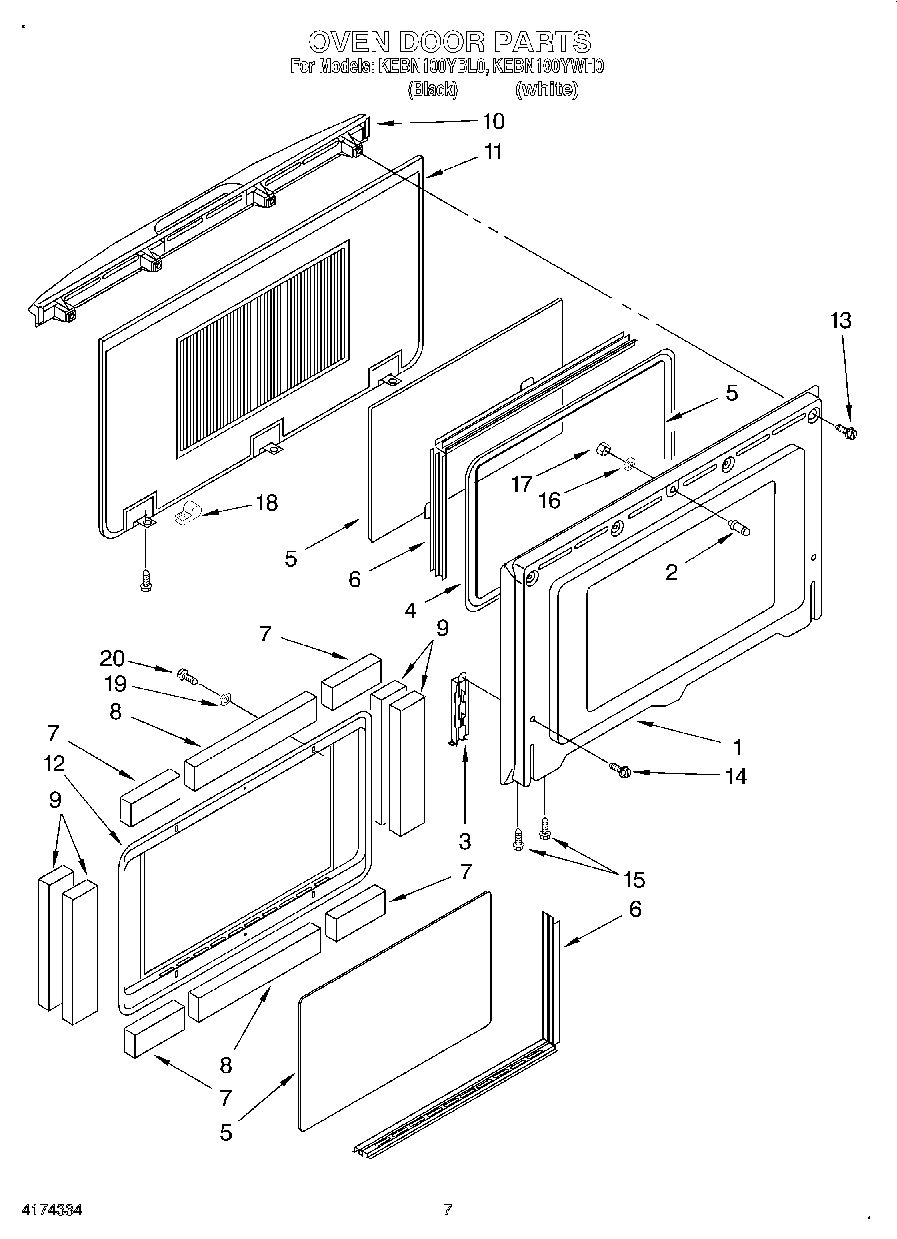

KEBN100YWH0 04 – DOOR

Products

Position	Product
1	Frame, Door
2	Pin, Locking
3	Hinge Slot
4	Seal, Door
5	Glass
6	Spacer, Two-Sides
7	Insulation, Corner
8	Insulation, Center
9	Insulation, Side
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
11	Glass, External (Black Model)
11	Glass, External (White, Model)
12	Reflector
13	Screw
14	Screw
15	Screw
16	Washer
17	Nut
18	Slip, Screw
19	Washer
20	Screw
