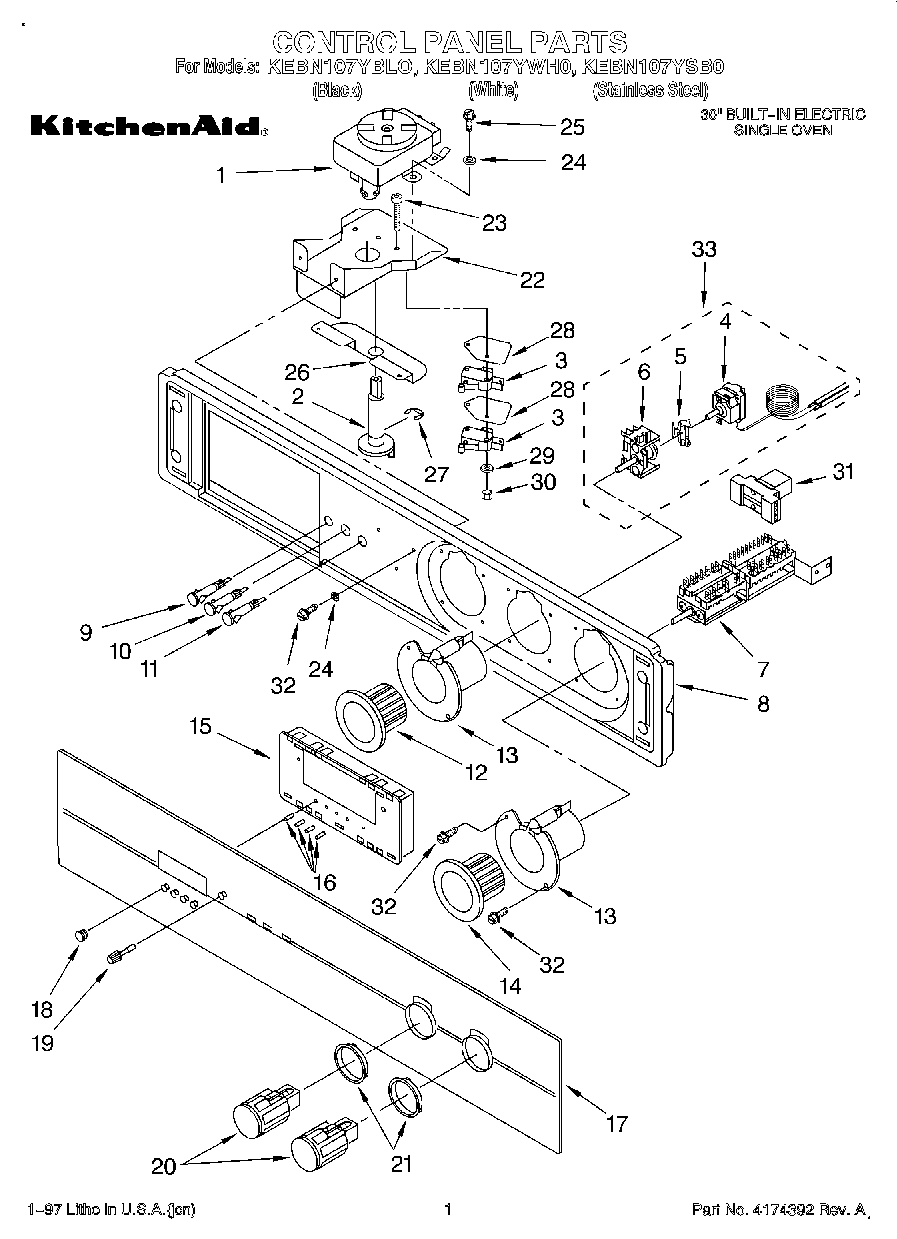

KEBN107YSB0 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Cookbook T/C Oven
	Wiring Diagram
	Use & Care Guide
	Installation Instructions
	Guide, Quickset
1	Motor, Door Latch
2	Shaft, Door Locking
3	Microswitch
4	Thermostat
5	Bracket
6	Switch, Control
7	Switch, Main Control
8	Support, Components
9	Lamp, Red Pilot
10	Lamp, White Pilot
11	Lamp, Orange Pilot
12	Disc, Thermostat (Black Model)
12	Disc, Thermostat (White Model)
13	Knob Lighter
14	Disc, Switch Models
14	KEBN107YWH Model
15	Timer, Electronic
16	Rods
17	Glass, Control Panel (KEBN107YSB Model)
17	Glass, Control Panel (KEBN107YWH Model)
17	Glass, Control Panel (KEBN107YBL Model)
18	Button, Push (4) (White Model)
18	Button, Push (4) (Black Model)
19	Knob, Generator (White Model)
19	Knob, Generator (Black Model)
20	Knob (White Model)
20	Knob (Black Model)
21	Ring, Glass Hole
22	Bracket, Motor
23	Screw
24	Washer
25	Screw
26	Bracket, Motor
27	Spring
28	Shield, Latch
29	Washer
30	Nut
31	Relay
32	Screw
33	Thermostat, Assembly
